Product Description:

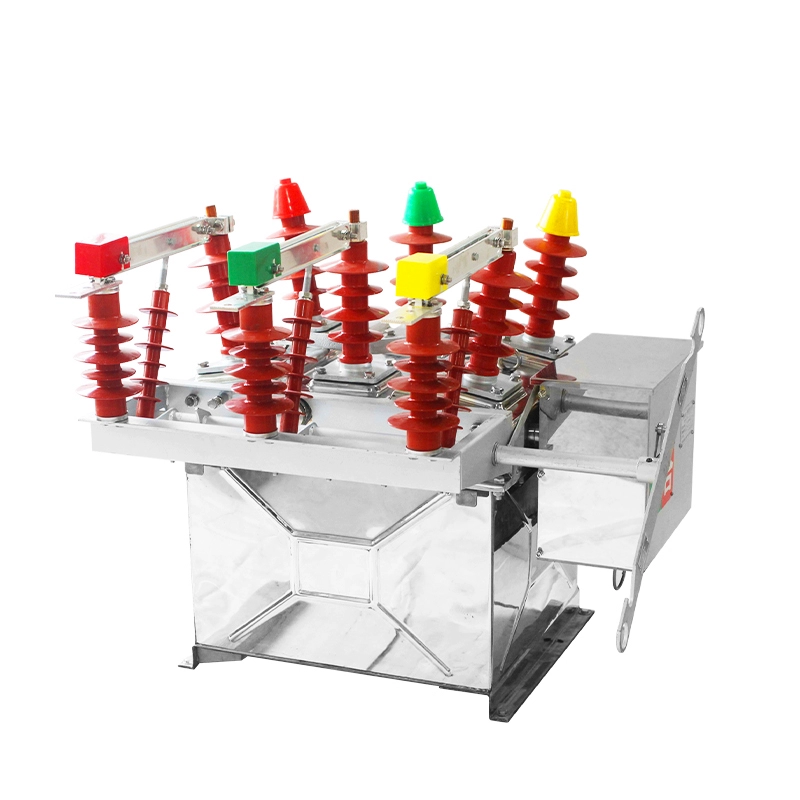

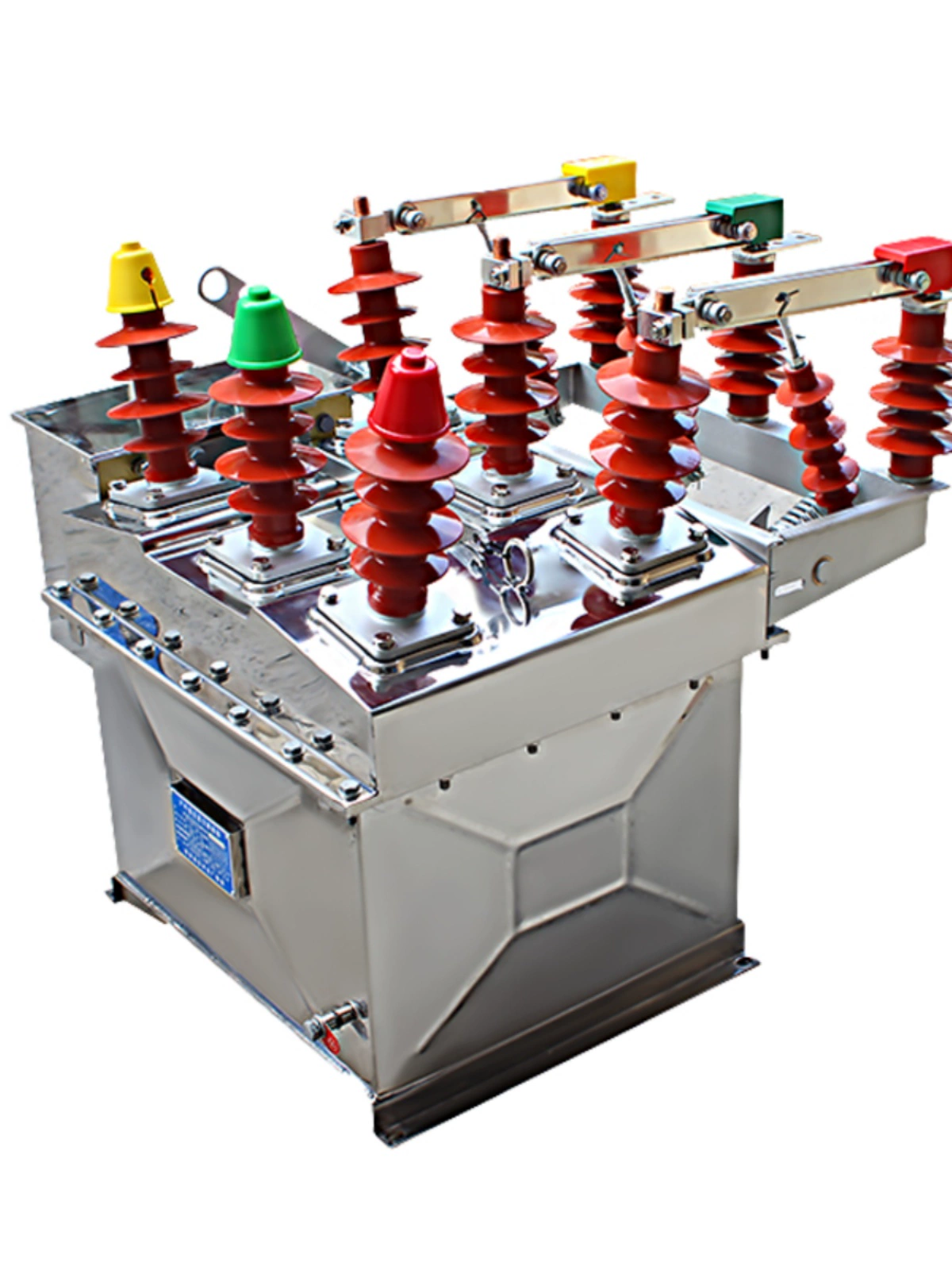

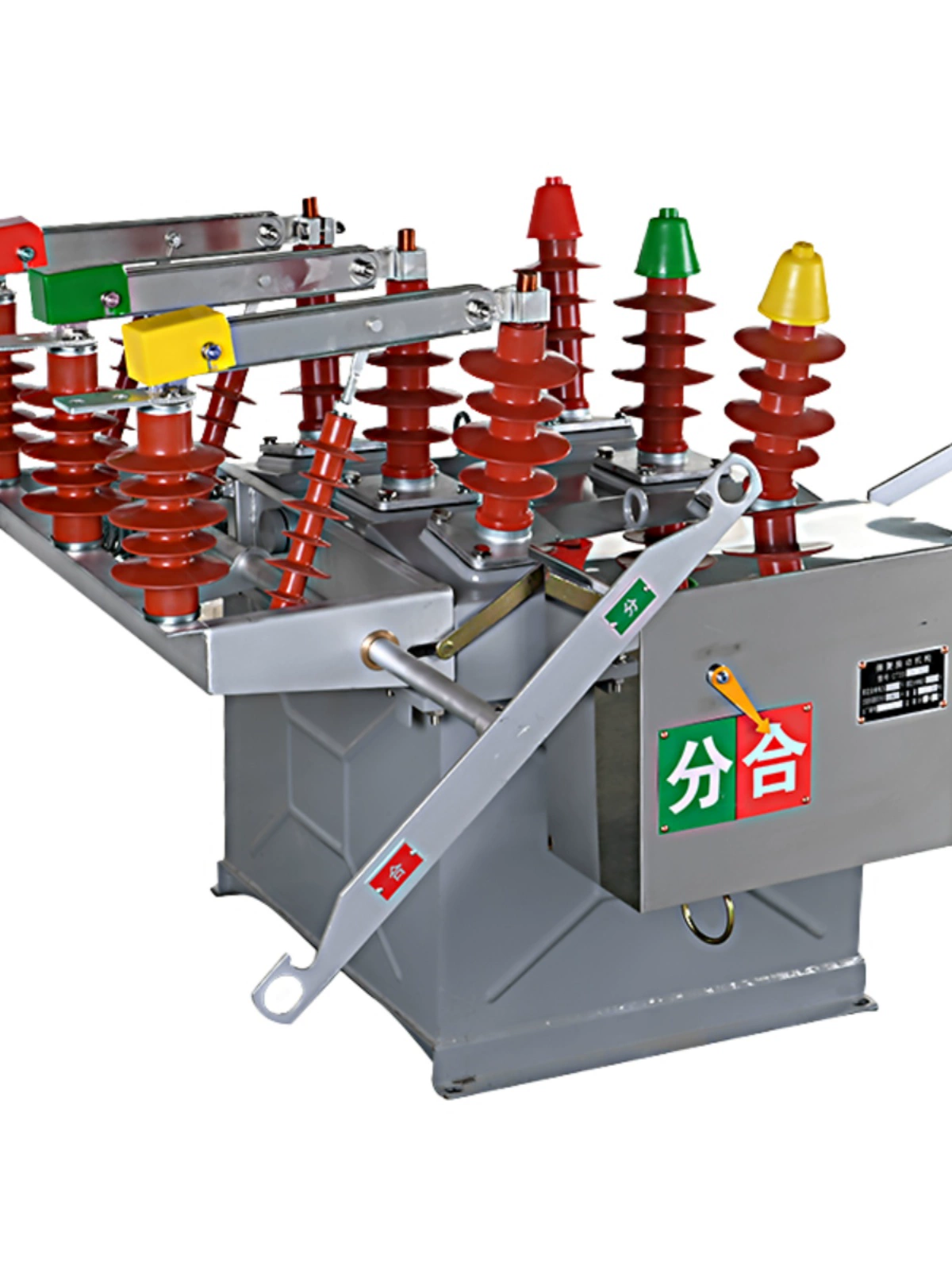

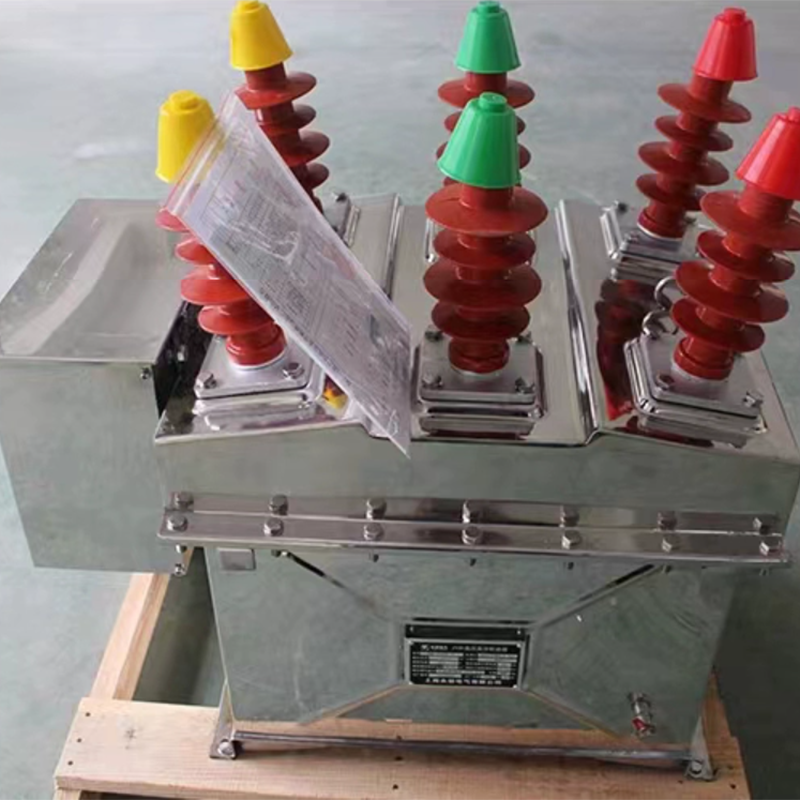

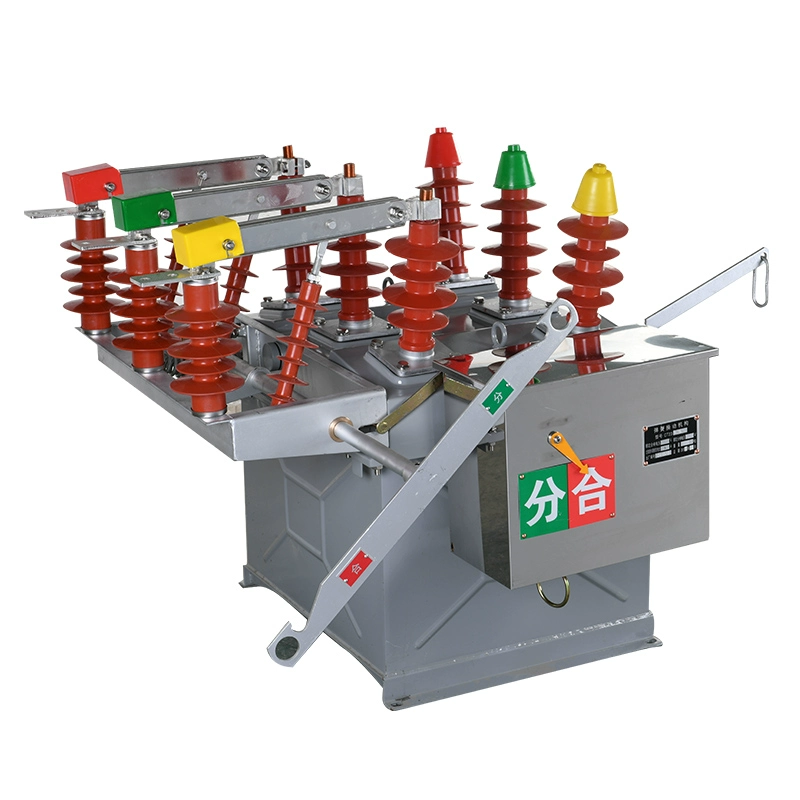

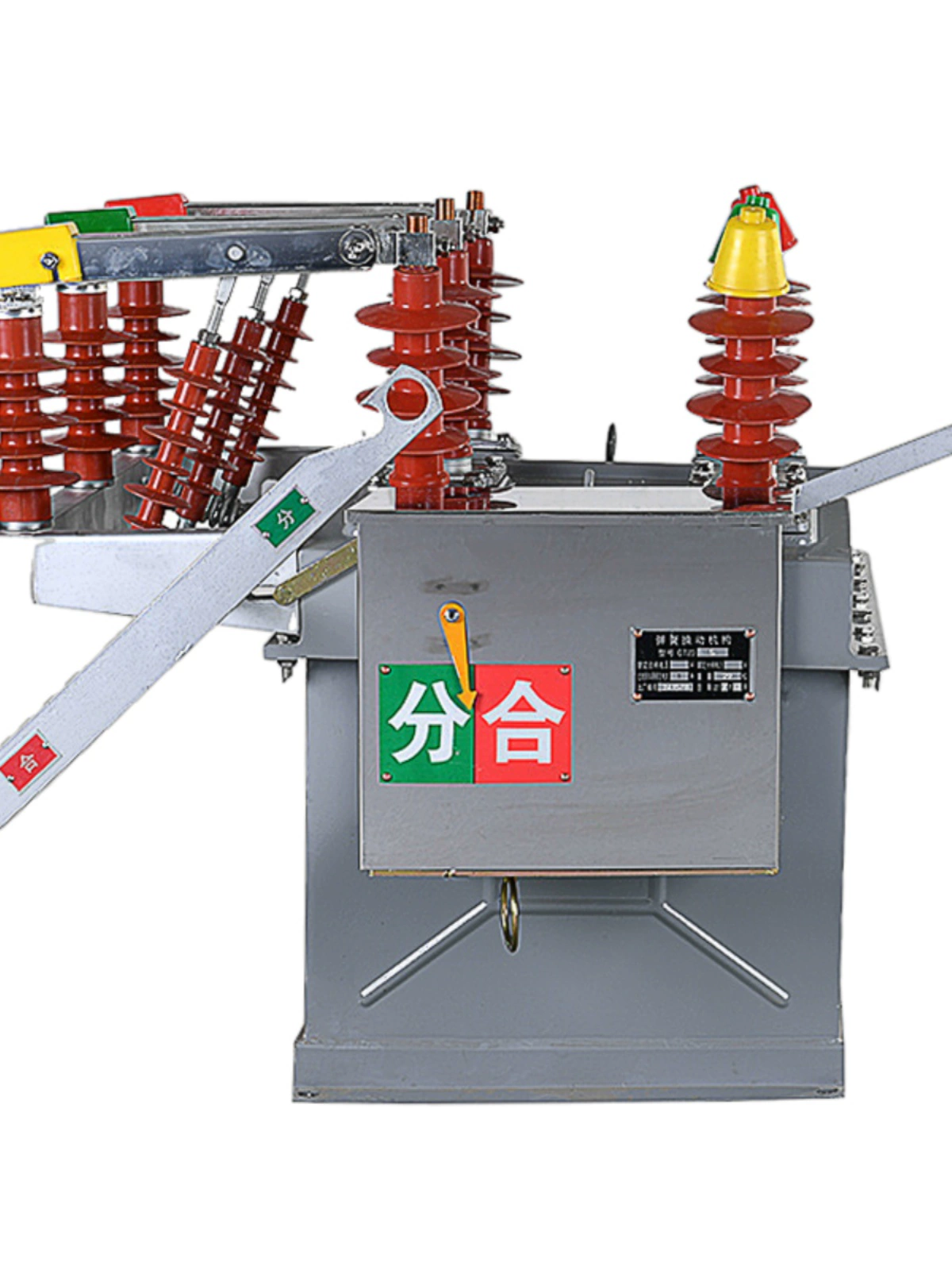

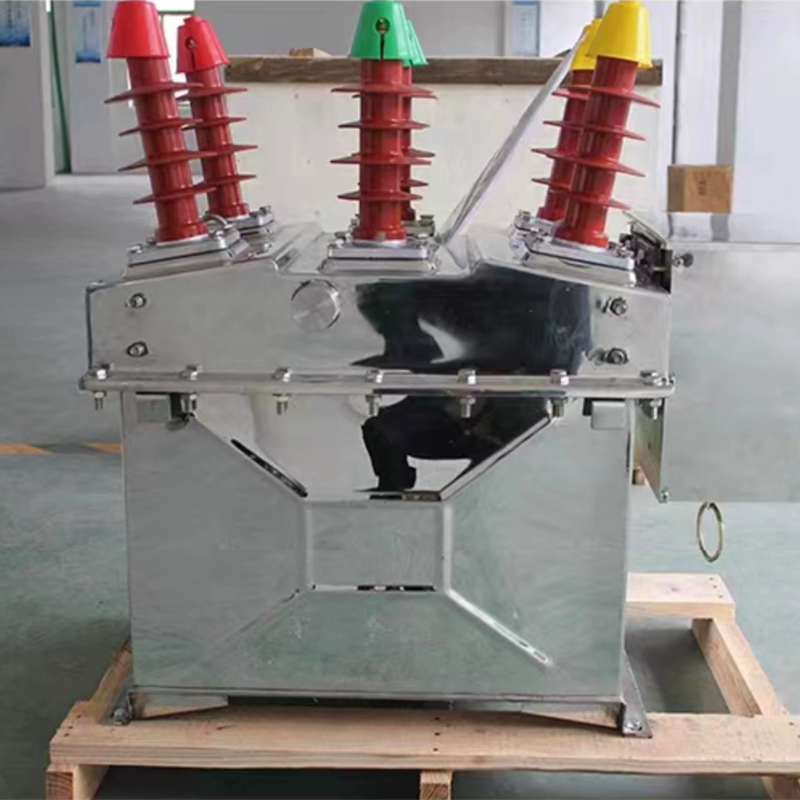

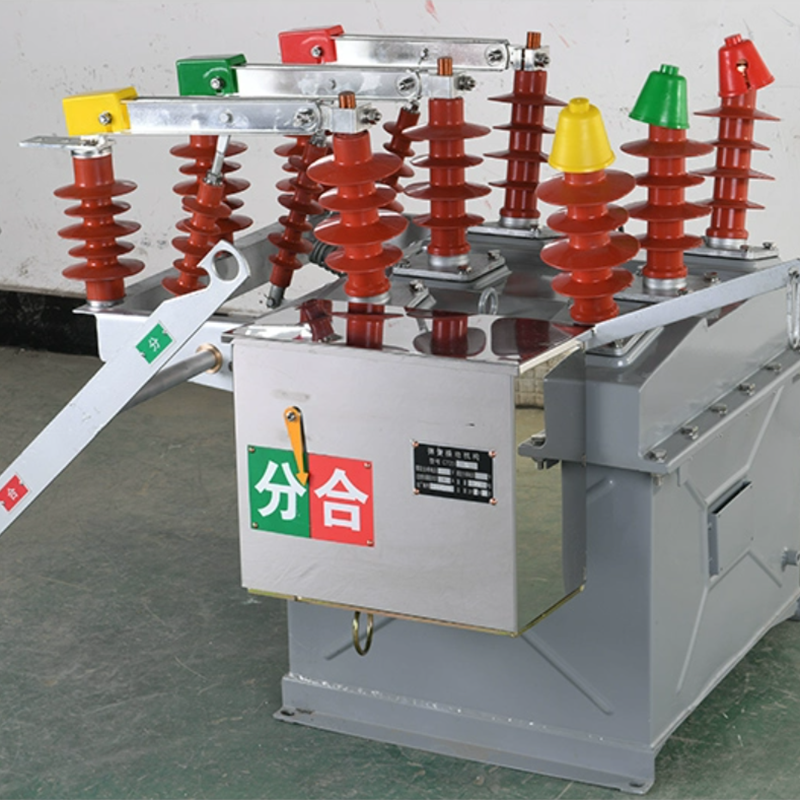

ZW8-12 electronic PT type outdoor high-voltage vacuum circuit breaker is used in the three-phase power system with AC 50Hz and voltage 10~12kV. It is used for segmenting and closing load current. Control, over-current and quick-break protection functions, can store energy and switch on and off multiple times in the case of 10kV power failure, realize local remote control and remote wired control and distribution network automation. It can also be used as a scattered point switch for incoming and outgoing lines in the station and non-power supply outside the station to realize ring network power supply. It is a functional switch integrating power protection control and communication.

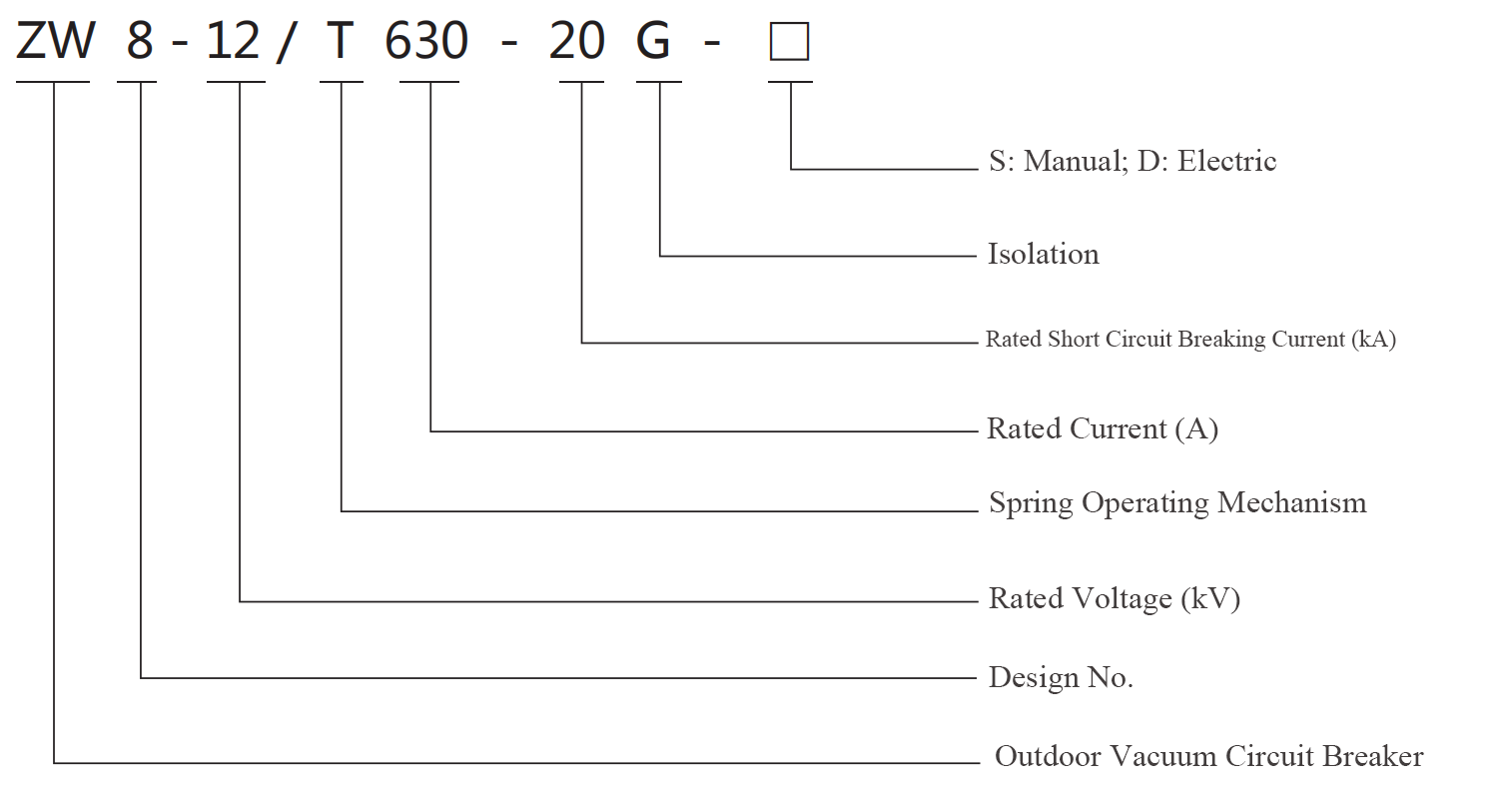

Item Meaning:

Application Condition:

• Ambient Air Temperature: -15℃~+40℃ / +5℉~+104℉ (Allow storage and transportation at -30℃/-22℉）
• Relative Humidity: daily average≤95%；monthly average≤90%
• Altitude: ≤1000m
• Earthquake Intensity: ≤8 degree
• Wind Speed: ≤34m/s (equal to 700Pa)
• Installation Environment: no explosion hazard, no chemicals, no strenuous vibration
• Notice: please contact us if the application environment is beyond above range.

Main Technical Parameters:

Ordering Instruction:

1.Circuit breaker name, model and order quantity;

2.The rated current and rated short-circuit breaking current of the circuit breaker;

3.The model, name, operating voltage and release type of the equipped operating mechanism;

4.Quantity of operating vehicles and other spare parts and spare parts;

5.If the user has other special requirements, please negotiate when ordering.
