ZW20-12F Outdoor Intelligent High Voltage Boundary Vacuum Circuit Breaker
ZW20-12F Outdoor Intelligent High Voltage Boundary Vacuum Circuit Breaker
ZW20-12F Outdoor Intelligent High Voltage Boundary Vacuum Circuit Breaker
ZW20-12F Outdoor Intelligent High Voltage Boundary Vacuum Circuit Breaker
ZW20-12F Outdoor Intelligent High Voltage Boundary Vacuum Circuit Breaker
ZW20-12F Outdoor Intelligent High Voltage Boundary Vacuum Circuit Breaker
ZW20-12F Outdoor Intelligent High Voltage Boundary Vacuum Circuit Breaker
ZW20-12F Outdoor Intelligent High Voltage Boundary Vacuum Circuit Breaker
ZW20-12F Outdoor Intelligent High Voltage Boundary Vacuum Circuit Breaker
ZW20-12F Outdoor Intelligent High Voltage Boundary Vacuum Circuit Breaker

  • Ambient Air Temperature: -40℃~+40℃ / -40℉~+104℉
  • Relative Humidity: daily average≤95%;monthly average≤90%
  • Wind Pressure: ≤700Pa (equal to wind speed 34m/s)
  • Altitude: ≤2000m
  • Pollution Level: Ⅳ
  • Earthquake Intensity: ≤8 degree
  • Maximum Diurnal Temperature Difference: ≤25℃ / 77℉
  • Installation Environment: no explosion and flammable hazard, no chemicals, no strenuous vibration
  • Notice: please contact us if the application environment is beyond above range.
sales@byyouele.com Inquiry Now
Product Introduction

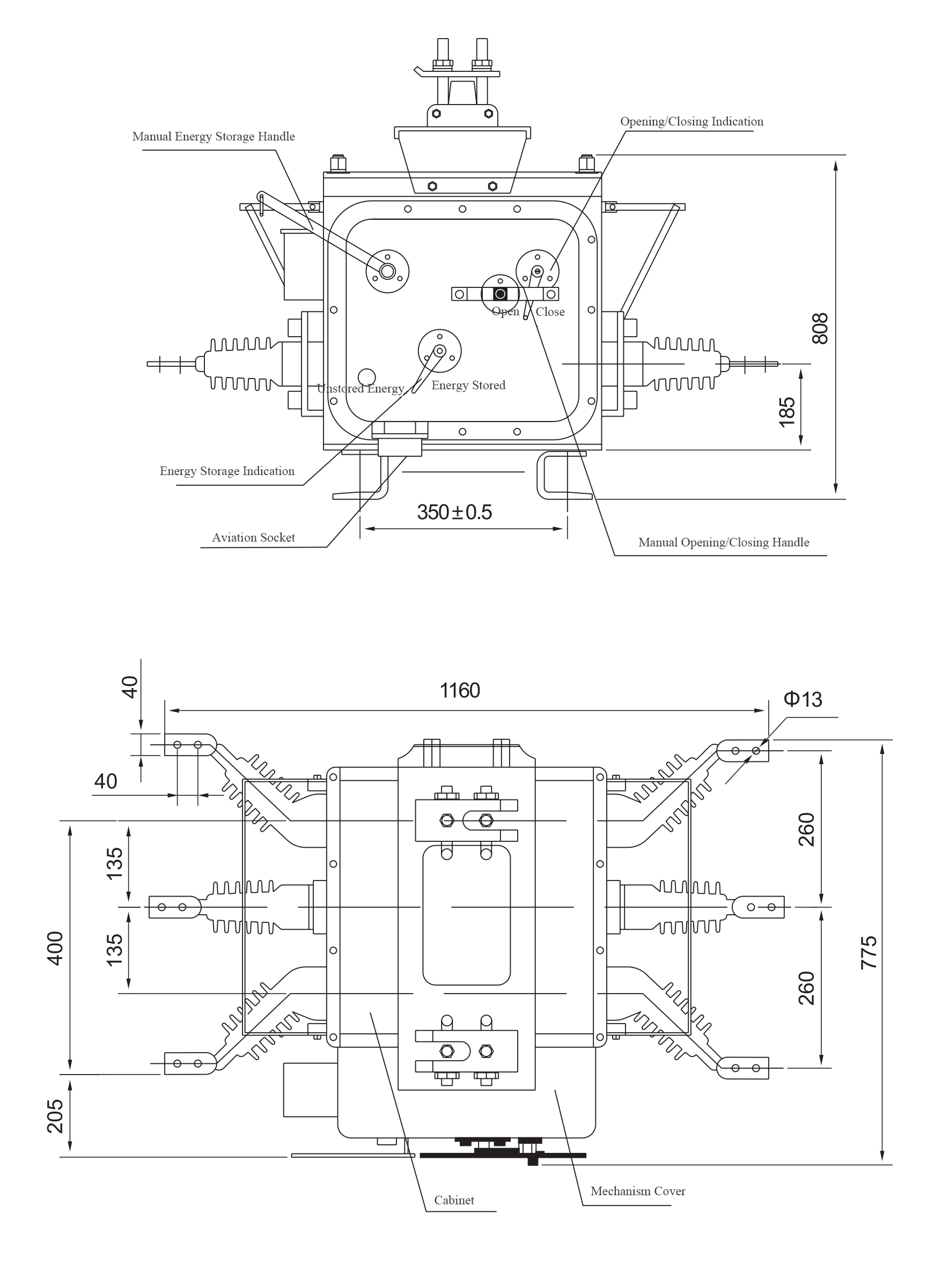

Drawing And Size

Product Description:

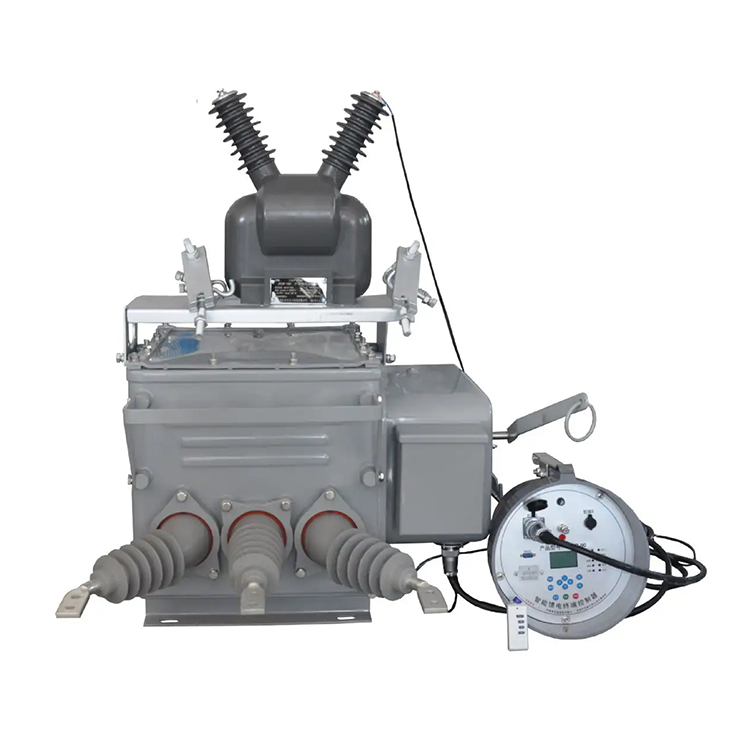

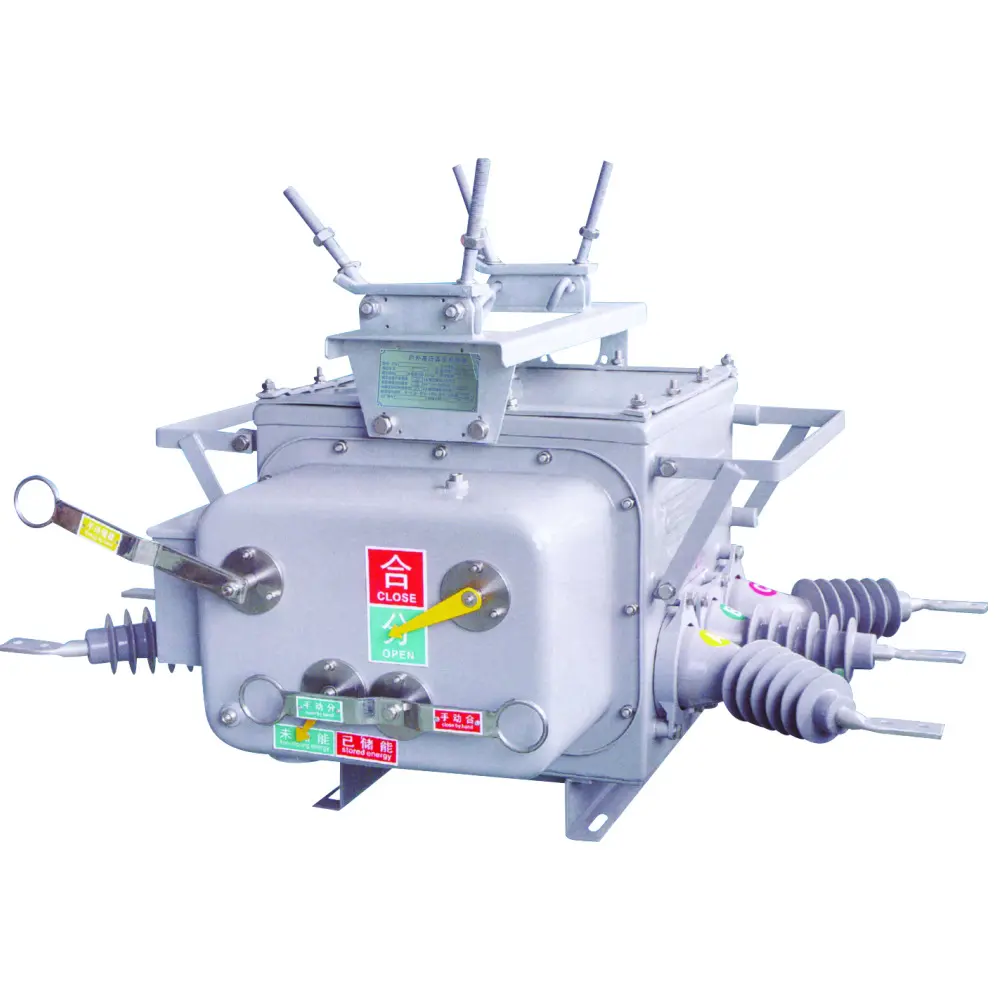

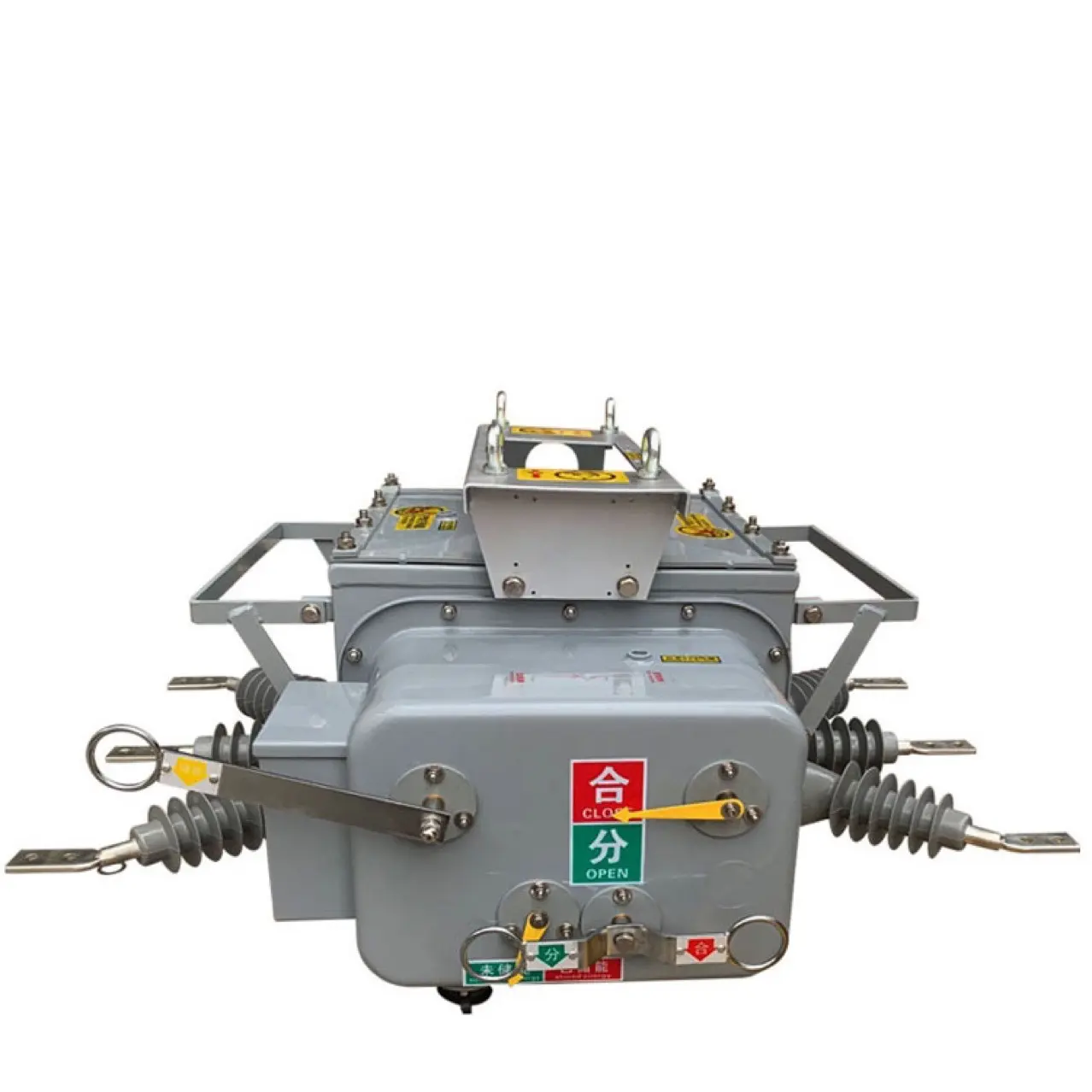

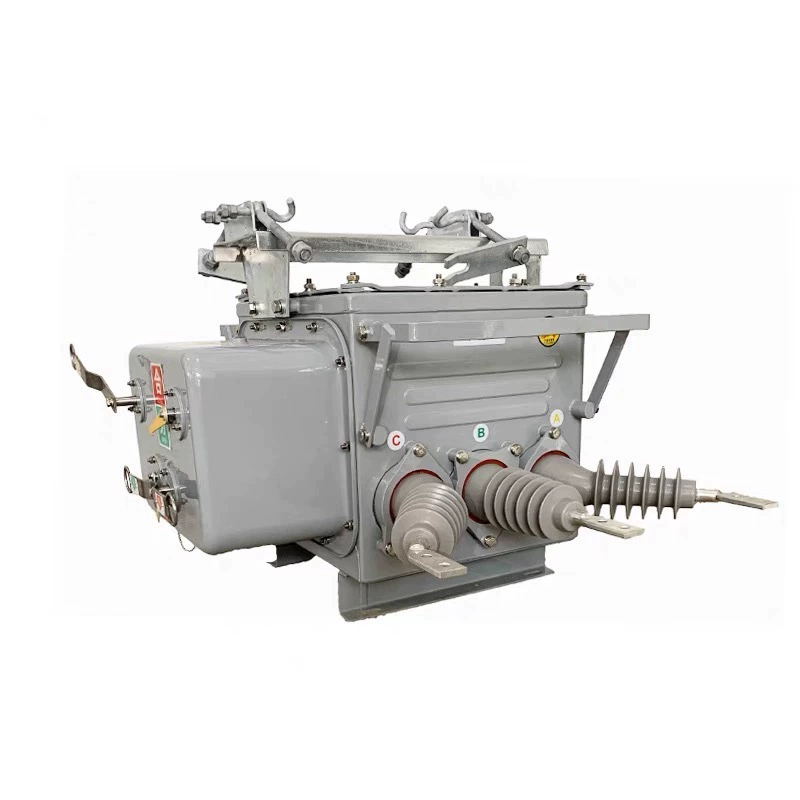

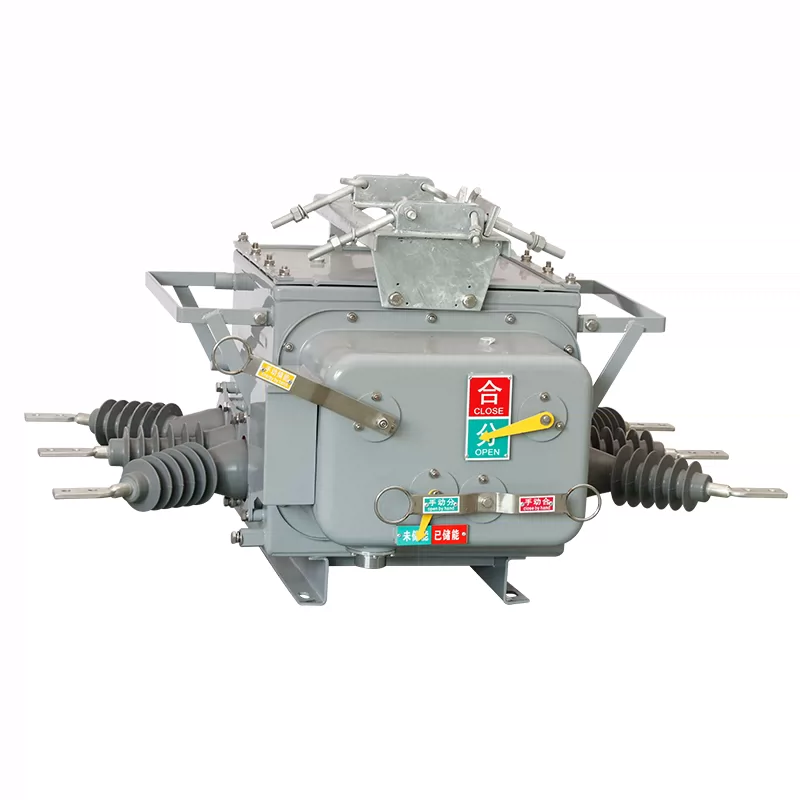

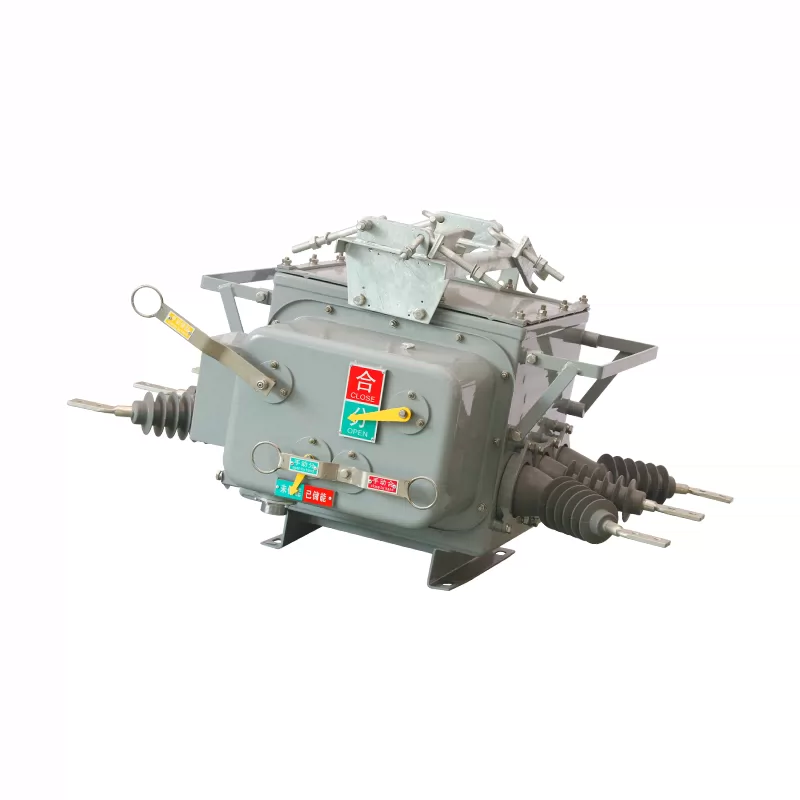

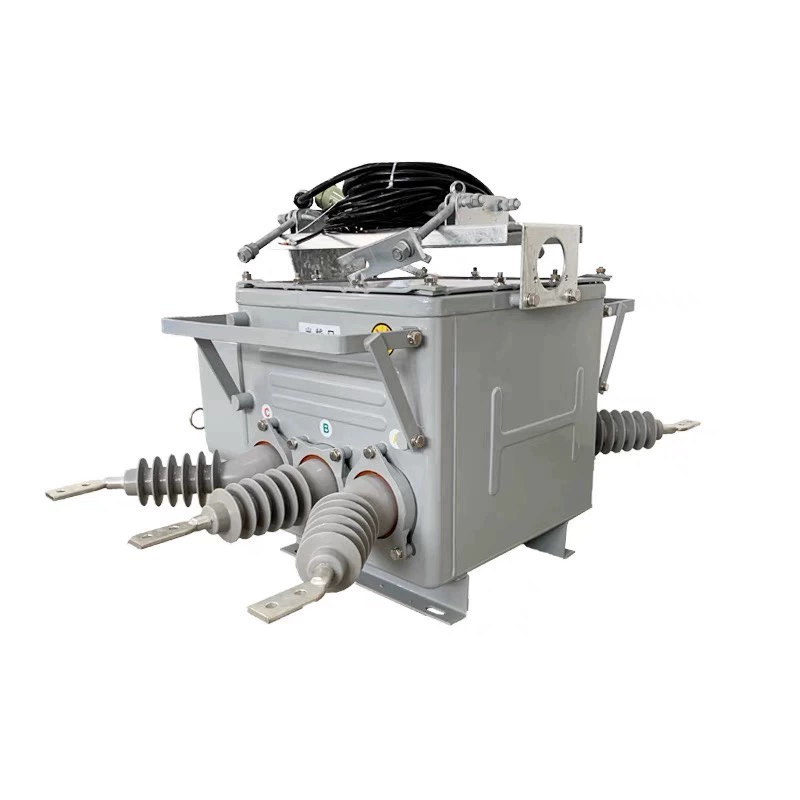

ZW20-12F outdoor high-voltage intelligent boundary vacuum circuit breaker is an outdoor high-voltage switchgear with a rated voltage of 12kV and three-phase AC 50Hz. It is mainly used to break and close the load current, overload current and short-circuit current of the power system. It is suitable for the protection and control of substations, industrial and mining enterprises, and urban and rural distribution networks, especially for places with frequent operations and urban automatic distribution networks.

This product is matched with the controller, which can meet the requirements of the distribution automation system, and can reliably and effectively complete the traditional recloser function. It adopts a mature box-type sealing structure, and the inside is filled with SF6 gas, which has good sealing performance and prevents it from being affected by the external environment. It is a maintenance-free product. Its spring operating mechanism adopts direct chain main drive and multi-stage tripping system, which has high operation reliability and is a good product for pole-mounted circuit breakers.

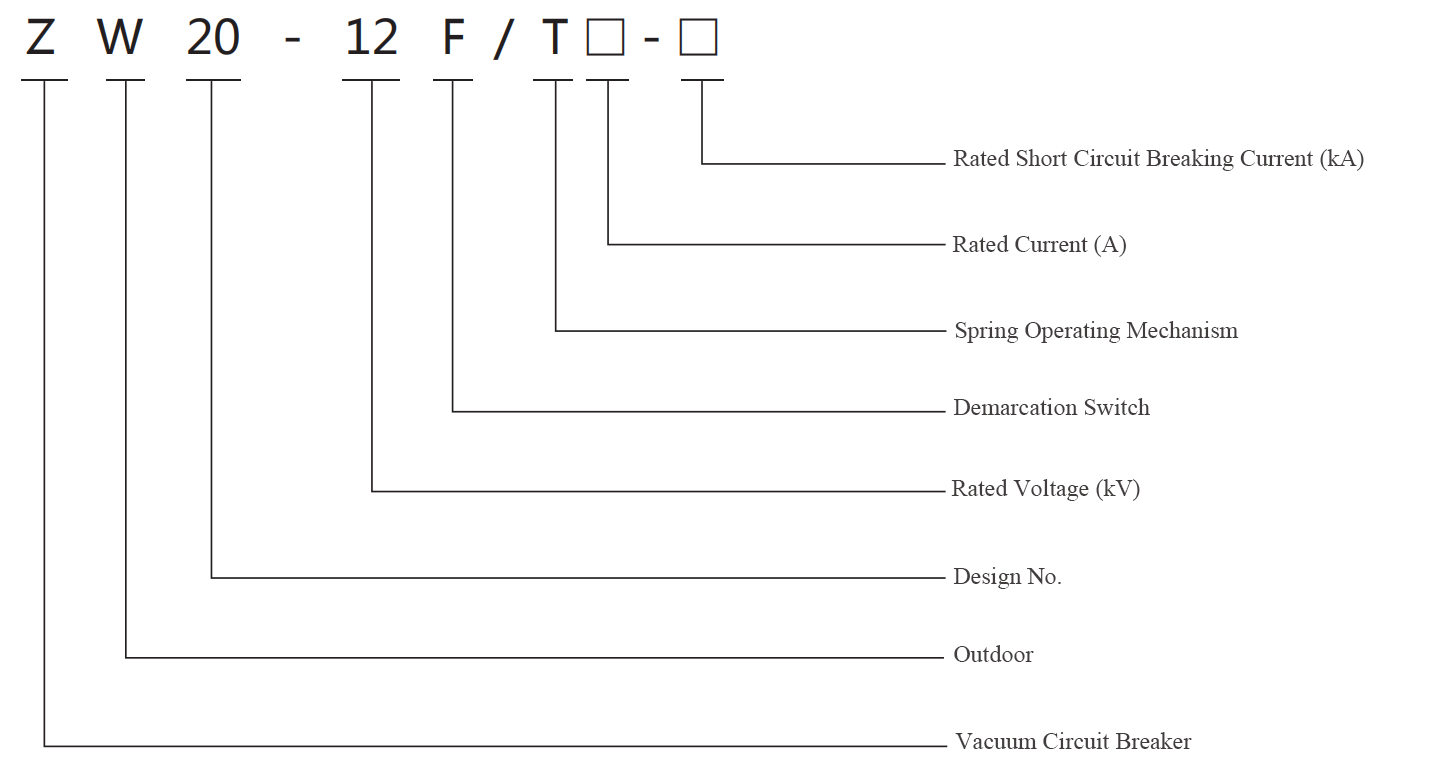

Item Meaning:

Application Condition:

  • Ambient Air Temperature: -40℃~+40℃ / -40℉~+104℉
  • Relative Humidity: daily average≤95%;monthly average≤90%
  • Wind Pressure: ≤700Pa (equal to wind speed 34m/s)
  • Altitude: ≤2000m
  • Pollution Level: Ⅳ
  • Earthquake Intensity: ≤8 degree
  • Maximum Diurnal Temperature Difference: ≤25℃ / 77℉
  • Installation Environment: no explosion and flammable hazard, no chemicals, no strenuous vibration
  • Notice: please contact us if the application environment is beyond above range.

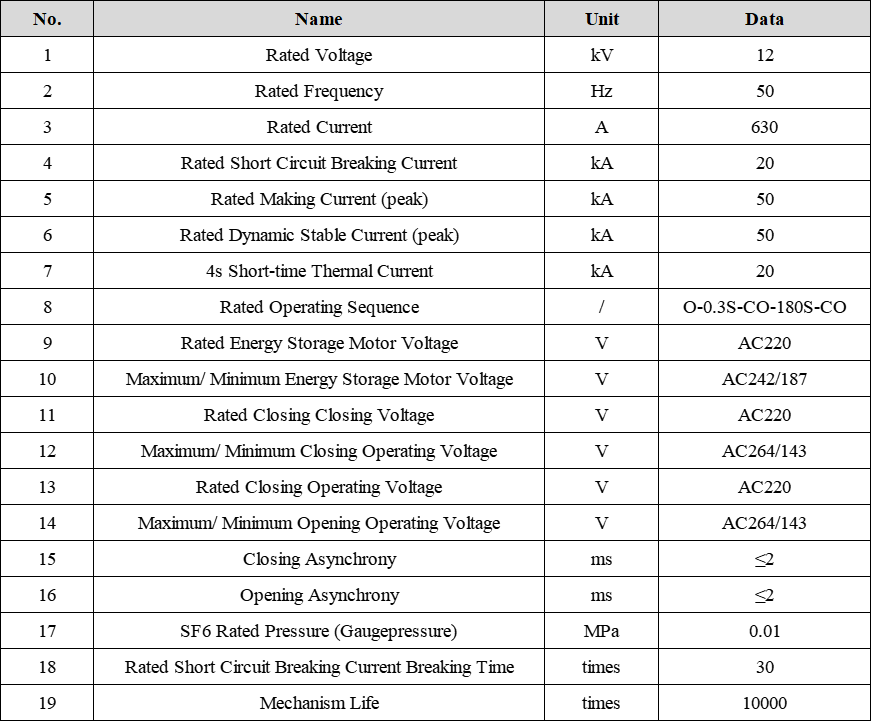

Main Technical Parameters:



Ordering Instruction:

1.Circuit breaker name, model and order quantity;

2.The rated current and rated short-circuit breaking current of the circuit breaker;

3.The model, name, operating voltage and release type of the equipped operating mechanism;

4.Quantity of operating vehicles and other spare parts and spare parts;

5.If the user has other special requirements, please negotiate when ordering.
