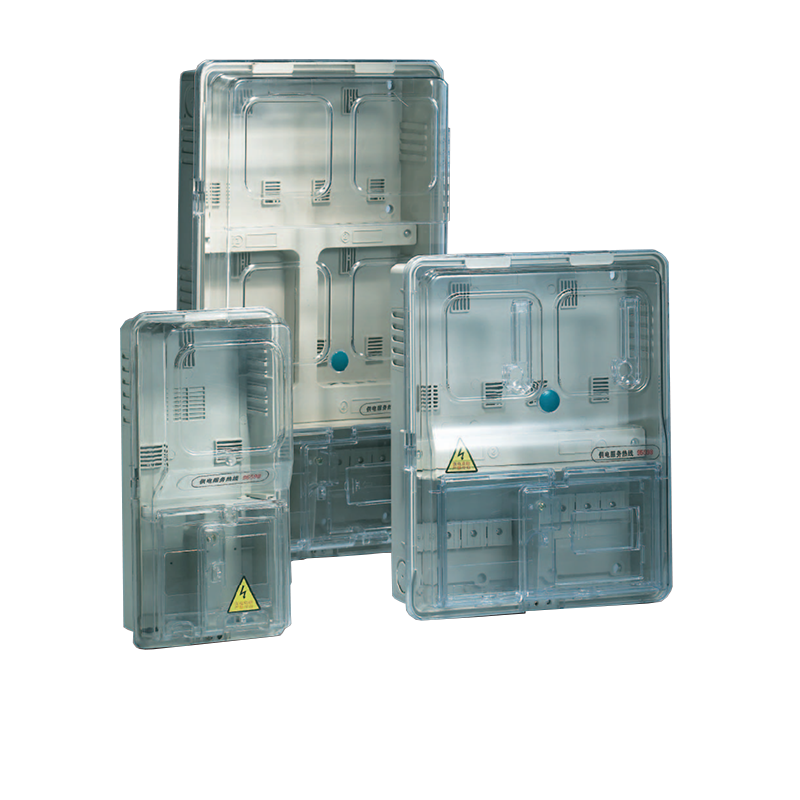

Product Description:

The anti-theft electric meter box developed by our company is made of new environmental protection engineering plastic polycarbonate (PC) and ABS engineering plastic. It has high insulation performance, good transparency, anti-ultraviolet, aging resistance, acid rain resistance, salt spray resistance, High temperature resistance, low temperature resistance, impact resistance and other properties, and good ventilation, rainproof, heat dissipation and other functions, the normal service life of more than 30 years.

This series of electric meter boxes adopts an integrated design concept, and integrates various electric energy meters and the entire metering circuit in an integrated closed box. electrical behavior.

This series of electric meter boxes has a beautiful shape, well-proportioned proportions, and smooth lines. It can be easily and firmly installed on the concrete wall through the reserved bolt holes on the back. The components in the box are compact in structure, reasonable in layout, and the line direction is smooth and clear. The box cover is interlocked with the box body through hooks, special screws and padlocks, and only the electrician can open it with a special screw wrench and key. The cover of the box is crystal clear, and the electric pipe personnel can directly see various abnormal phenomena in the box without opening it, so as to eliminate potential safety hazards in electricity consumption in advance, and realize the pipeline goal of “safe electricity use, prevention first”.

Since the appearance of this series of meter boxes, it has been favored by more and more power supply enterprises for its unique design, novel technology and advanced performance.

Application Condition:

This series of meter boxes includes single-phase meter boxes, three-phase meter boxes, and multi-meter boxes. It is suitable for power supply systems with AC 50Hz or 60Hz, rated operating voltages up to 220V, 380V, and rated operating currents of 10A~600A. Measurement and control management of single-phase electric energy and functional electric energy.

• Ambient temperature:-25°C ~+40°C(-13℉~104℉）, and the average temperature within 24 hours does not exceed +35°C/95℉.
• The relative humidity should not exceed 80% at 40°C, and higher relative humidity is allowed when the temperature is low.

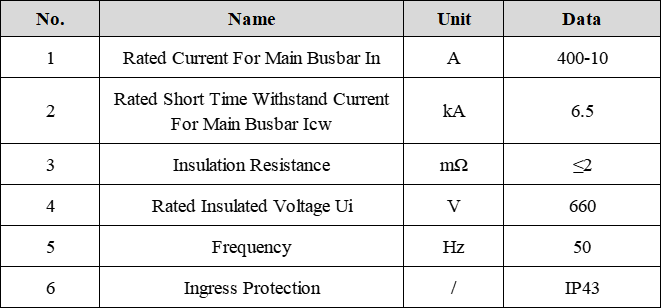

Technical Parameters:

Installation/Using Instruction:

• Please carefully check the integrity of all parts of the meter box during installation.
• The meter box should be installed vertically, and the inclination angle should not exceed 5°.
• The installation location should be selected where there is no severe vibration, impact and corrosion of electrical components.
• Since the materials used in the meter box are not resistant to strong alkalis, oxidizing acids, amines, and ketones, they are soluble in hydrogen chloride and aromatic solvents, so they should avoid contact with or use with these chemical substances.
• Avoid sharp objects and hard objects from colliding and scratching the surface of the meter box during use.
• When installing the meter box, try to choose a cool and dry place to avoid direct sunlight for hours to prolong the service life of the meter.
