Product Description:

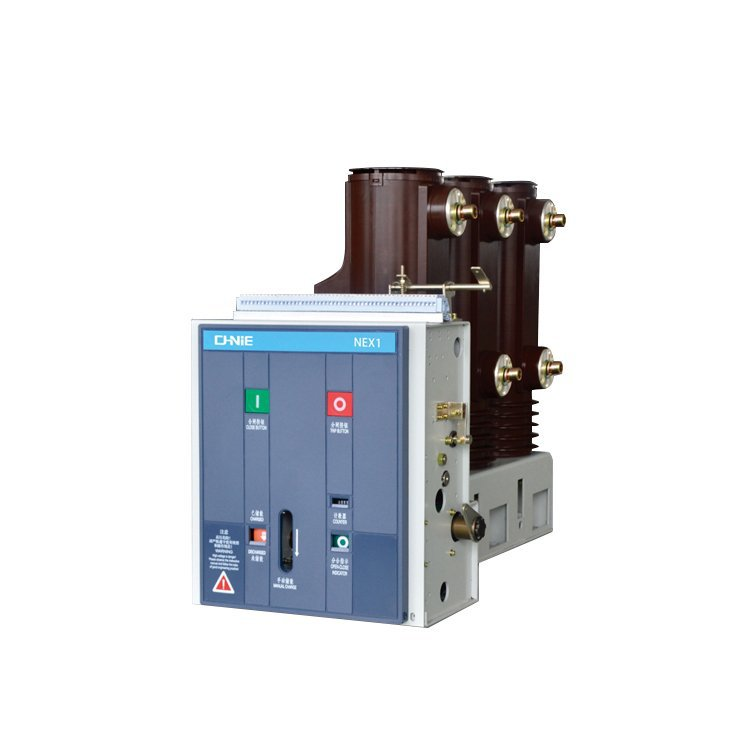

NEX1-12 side-mounted vacuum circuit breaker is an indoor high-voltage switchgear, suitable for three-phase power systems with a rated voltage of 12kV and a frequency of 50Hz. It is used as a protection and control device. Due to the special advantages of vacuum circuit breakers, it is especially suitable for Frequent operation under rated current, or places where short-circuit current is broken many times.

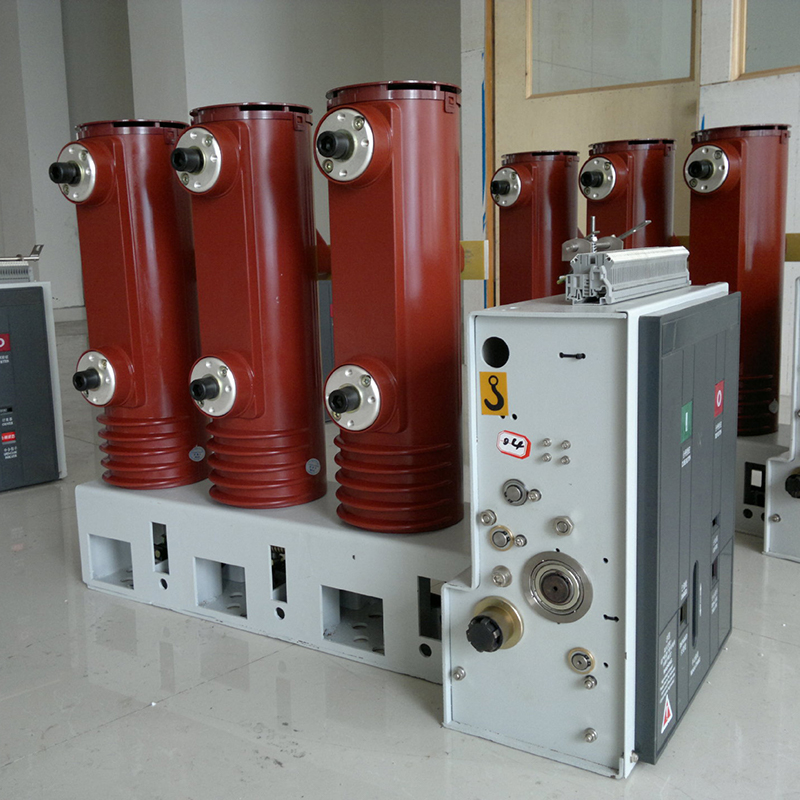

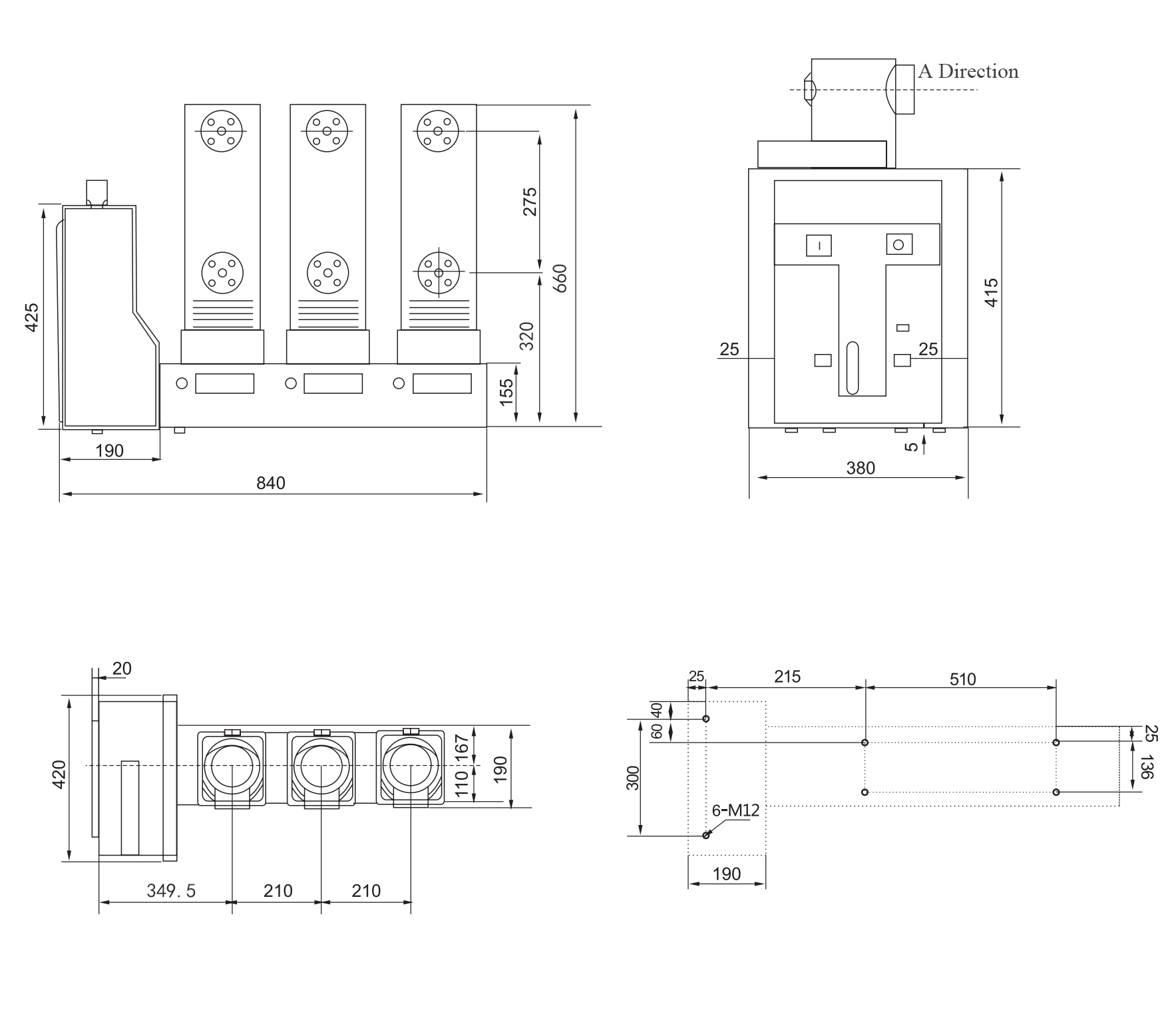

NEX1-12 side-mounted vacuum circuit breaker adopts fixed installation and is mainly used for fixed switchgear. The circuit breaker can be used alone, and can also be used for ring network power supply, box-type transformer or various non-standard power supply systems.

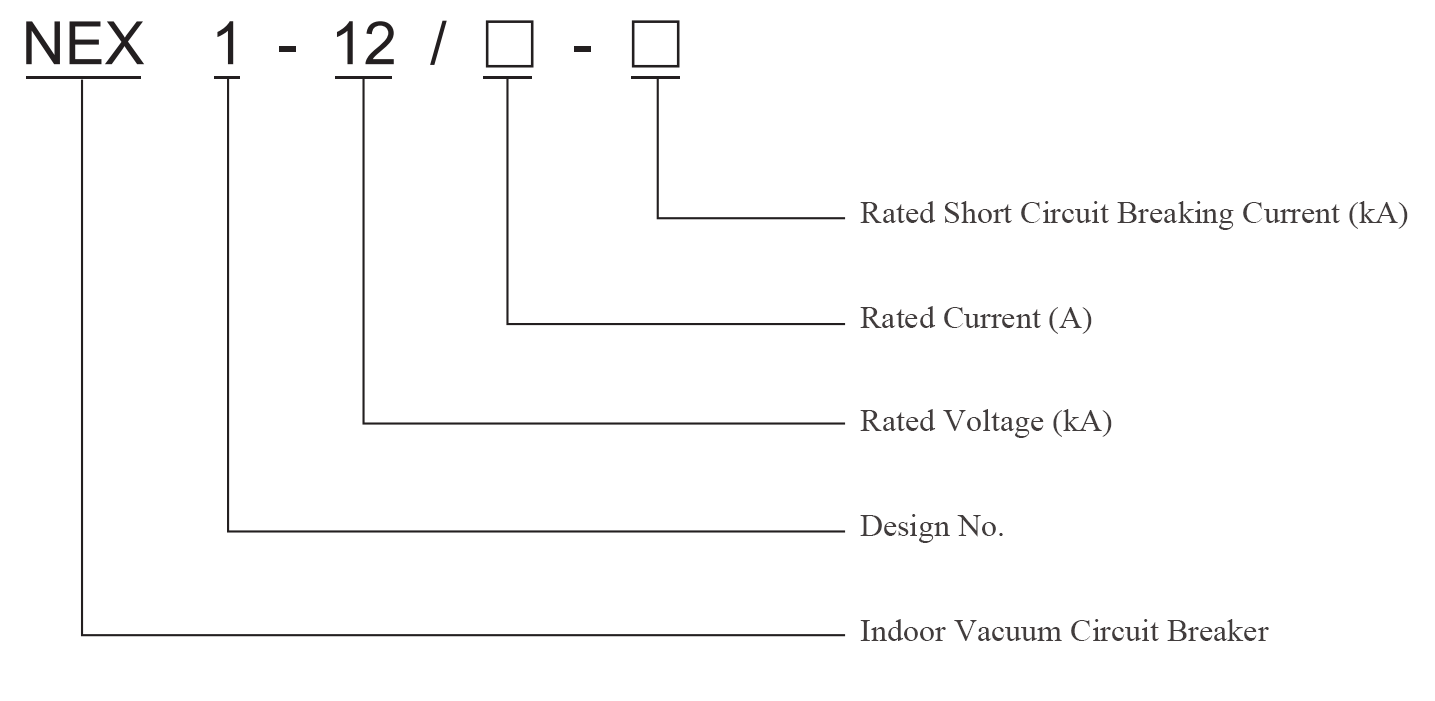

Item Meaning:

Application Condition:

• Ambient Air Temperature: -40℃~+40℃ / -40℉~+104℉
• Relative Humidity: daily average≤95%；monthly average≤90%
• Altitude: ≤2000m (If the altitude increases, the rated insulation level increases accordingly)
• Earthquake Intensity: ≤8 degree
• Wind Pressure: ≤700Pa (equal to wind speed: 34m/s)
• Pollution Level: Ⅳ
• Maximum Diurnal Temperature Difference: ≤25℃ /77℉
• Installation Environment: no flammable and explosion hazard, no chemicals, no strenuous vibration
• Notice: please contact us if the application environment is beyond above range.

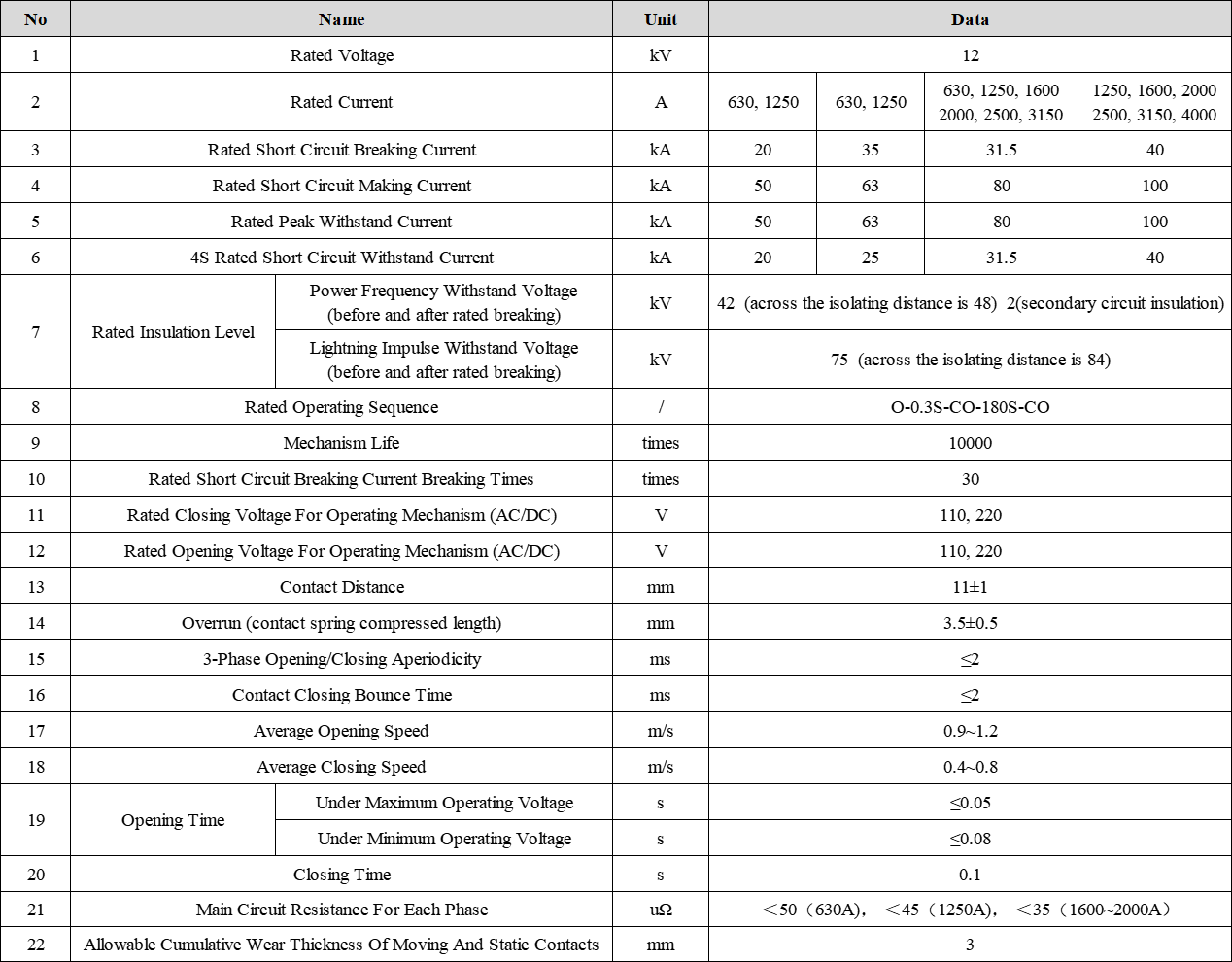

Main Technical Parameters:

Ordering Instruction:

1.Circuit breaker name, model and order quantity;

2.The rated current and rated short-circuit breaking current of the circuit breaker;

3.The model, name, operating voltage and release type of the equipped operating mechanism;

4.Quantity of operating vehicles and other spare parts and spare parts;

5.If the user has other special requirements, please negotiate when ordering.
