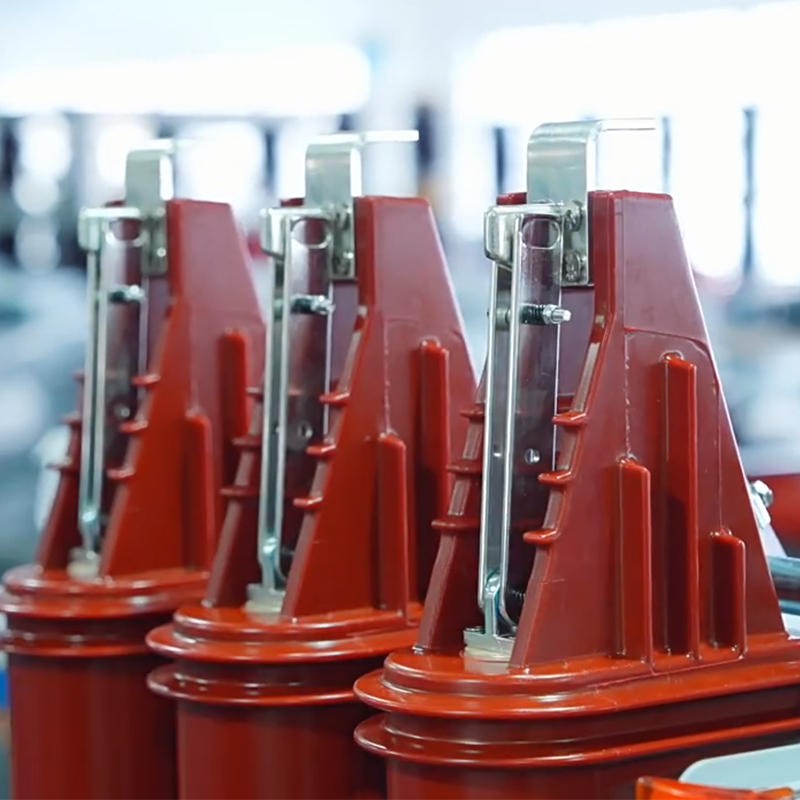

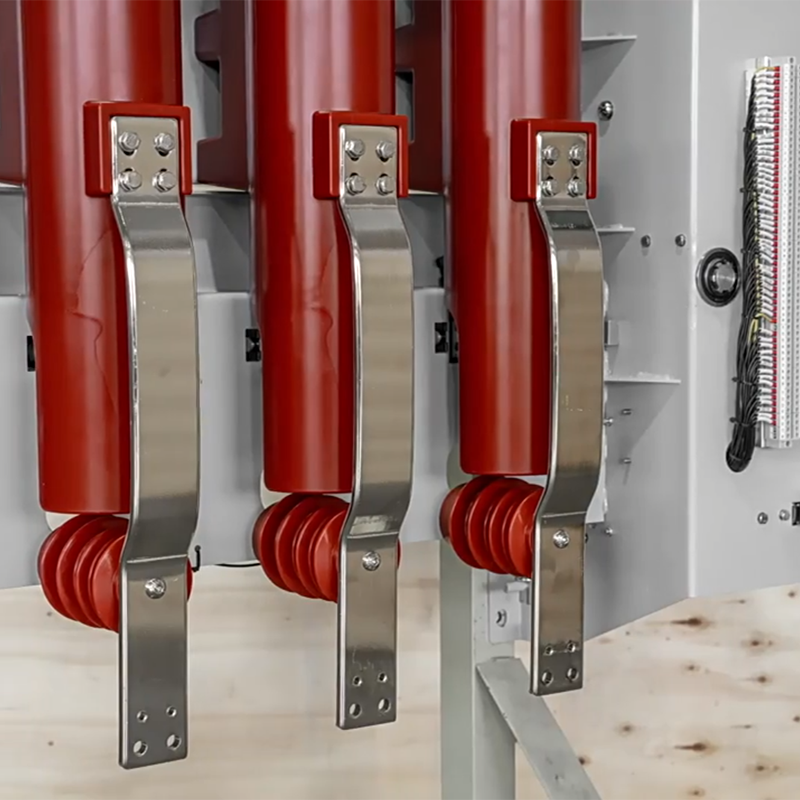

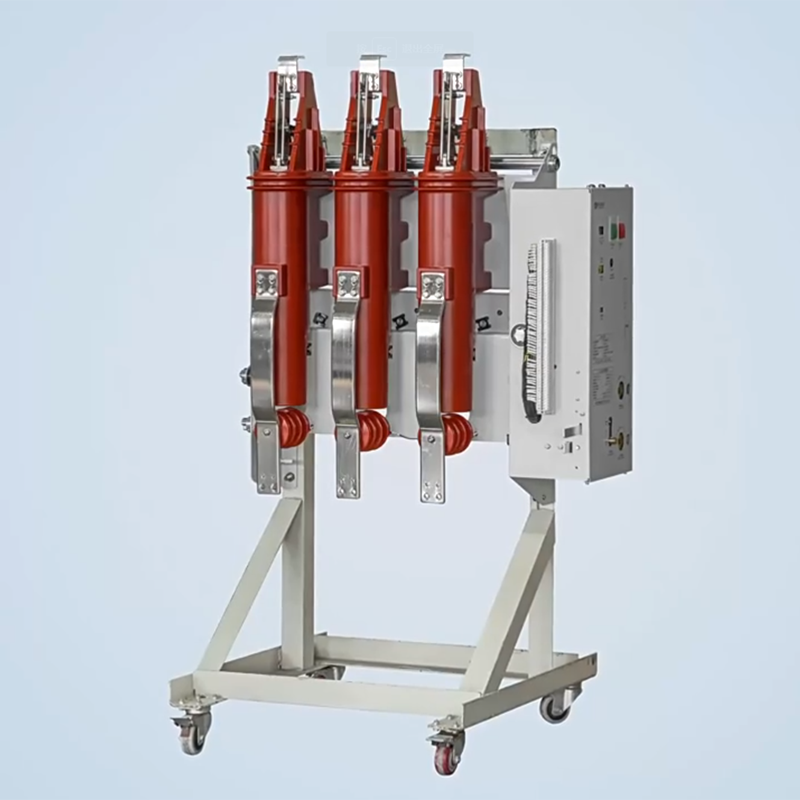

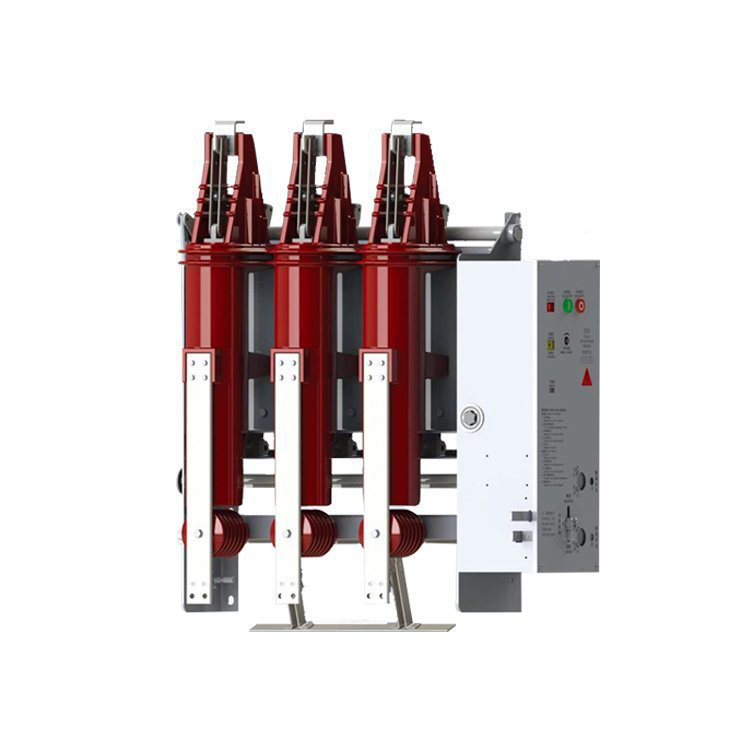

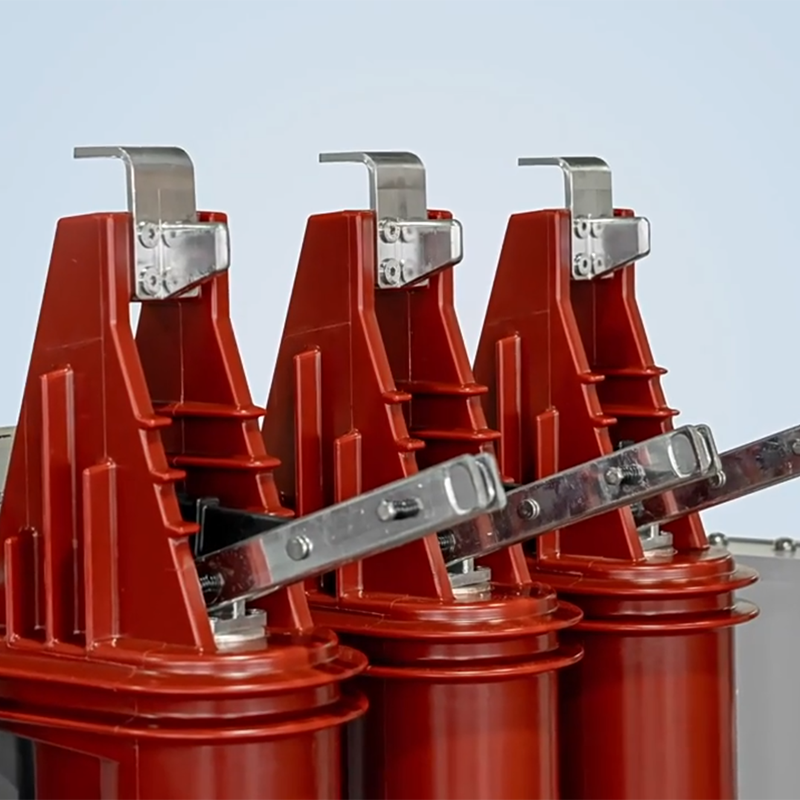

Product Description:

Suitable for 6-12kV medium-voltage power grid, this product integrates vacuum circuit breaker, disconnector, grounding switch, and sensor; the product is designed as a side-mounted product, which conforms to the trend of miniaturization, and the suitable cabinet size is (450×1000×1800).

The traditional high-voltage fixed switchgear XGN2 or XGN66 needs to be installed separately in the complete plant, such as isolating switch, vacuum circuit breaker, grounding switch, sensor, and mechanical interlock for installation and debugging. The process is complex, time-consuming, and requires high technical requirements for workers. After this product, it is equipped with a multi-functional vacuum circuit breaker, and the switch body has an isolation station. The circuit breaker station and grounding station are more integrated and systematic, and the installation is simple, fast, convenient and reliable.

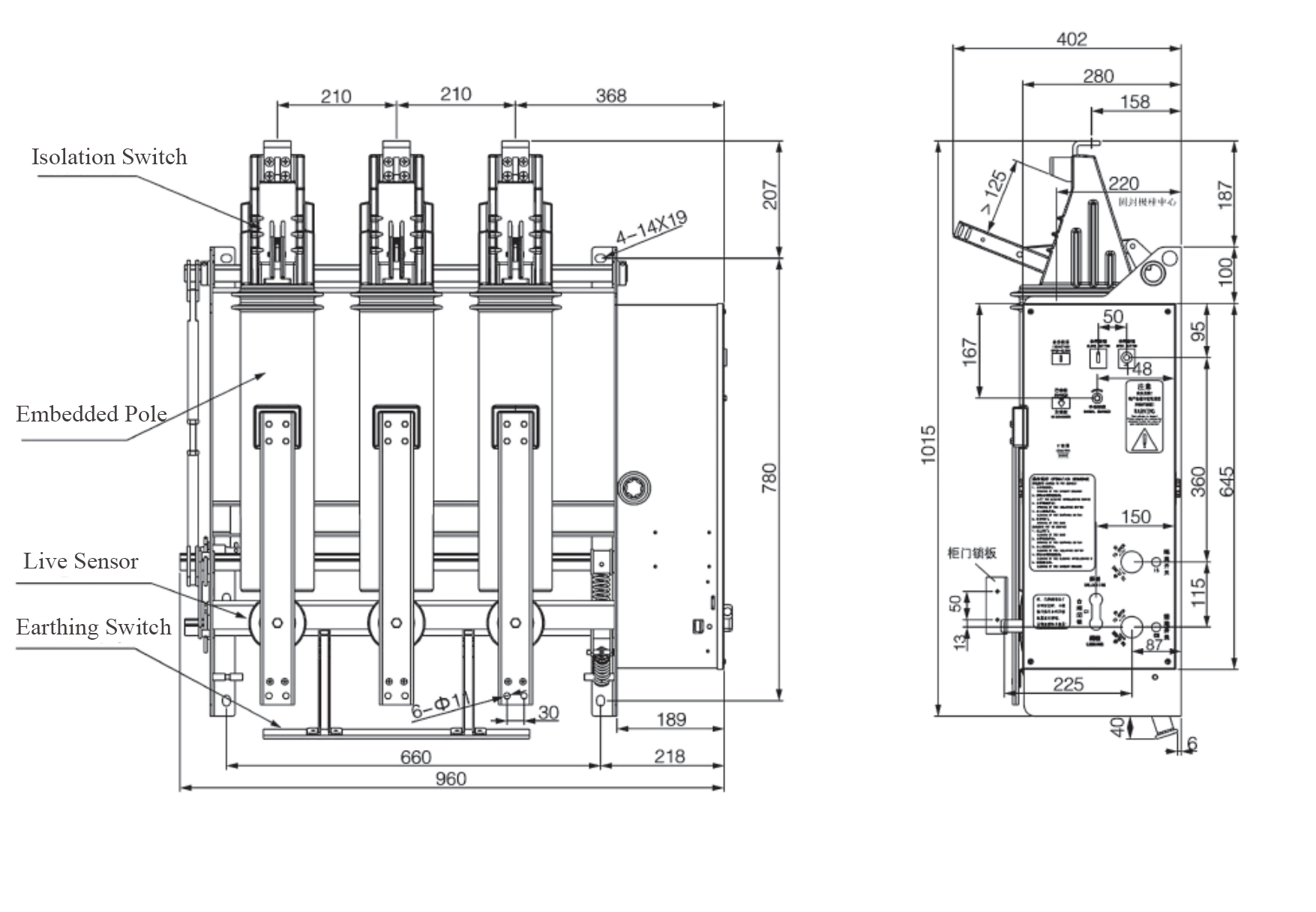

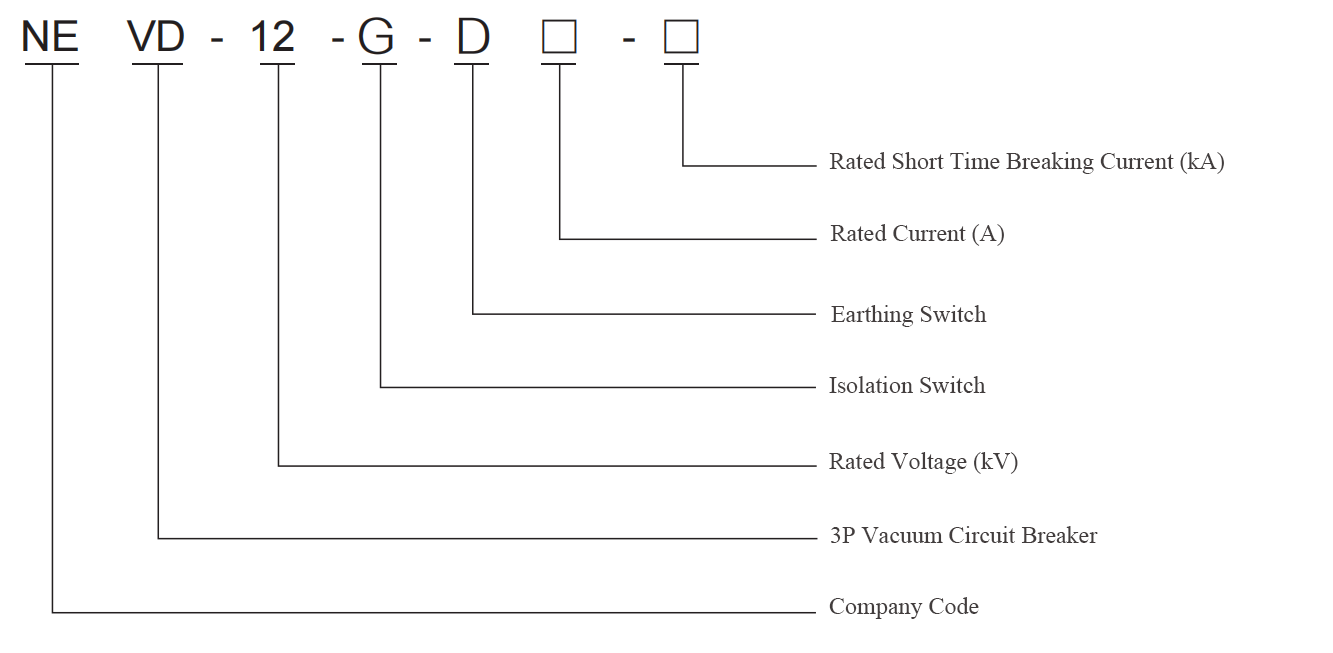

Item Meaning:

Application Condition:

• Ambient Air Temperature: -25℃~+40℃ / -13℉~+104℉
• Relative Humidity: daily average≤95%；monthly average≤90%
• Altitude: ≤1000m
• Earthquake Intensity: ≤8 degree
• Installation Environment: no explosion hazard, no chemicals, no strenuous vibration
• Notice: please contact us if the application environment is beyond above range.

Main Technical Parameters:

Ordering Instruction:

1.Circuit breaker name, model and order quantity;

2.The rated current and rated short-circuit breaking current of the circuit breaker;

3.The model, name, operating voltage and release type of the equipped operating mechanism;

4.Quantity of operating vehicles and other spare parts and spare parts;

5.If the user has other special requirements, please negotiate when ordering.
