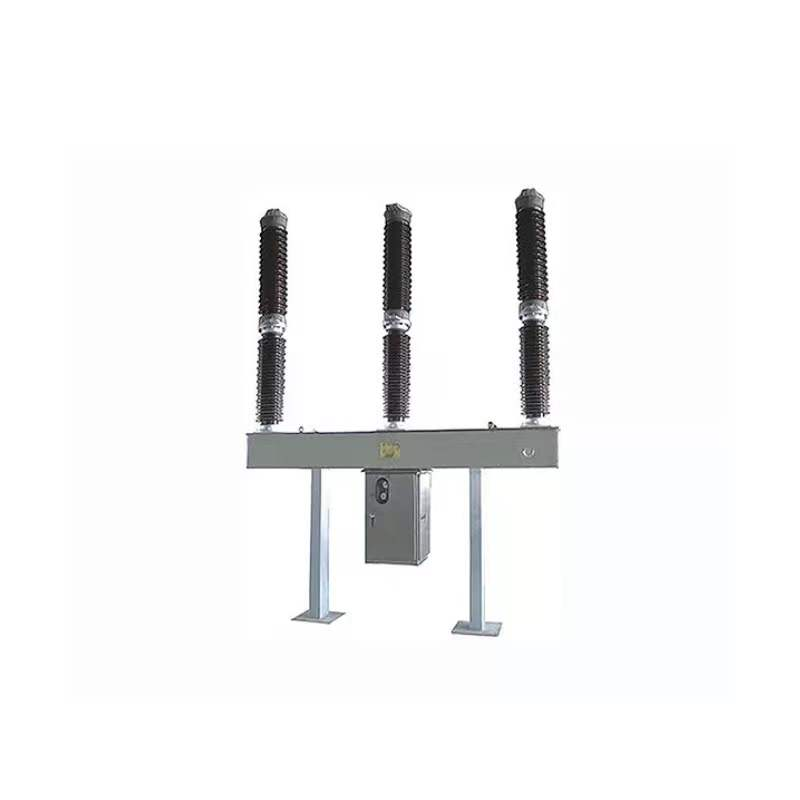

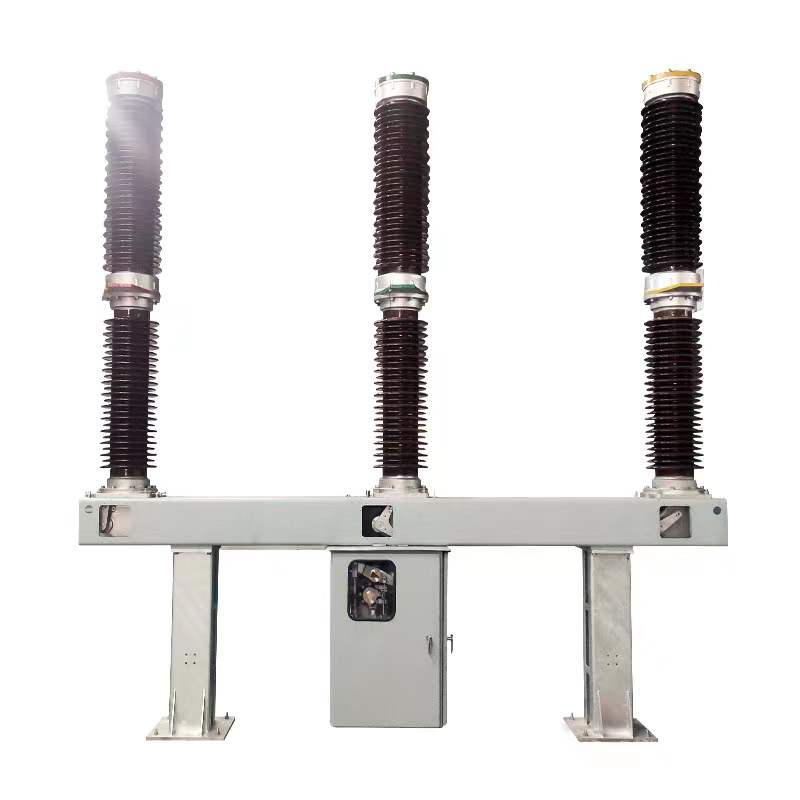

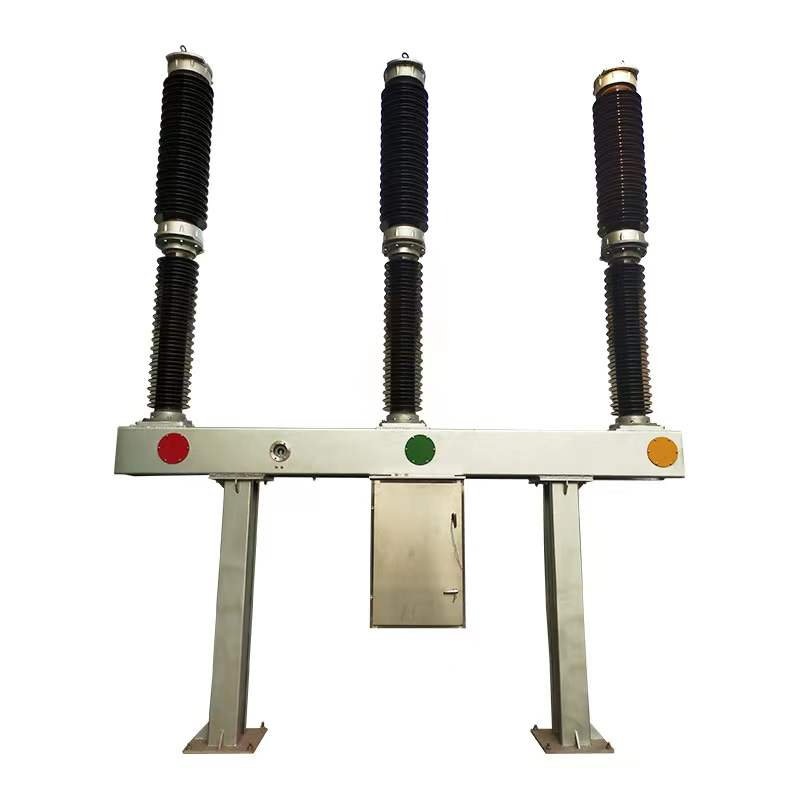

LW36-110 SF6 Circuit Breaker

Ambient Air Temperature: -45℃~+45℃
Relative Humidity: daily average≤95%；monthly average≤90%
Saturated vapor pressure: daily average≤2.2×10-3MPa; monthly average≤1.8×10-3MPa
Altitude: ≤3000m ●Ice thickness: 10mm
Seismic Intensity: horizontal acceleration≤0.3g; the vertical acceleration ≤0.15g
Wind Pressure: ≤700Pa
Sunlight Intensity: 0.1W/cm2 (at the 0.5 m/s wind speed)
Maximum Diurnal Temperature Difference: ≤25℃
Nominal Creepage Distance Comparison: 31mm/kV
Installation Environment: no flammable and explosion hazard, no chemicals, no strenuous vibration
Notice: please contact us if the application environment is beyond above range.

sales@byyouele.com Inquiry Now

Product Introduction

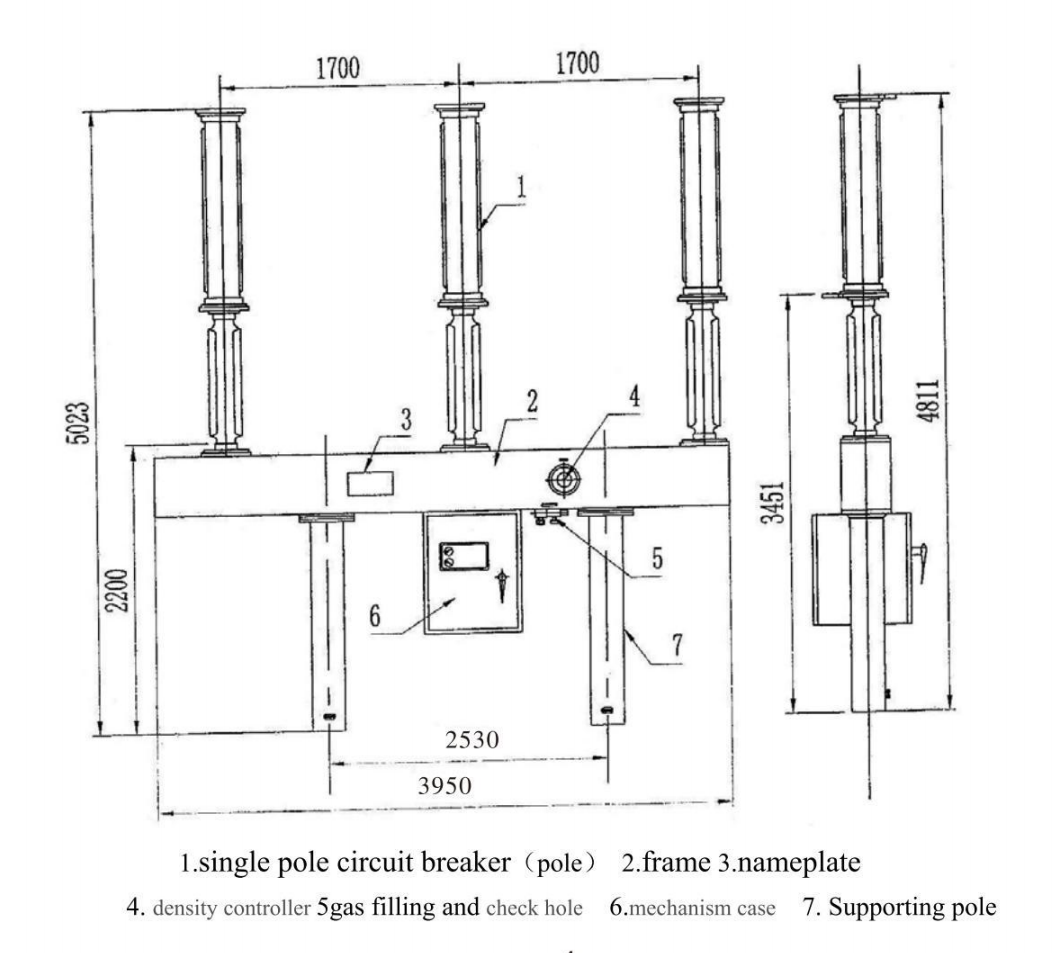

Drawing And Size

Product Description:

LW36-110 outdoor high-voltage SF6 circuit breaker is a three-phase AC 50Hz outdoor high-voltage switchgear. It is suitable for the control and protection of 110kV power transmission and transformation systems. It can also be used as a contact circuit breaker and switch group.

Application Condition:

Ambient Air Temperature: -45℃~+45℃
Relative Humidity: daily average≤95%；monthly average≤90%
Saturated vapor pressure: daily average≤2.2×10-3MPa; monthly average≤1.8×10-3MPa
Altitude: ≤3000m ●Ice thickness: 10mm
Seismic Intensity: horizontal acceleration≤0.3g; the vertical acceleration ≤0.15g
Wind Pressure: ≤700Pa
Sunlight Intensity: 0.1W/cm2 (at the 0.5 m/s wind speed)
Maximum Diurnal Temperature Difference: ≤25℃
Nominal Creepage Distance Comparison: 31mm/kV
Installation Environment: no flammable and explosion hazard, no chemicals, no strenuous vibration
Notice: please contact us if the application environment is beyond above range.

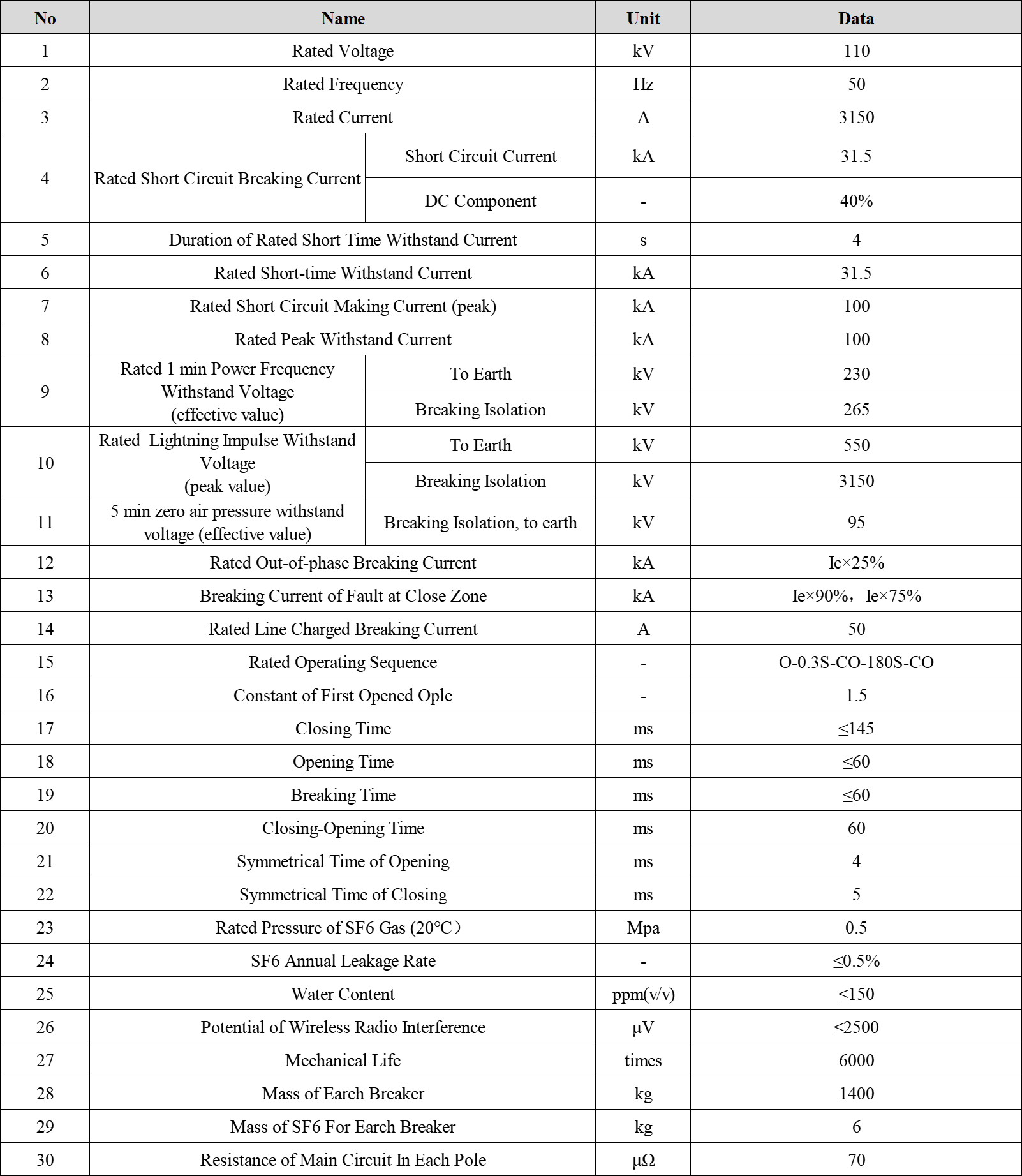

Technical Parameters:
