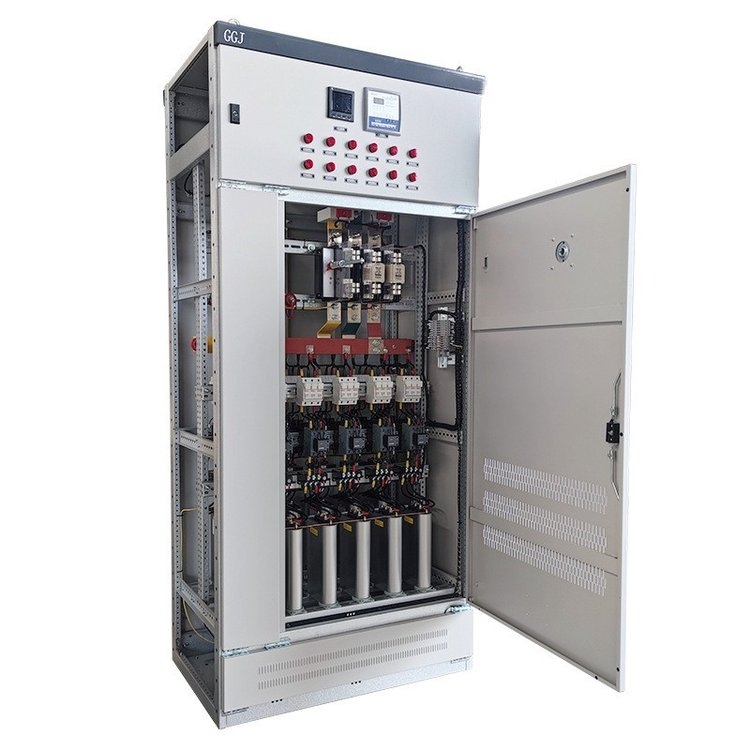

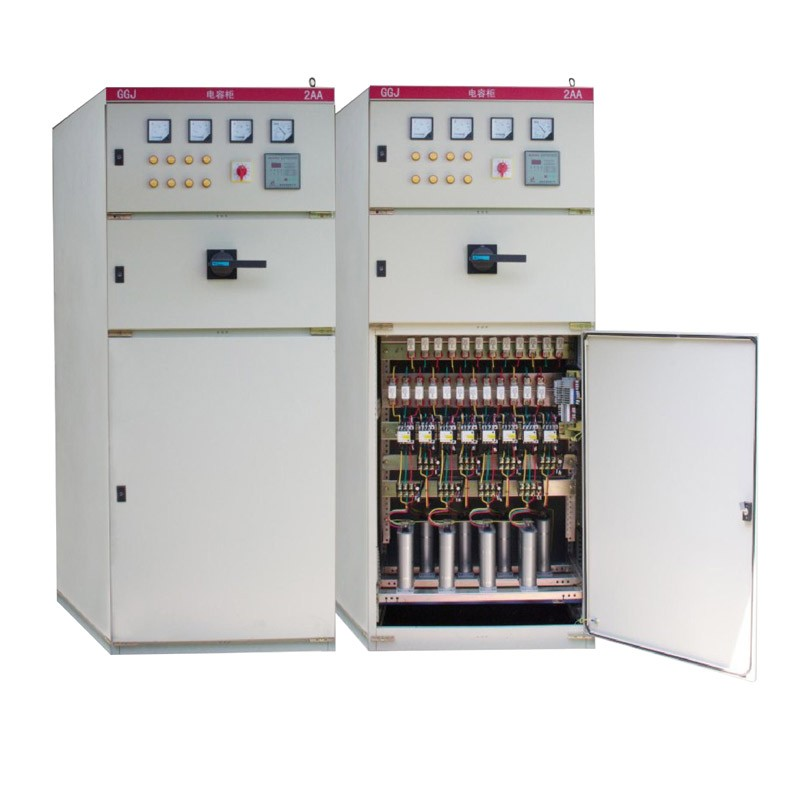

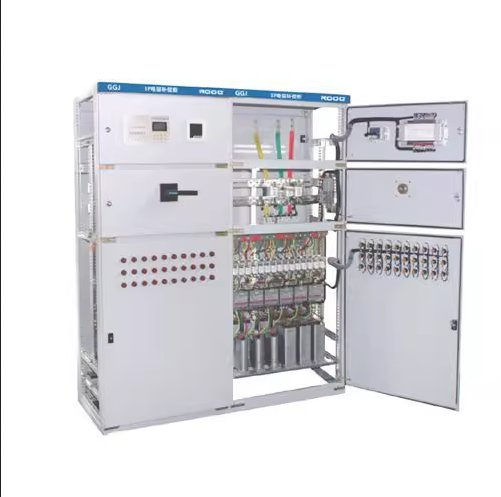

Product Description:

Because this device can effectively improve the power factor of the electric load, reduce the line loss, and increase the actual load capacity of the transformer, it has a significant energy-saving effect. At the same time, the specific reactor used in the system can also effectively prevent harmonic amplification and effectively absorb Most of the harmonic currents make the limit value of the total harmonic voltage distortion and the limit value of each harmonic current content meet the national standard, and achieve the purpose of harmonic control. However, if a common contactor is used to switch the capacitor bank, it will bring large inrush current, slow compensation time, high maintenance cost and short service life. Therefore, we recommend that users give priority to the following occasions: Use dynamic reactive power compensation device. Such as: In the low-voltage power grids of substations of industrial and mining enterprises, production workshops and civil buildings, it is especially suitable for power transmission and distribution systems with frequent load changes and unstable reactive power.

This product complies with: GB/T15576-2008 “Low Voltage Complete Reactive Power Compensation Device” professional standard.

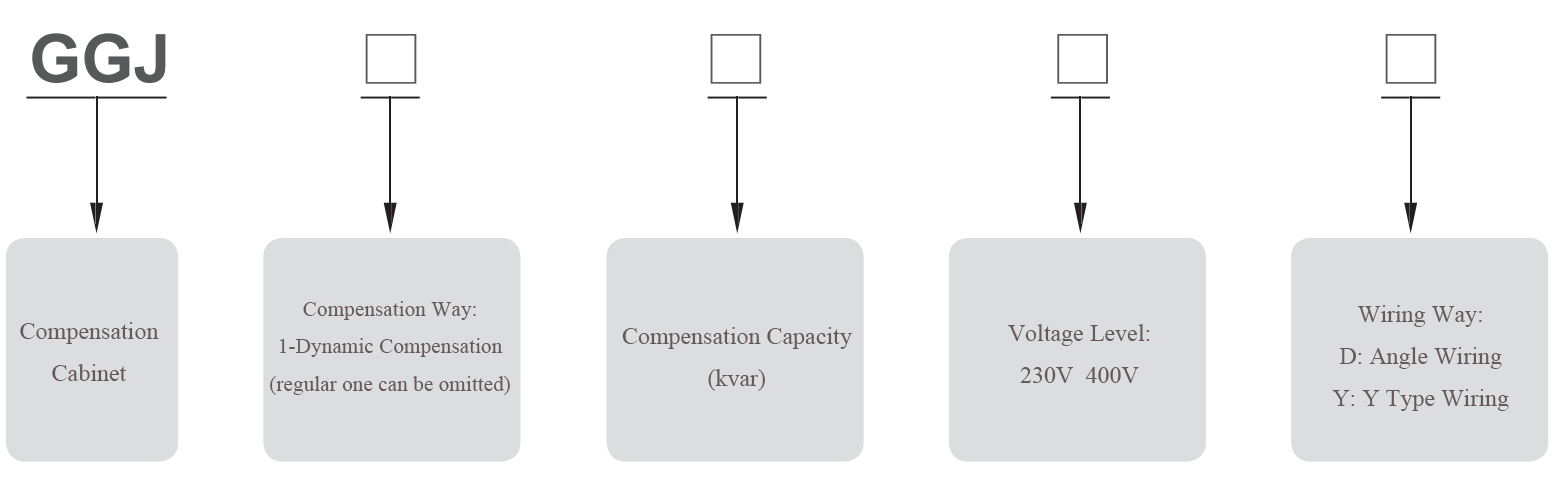

Item Meaning:

Application Condition:

• Altitude: ≤2000m
• Ambient Temperature: -5℃– 40℃/ 23℉–104℉（daily average temperature≤35℃/95℉）
• Relative Humidity: ≤50%（when temp is 40℃/104℉）；≤90% （when temp is 20℃/68℉）
• Installation Environment: no explosion hazard, no corrosive gas ,no conductive dust, no violent vibration and impact, no rain and snow erosion
• Notice: please contact us if the application environment is beyond above range

Technical Summary:

• System Voltage: ＜AC450V
• Switching Time: ≤20ms
• Inrush Current: ＜25In
• Rated Frequency: 50Hz±50%
• Sampling Current: 0–5A
• Power Consumption: ≤15w
• Sensitivity To Current: 100mA

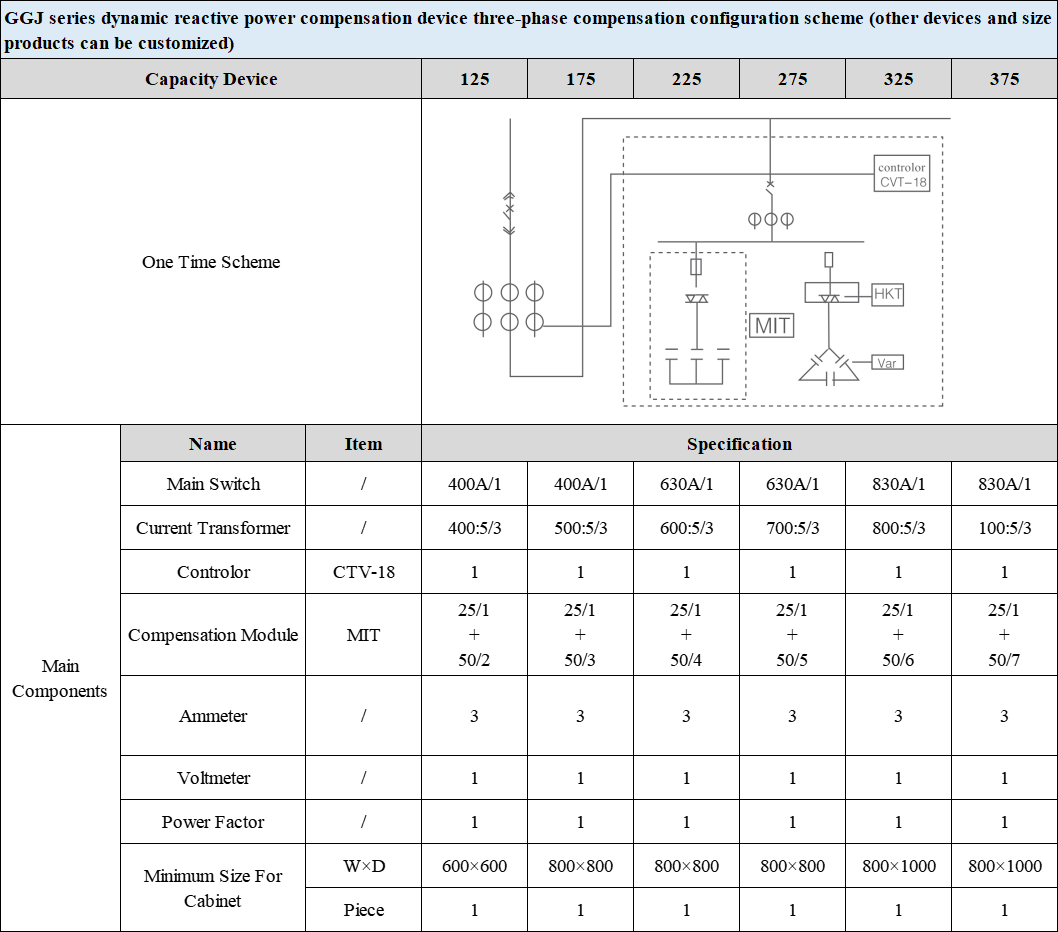

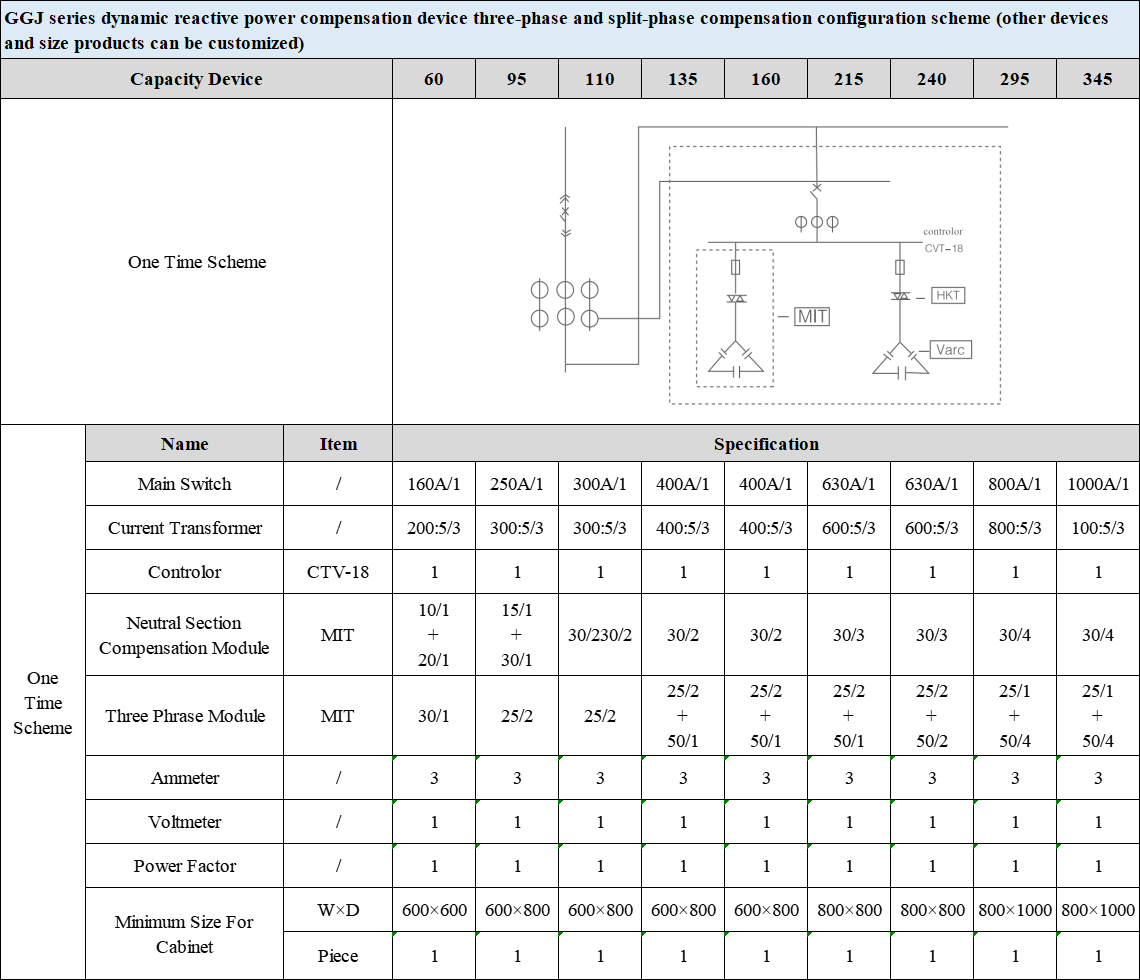

Schemes:

Ordering Instruction:

• Main route scheme drawing;
• Compensation capacity and compensation method;
• If it is inconsistent with the normal use conditions of the product, it must be explained in advance.
