Product Description:

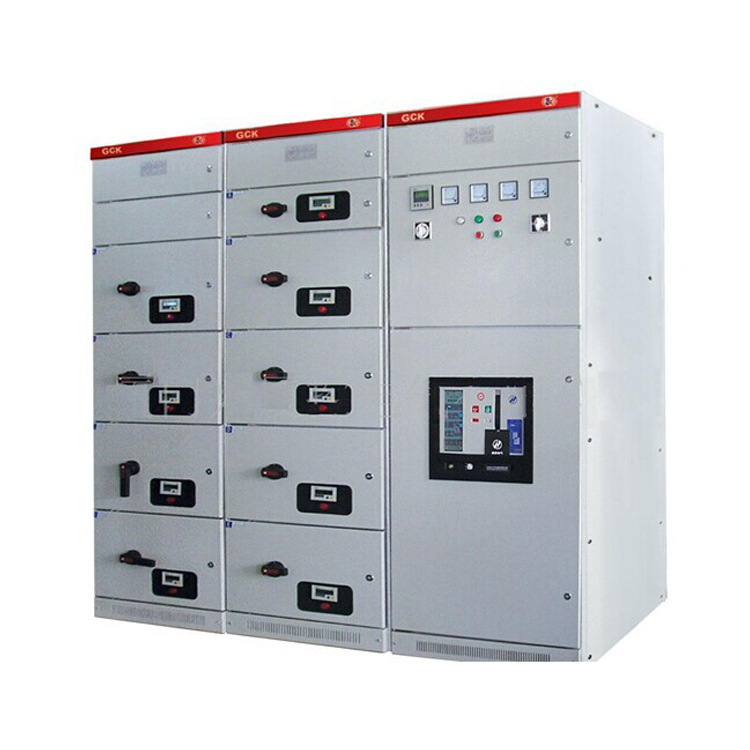

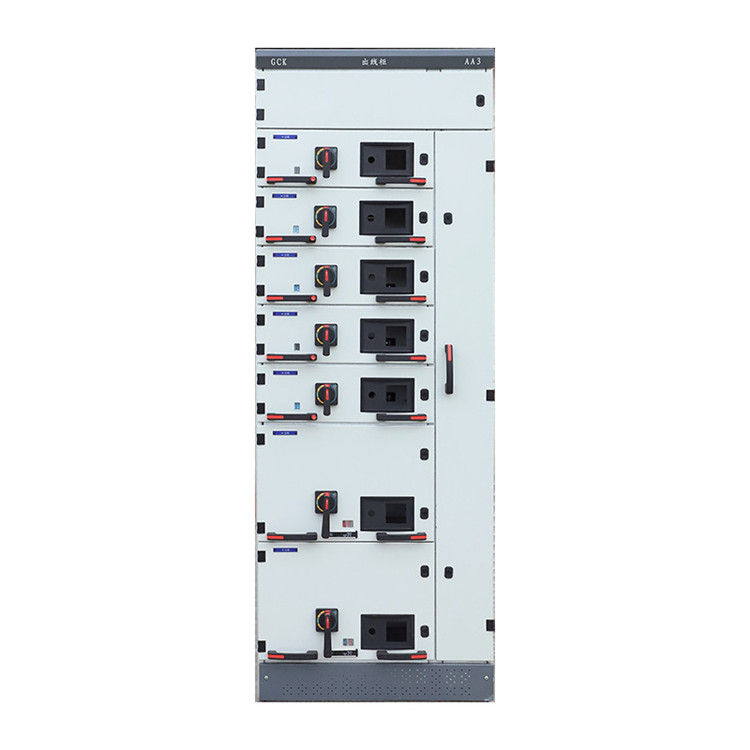

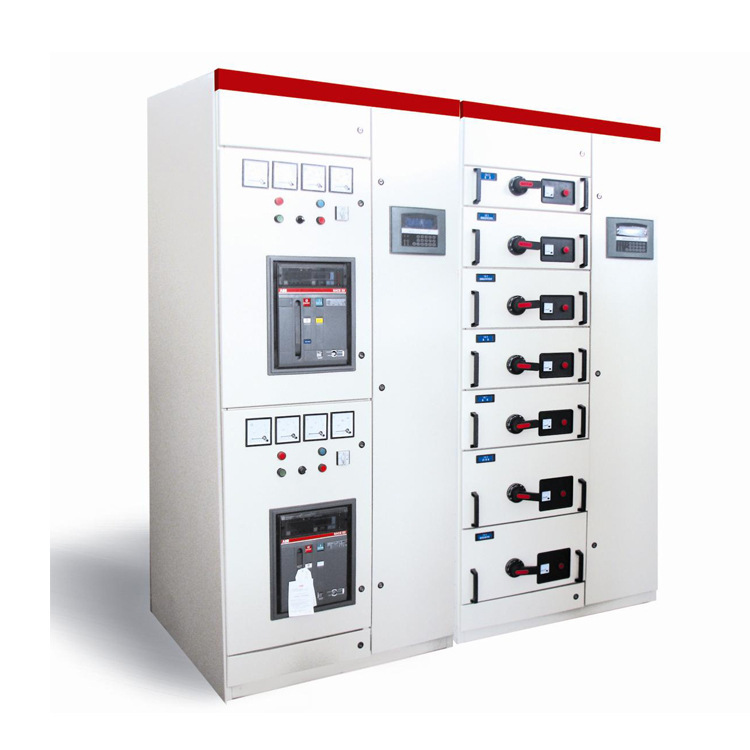

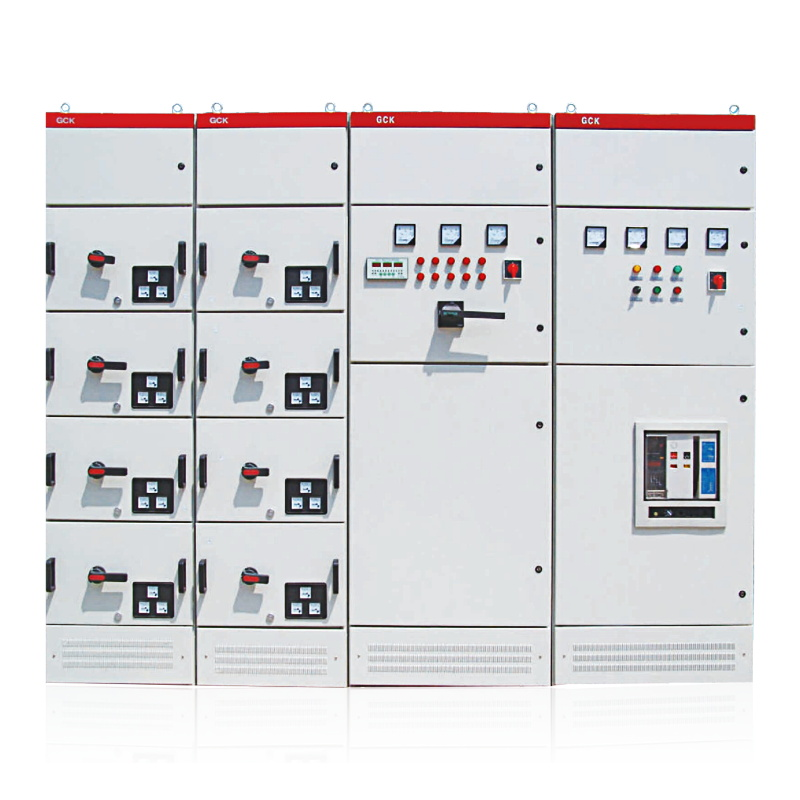

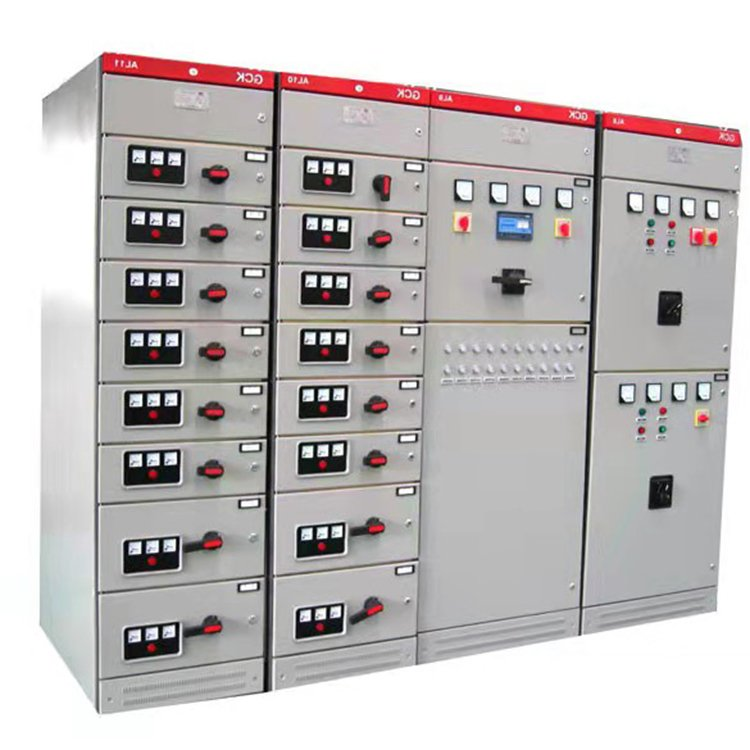

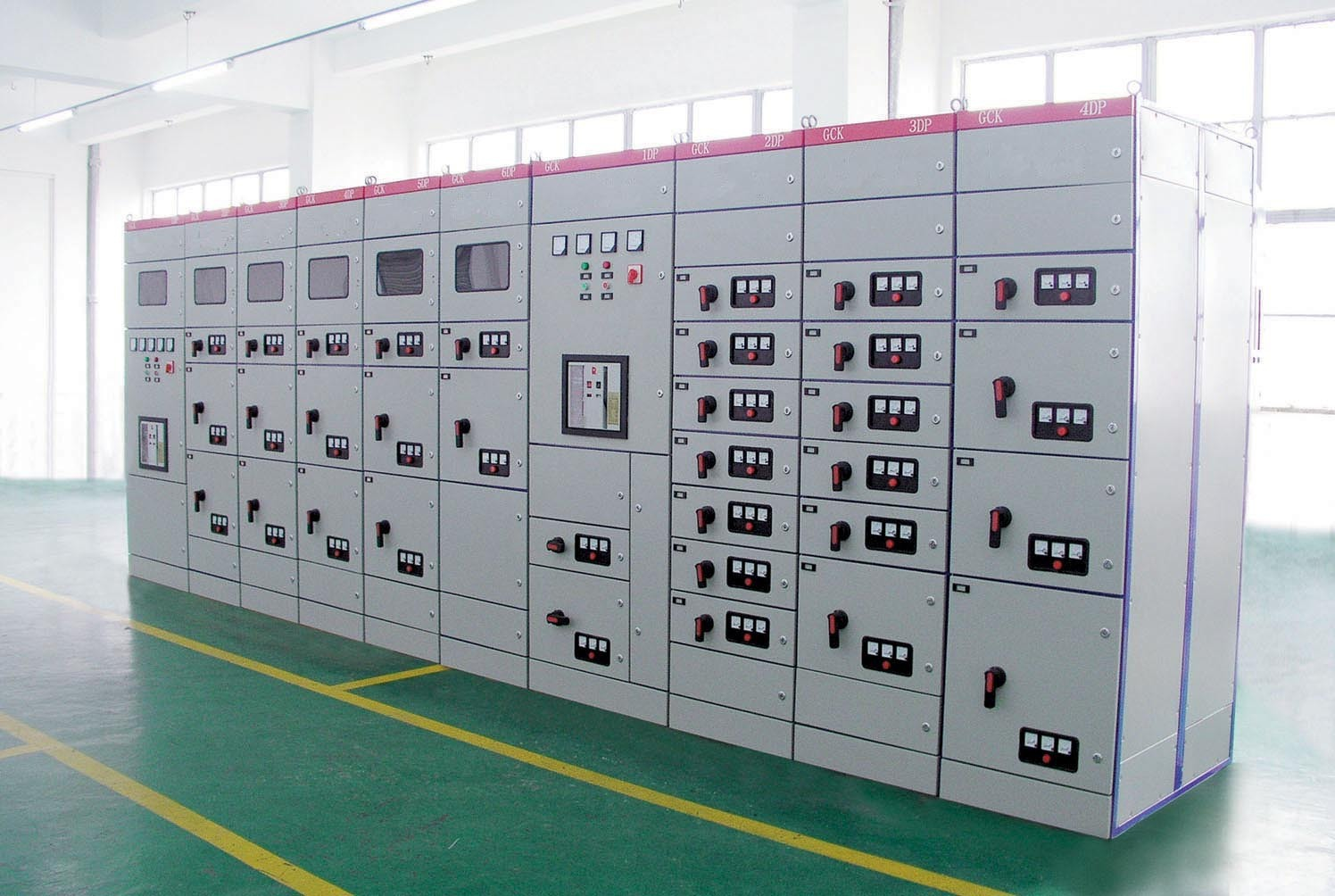

GCK low-voltage draw-out switchgear is composed of power distribution center (PC) cabinet and motor control center (MCC). It is suitable for power users such as power plants, substations, and industrial and mining enterprises. In the power distribution system with a current up to 3150A, it is used for power conversion and distribution control of power distribution equipment such as power distribution, motor control and lighting.

Product Feature:

This series of products has high breaking capacity, good dynamic and thermal stability, advanced and reasonable structure, practical electrical scheme, series, and strong versatility. Various scheme units can be combined arbitrarily, and one cabinet can accommodate more circuits, saving an area of Large area, beautiful appearance, high protection level, safe and reliable, easy maintenance and so on.

This product complies with: GB7251.12-2013 and GCS professional standards.

Application Condition:

• Altitude: ≤2000m
• Ambient Temperature: -5℃– 40℃/ 23℉–104℉（daily average temperature≤35℃/95℉）
• Relative Humidity: ≤50%（when temp is 40℃/104℉）；≤90% （when temp is 20℃/68℉）
• Installation Environment: no fire, no explosion hazard, no serious pollution, no chemical corrosion, no violent vibration
• Gradient: ≤5°（to vertical plane）
• Shipping & Storage Temperature: 25℃–55℃ / 77℉–131℉ （≤70℃/158℉ in 24 hours）
• Notice: please contact us if the application environment is beyond above range.

Technical Parameters:

Notice:

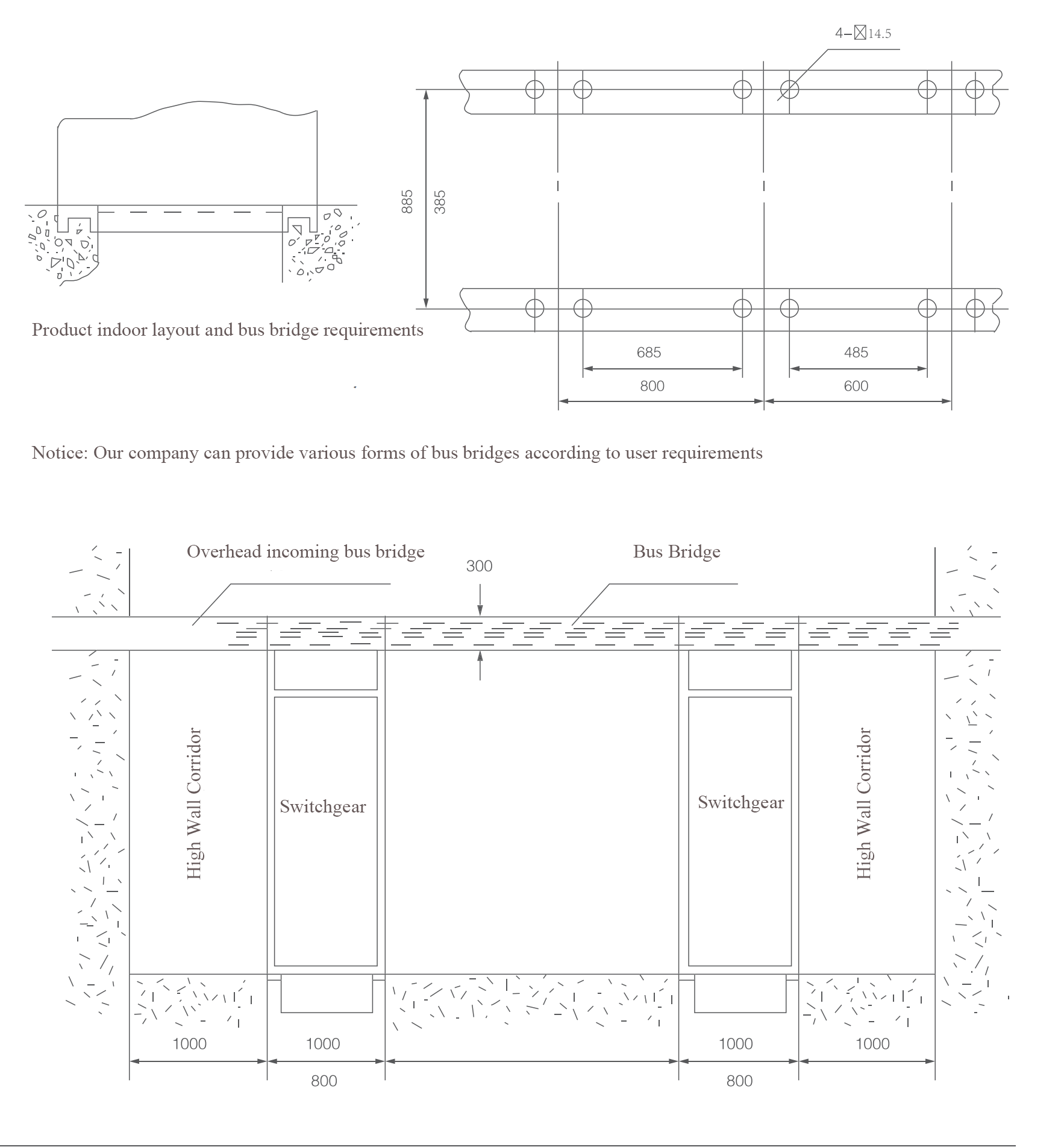

• When installing this product, the horizontal line between the cabinets should be connected firmly and reliably.
• The door of this product has an interlock function with the main switch, that is, the door can only be opened when the power is cut off. The other sides of the product are sealed with screws, which have no interlock function with the main switch. When checking the side panel of this product, be sure to disconnect the power supply.
• Non-professionals should not open the cabinet for maintenance.
