DFWK European Style Cable Distribution Cabinet - Zhejiang Beiye Electric Co.,Ltd ...

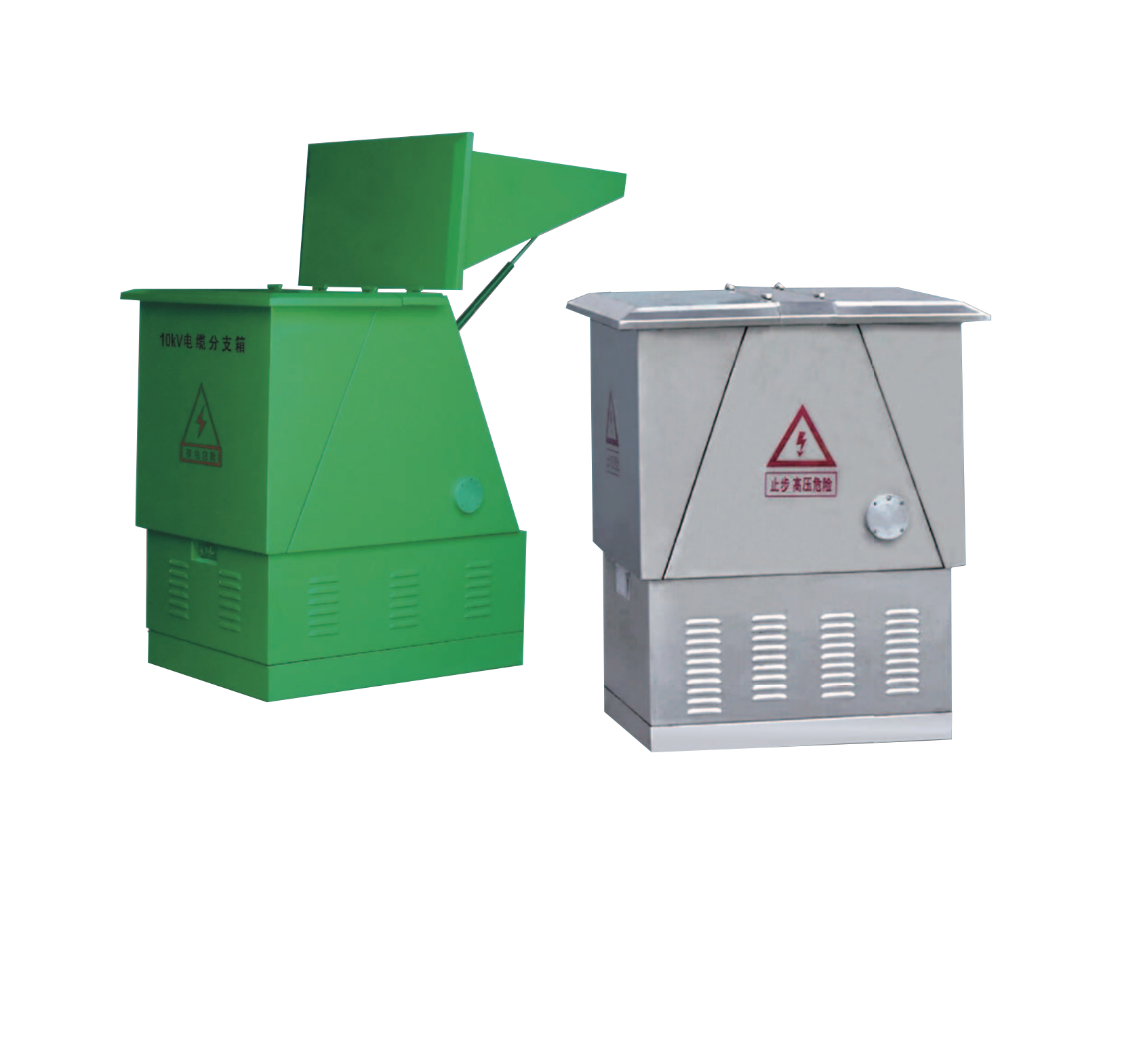

DFWK European Style Cable Distribution Cabinet
DFWK European Style Cable Distribution Cabinet
DFWK European Style Cable Distribution Cabinet


European-style cable distribution cabinet is a cable engineering equipment widely used in power distribution network systems in recent years. There are significant advantages such as no need for large-span crossovers. The cable glands used conform to the DIN476 36 standard. Generally, the rated current 630A bolted connection type cable gland is used.

sales@byyouele.com Inquiry Now
Product Introduction

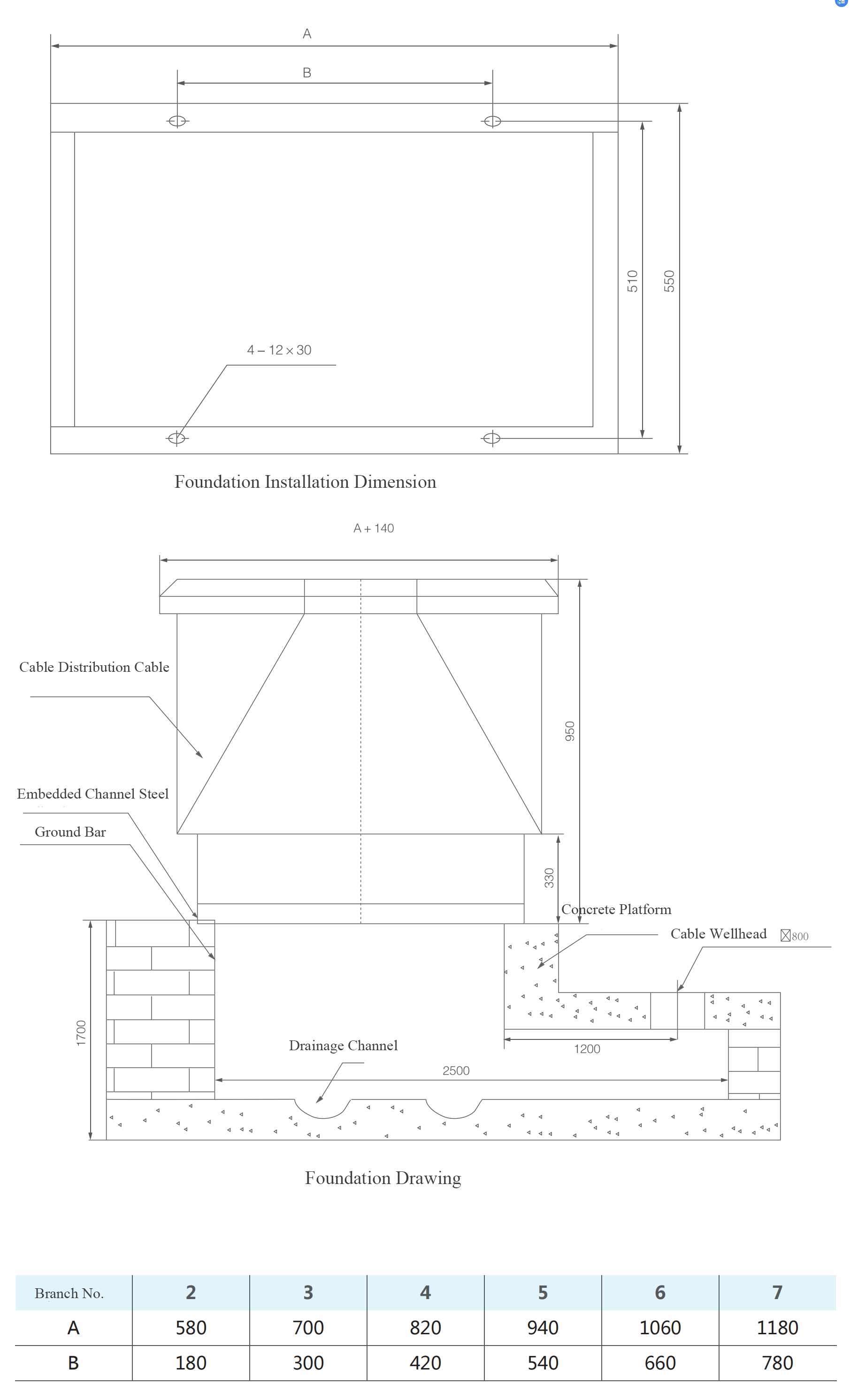

Drawing And Size

Product Description:

European-style cable distribution cabinet is a cable engineering equipment widely used in power distribution network systems in recent years. There are significant advantages such as no need for large-span crossovers. The cable glands used conform to the DIN476 36 standard. Generally, the rated current 630A bolted connection type cable gland is used.

Item Meaning:





Application Condition:

  • Ambient Temperature: -40℃– 50℃/ -40℉–122℉
  • Wind Speed: ≤34m/s (≤700Pa)
  • Relative Humidity: daily average≤95%; monthly average≤95%
  • Earthquake Intensity: horizontal acceleration ≤ 0.4m/s², vertical acceleration ≤0.15m/s²
  • Inclination:≤3°
  • Installation Environment: no corrosive and flammable gas, no steam, no violent vibration
  • Notice: please contact us if the application environment is beyond above range.



Technical Parameters:

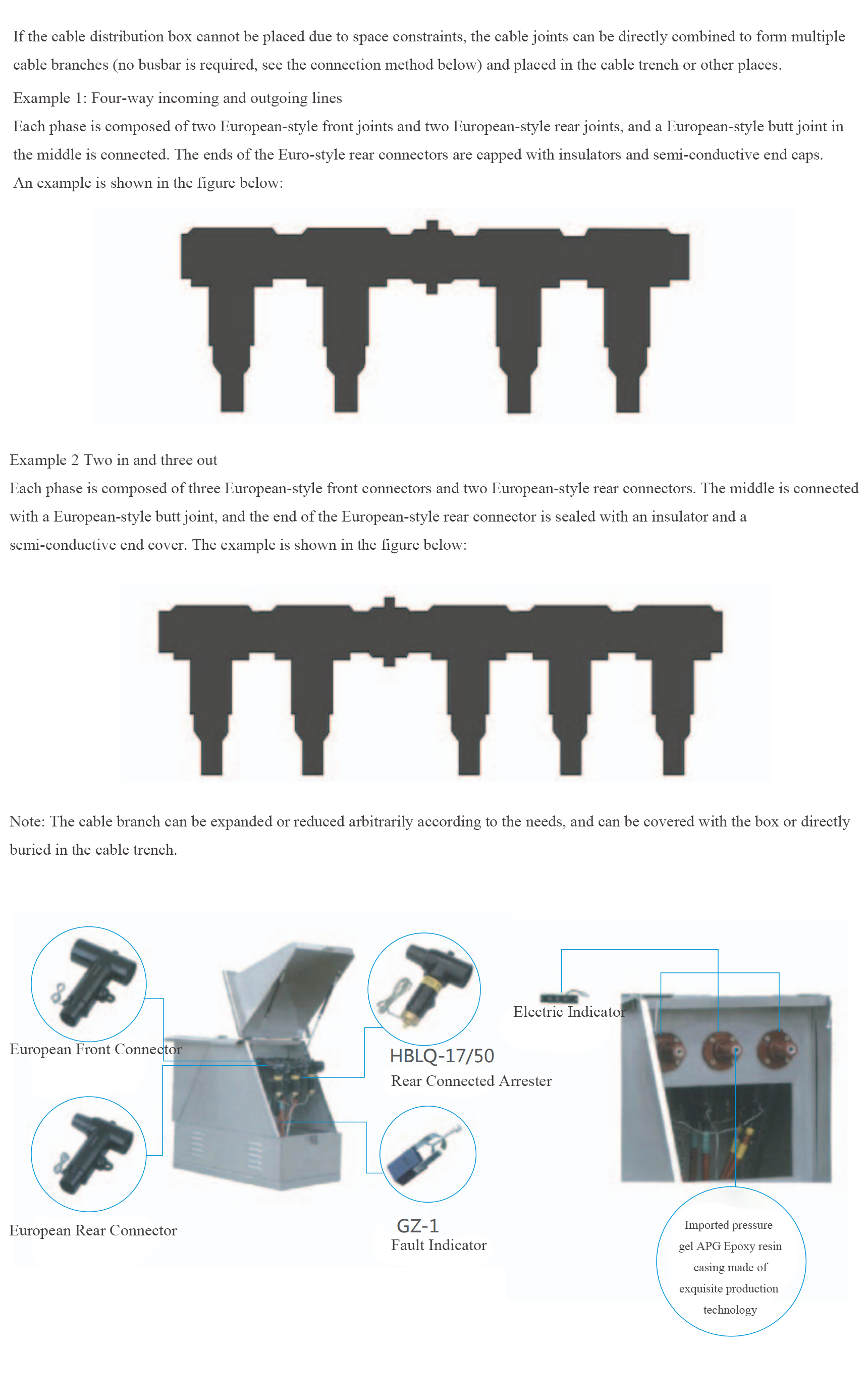

Structure Diagram:



Base Structure:
