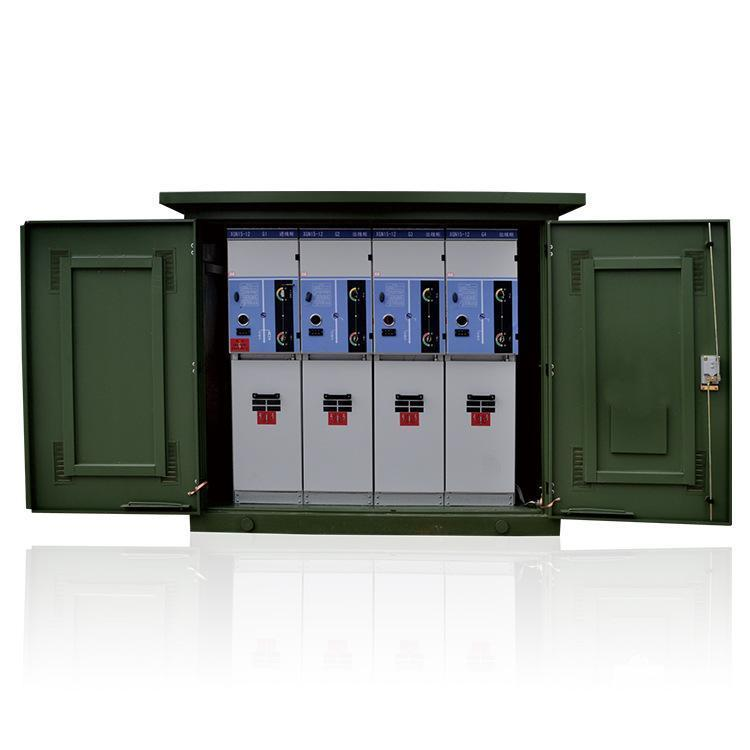

DFWK Cable Distribution Cabinet With Switch
DFWK Cable Distribution Cabinet With Switch
DFWK Cable Distribution Cabinet With Switch


It is widely used in densely populated urban areas such as urban power grid reconstruction, residential quarters, and commercial centers.

sales@byyouele.com Inquiry Now
Product Introduction
Drawing And Size

Product Features:

  • Prefabricated live touchable silicone rubber cable head, fully sealed, fully insulated, maintenance-free, reliable guarantee of personal safety;
  • Compact structure, small and beautiful appearance, stainless steel double-layer box, the service life can reach more than 20 years;
  • Under the premise of not affecting the operation of the main network, realize regional power outage maintenance and reduce the scope of power outages;
  • It can be equipped with one or more SF6 load switches. The wiring mode is flexible and diverse, and the branch outgoing line can reach up to 8 loops;
  • It’s Optionalforlightning arrester, short-circuit resistance indicator, current-limiting fuse, etc., to meet various requirements of users.



Application:

It is widely used in densely populated urban areas such as urban power grid reconstruction, residential quarters, and commercial centers.

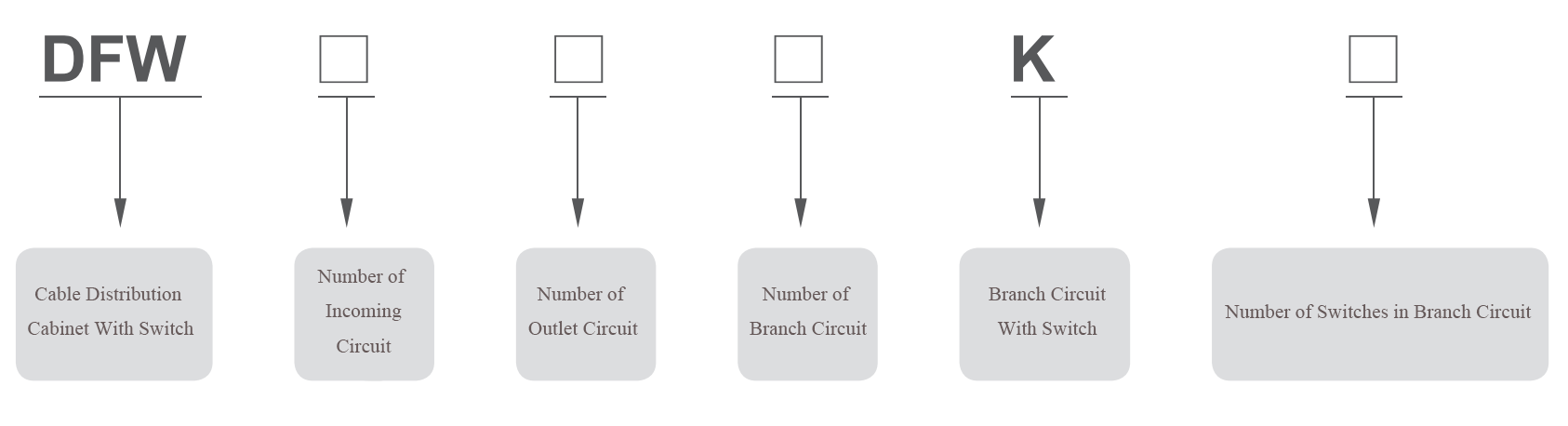

Item Meaning:

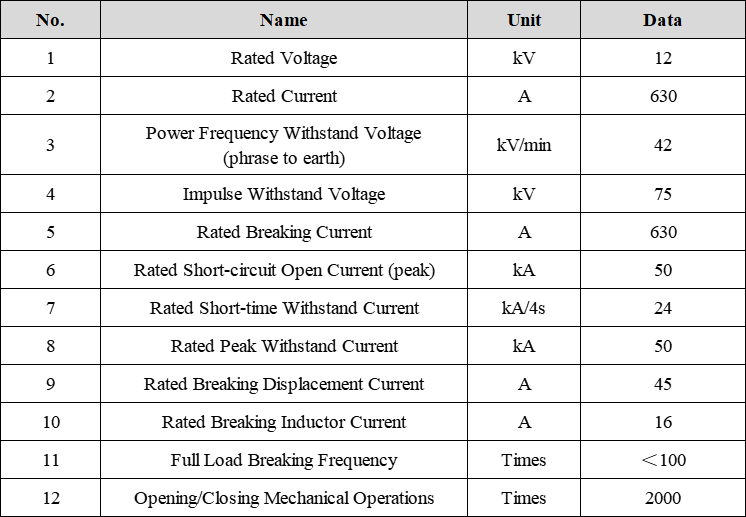

Technical Parameters:

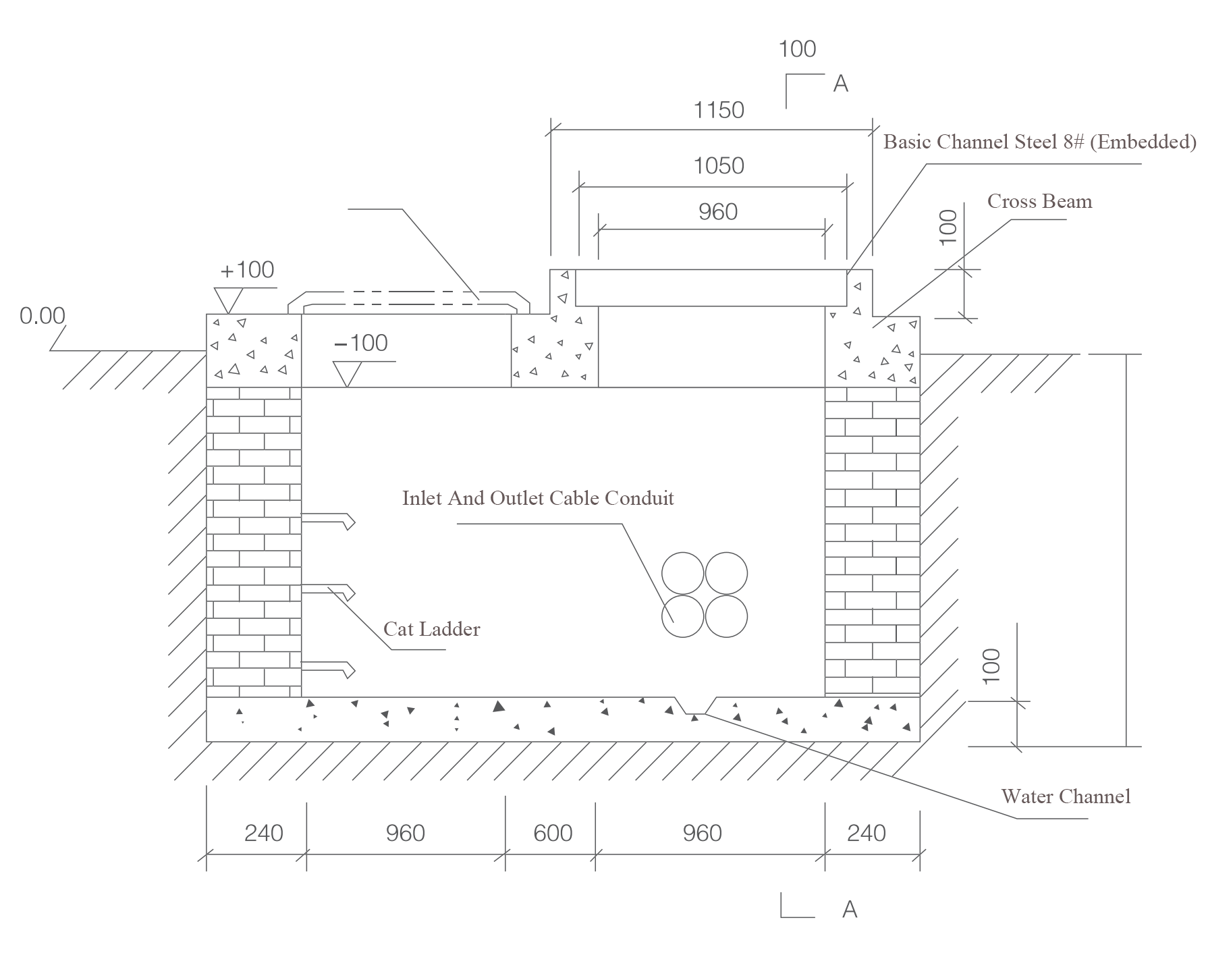

Technical Requests:

  • The inside of the brick wall is sealed with 1:3 cement mortar and waterproofed;
  • Φ6 concrete is used for piercing the beam;
  • Anti-corrosion treatment must be done after the basic channel steel is made;
  • After the branch box is installed, the surroundings of the base are sealed with cement;
  • Waterproof measures must be taken at the entrance of the manhole;
  • The grounding electrode should be pre-buried in the foundation, and the grounding resistance meets the requirements of the power department.



Ordering Instructions:

  • If the product model and the user have special requirements, a picture can be provided;
  • Standard section of incoming and outgoing cables and branch cables;
  • The number of optional lightning arresters and short-circuit fault indicators;
  • The material and color of the housing.

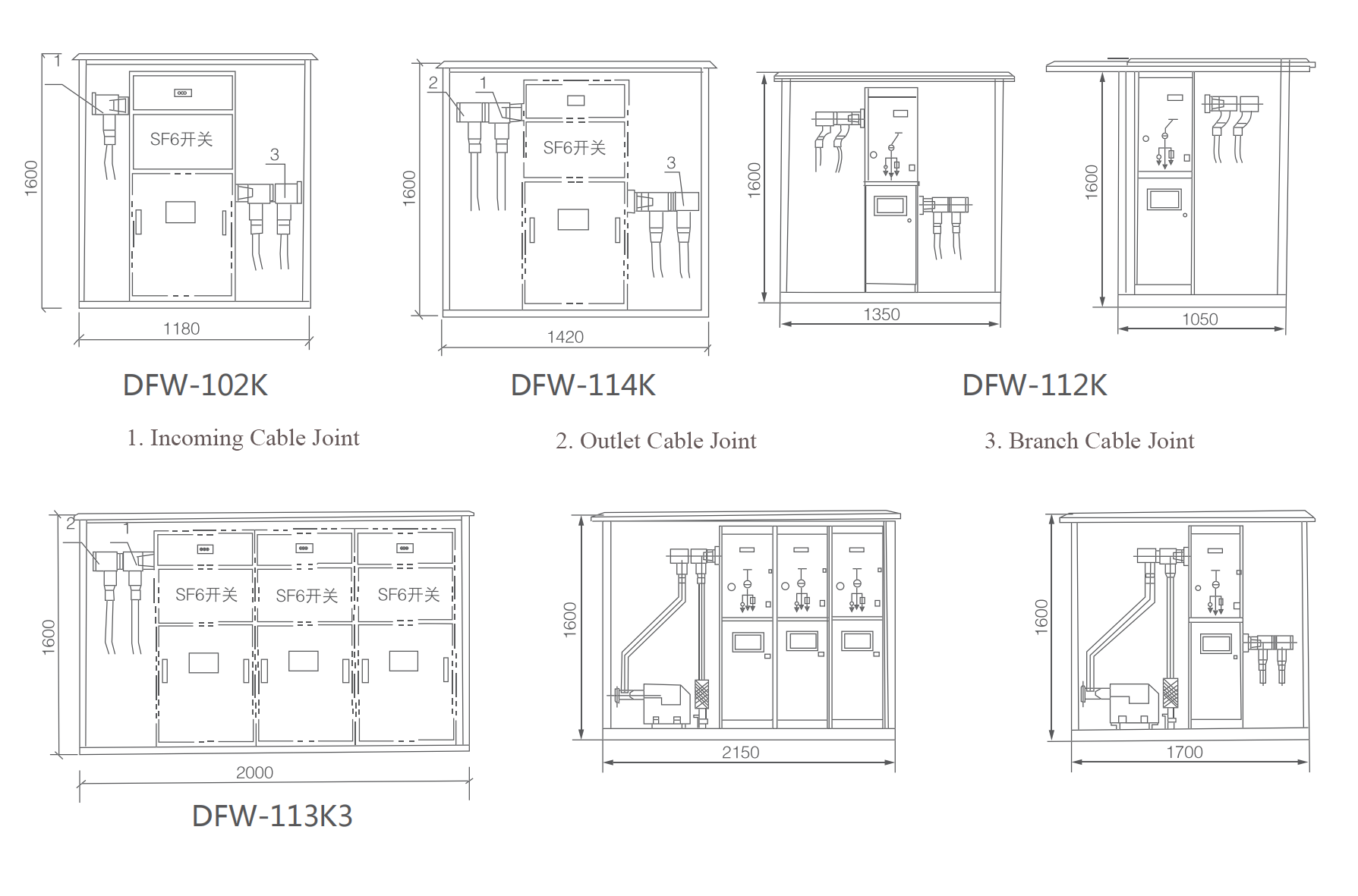

Outline Diagram:



Structure Diagram:
