Product Description:

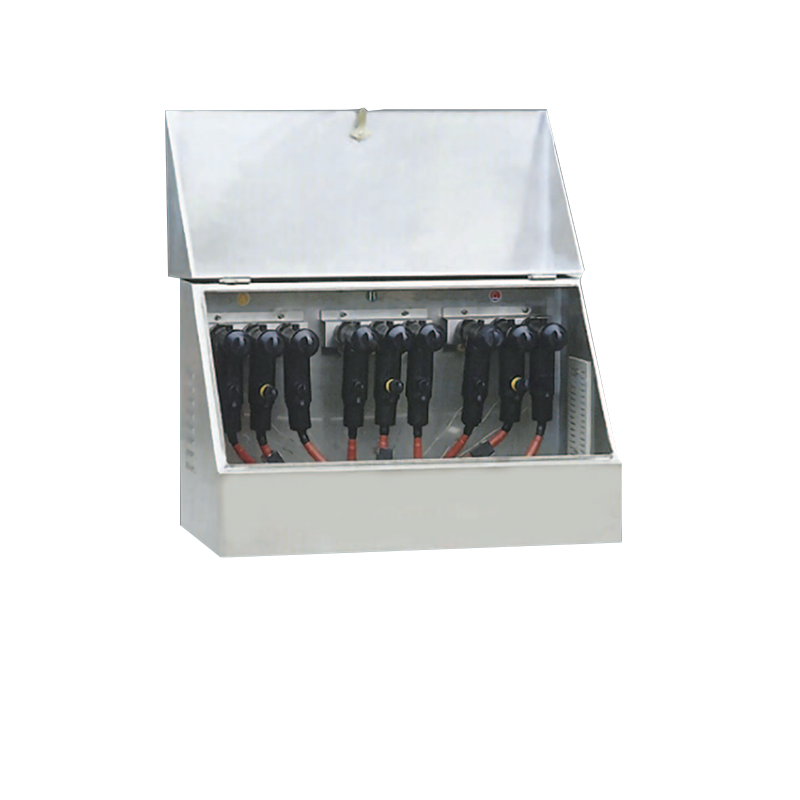

The American-style cable distribution box produced by our company is widely used in the cable engineering equipment in the cable distribution network system for its excellent performance, standardized design, and beautiful appearance. It is widely used in major industrial parks, residential areas, and urban population Various places such as dense areas, commercial centers and high-rise buildings are generally recognized. It is mainly characterized by one-way door opening and horizontal multi-pass busbars, and has significant advantages such as small width, flexible combination, full insulation, and full sealing. According to the rated current, it can generally be divided into two types: 600A main circuit and 200A branch circuit. The 600A main circuit adopts screw-in bolt connection, and the 200A branch circuit adopts plug-in connection and can be plugged in under load.

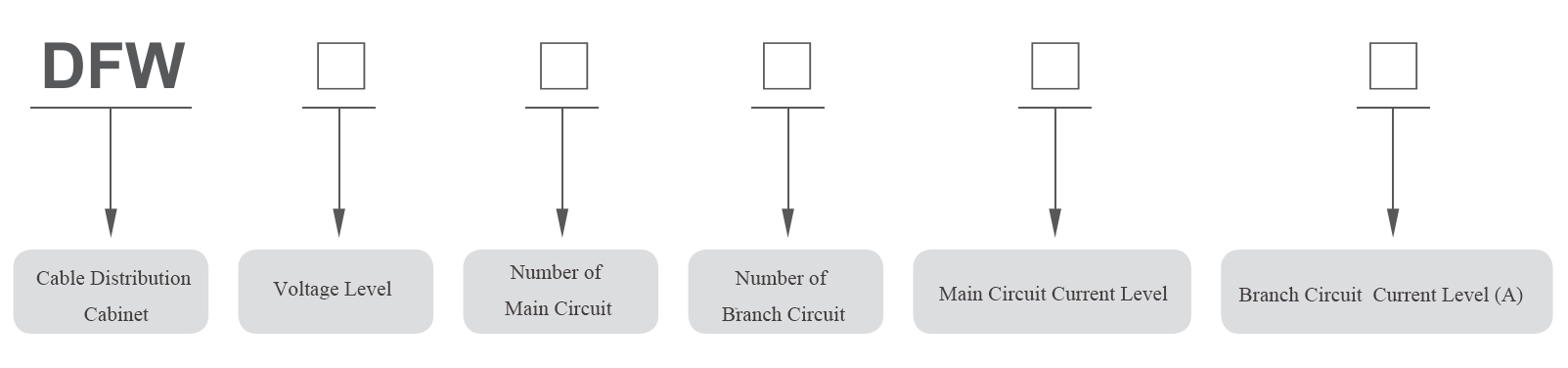

Item Meaning:

Application Condition:

• Ambient Temperature: -30℃– 40℃/ -22℉–104℉
• Wind Speed: ≤34m/s (≤700Pa)
• Relative Humidity: daily average≤95%； monthly average≤95%
• Earthquake Intensity: horizontal acceleration ≤ 0.4m/s², vertical acceleration ≤0.15m/s²
• Inclination：≤3°
• Installation Environment: no corrosive and flammable gas, no steam, no violent vibration
• Notice: please contact us if the application environment is beyond above range.

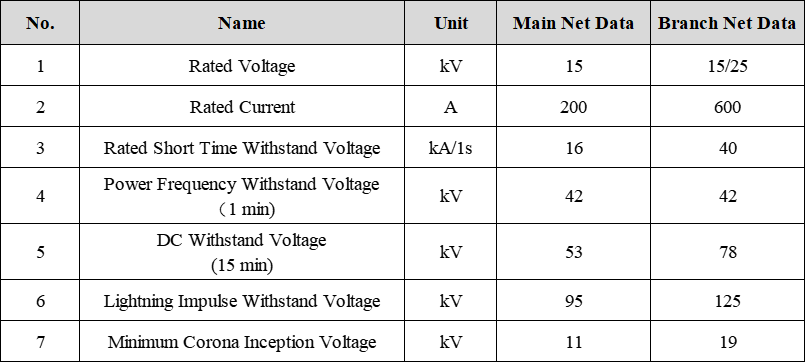

Technical Parameters:
