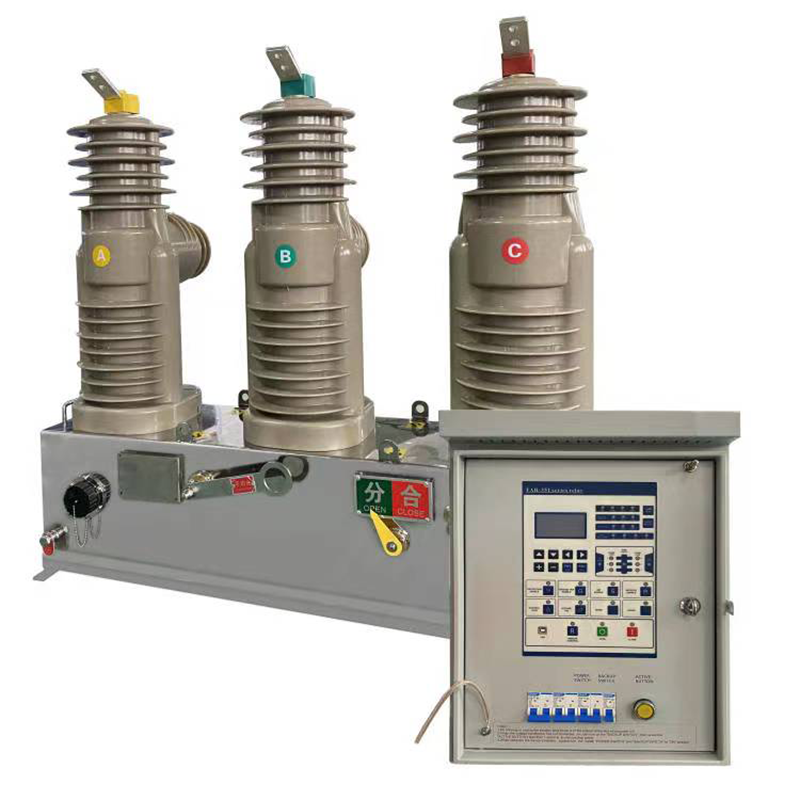

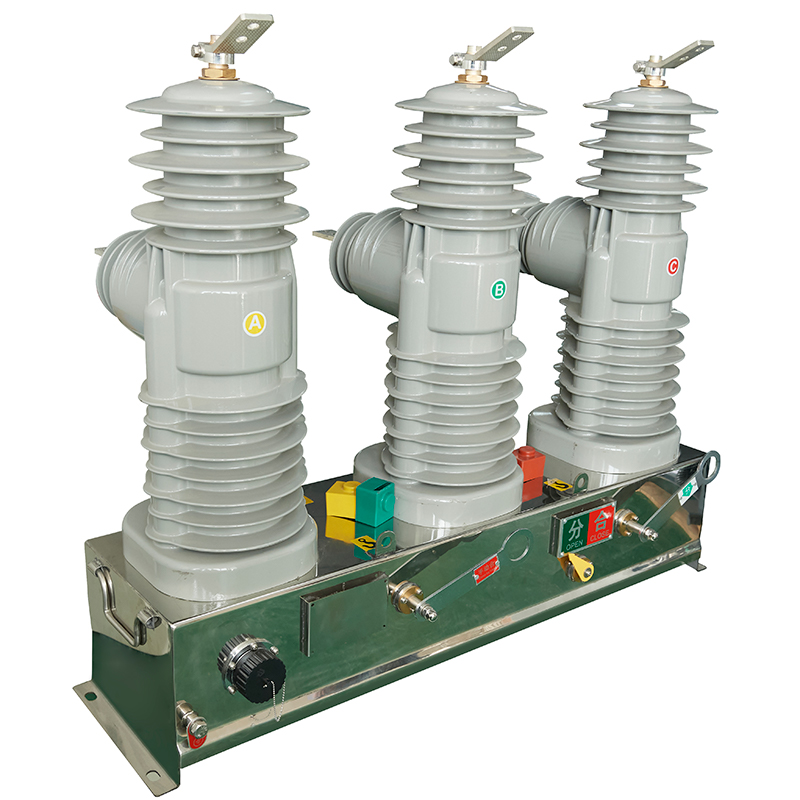

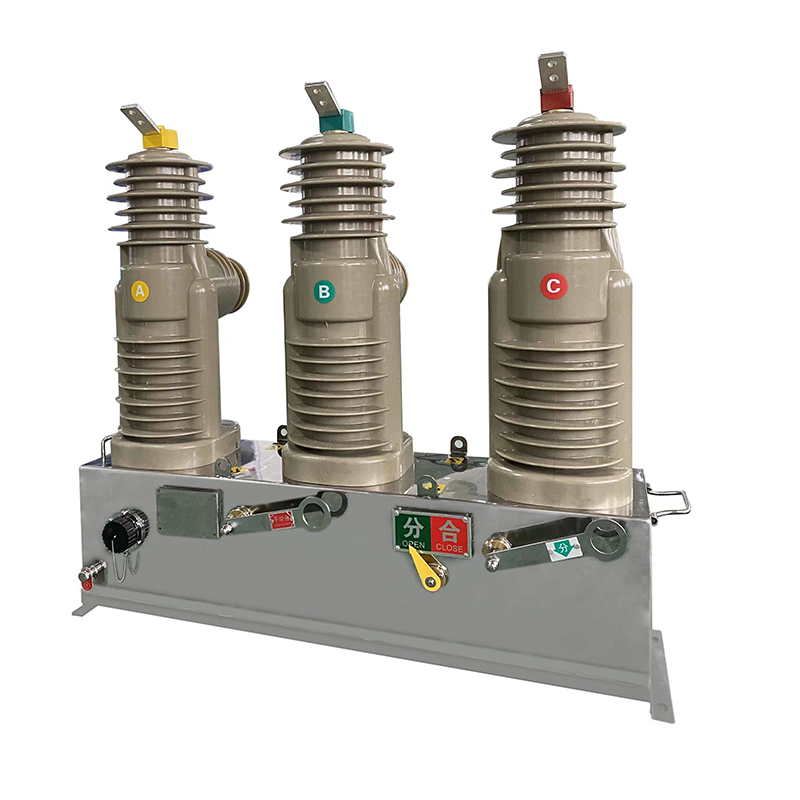

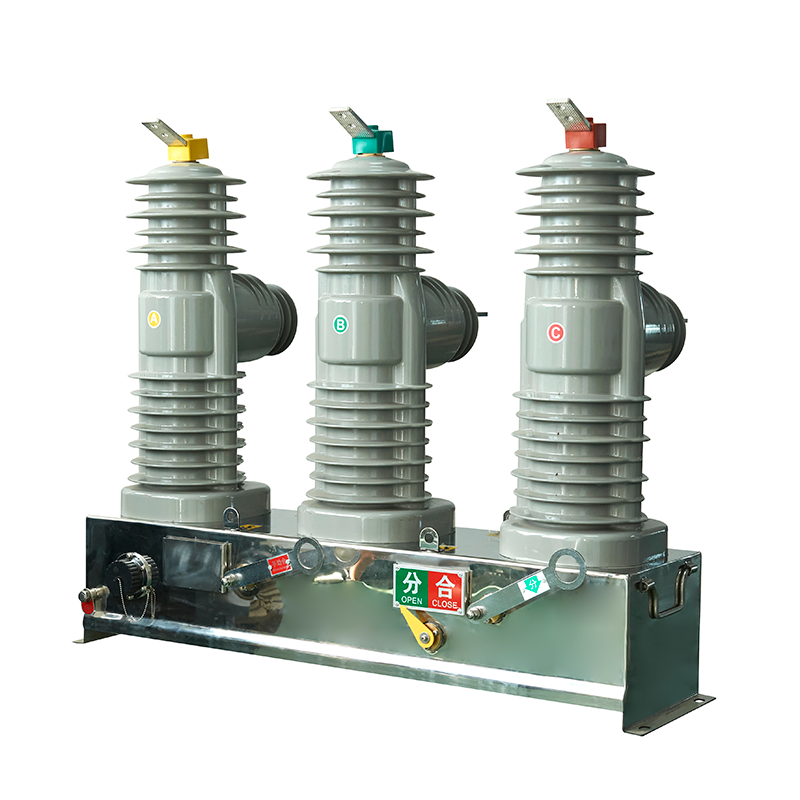

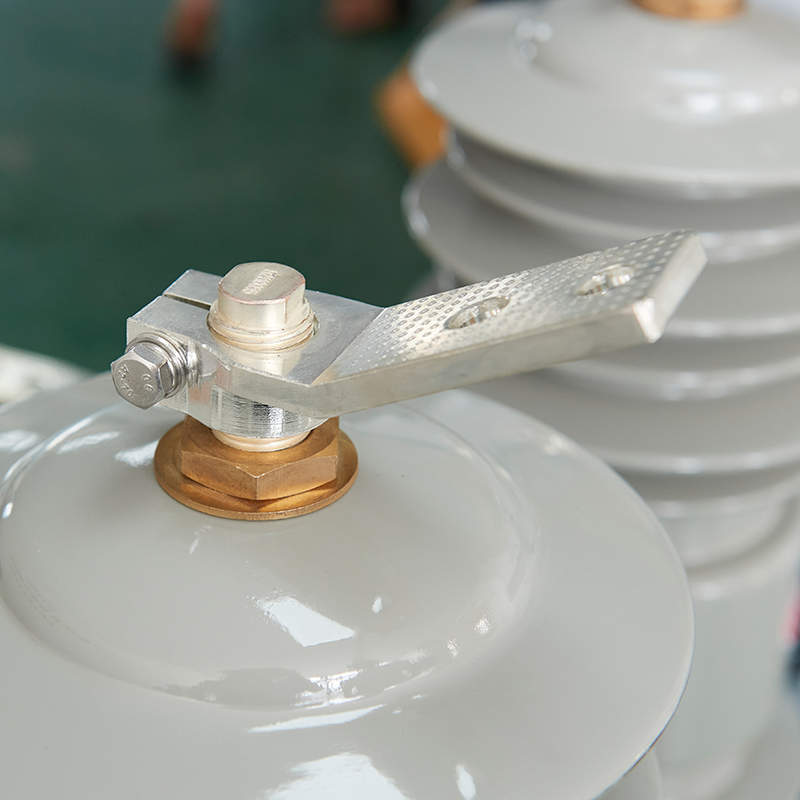

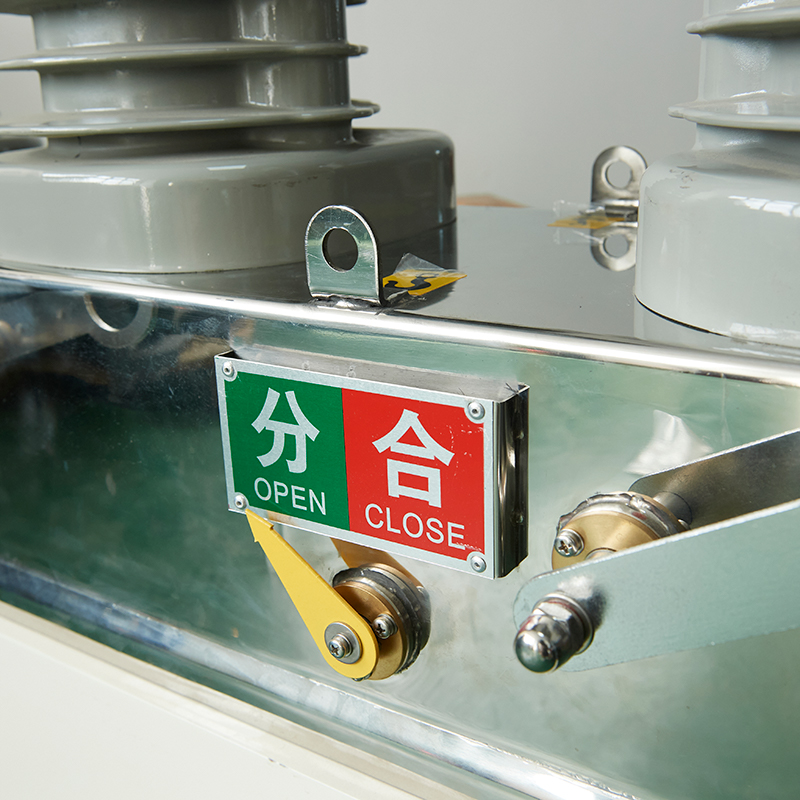

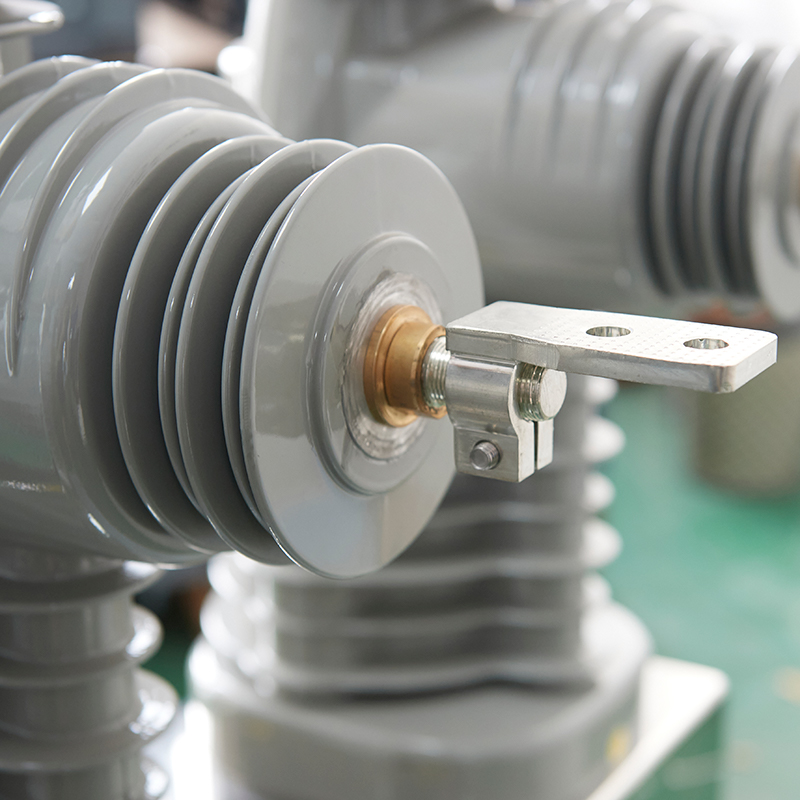

BZX32-24MT/630-60 series outdoor pole-mounted permanent magnet vacuum circuit breaker is a new generation circuit breaker adopting YCD series permanent magnet mechanism. It is an outdoor power distribution equipment with rated voltage 24KV and three-phase AC 60HZ. , to close the load current, overload current and short-circuit current in the power system, suitable for protection and control in urban and rural power grids, and more suitable for places with frequent operations.

sales@byyouele.com Inquiry Now
Product Introduction

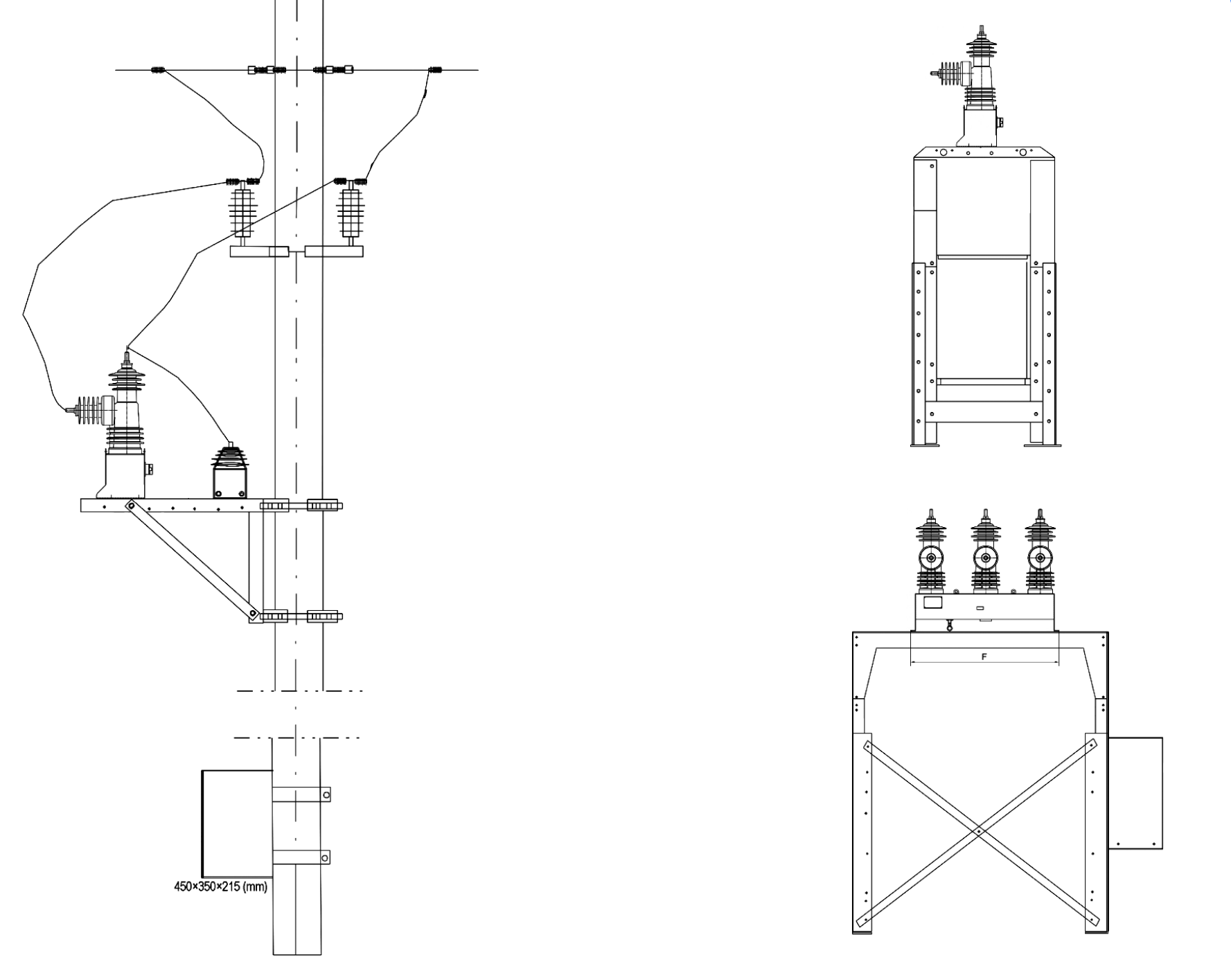

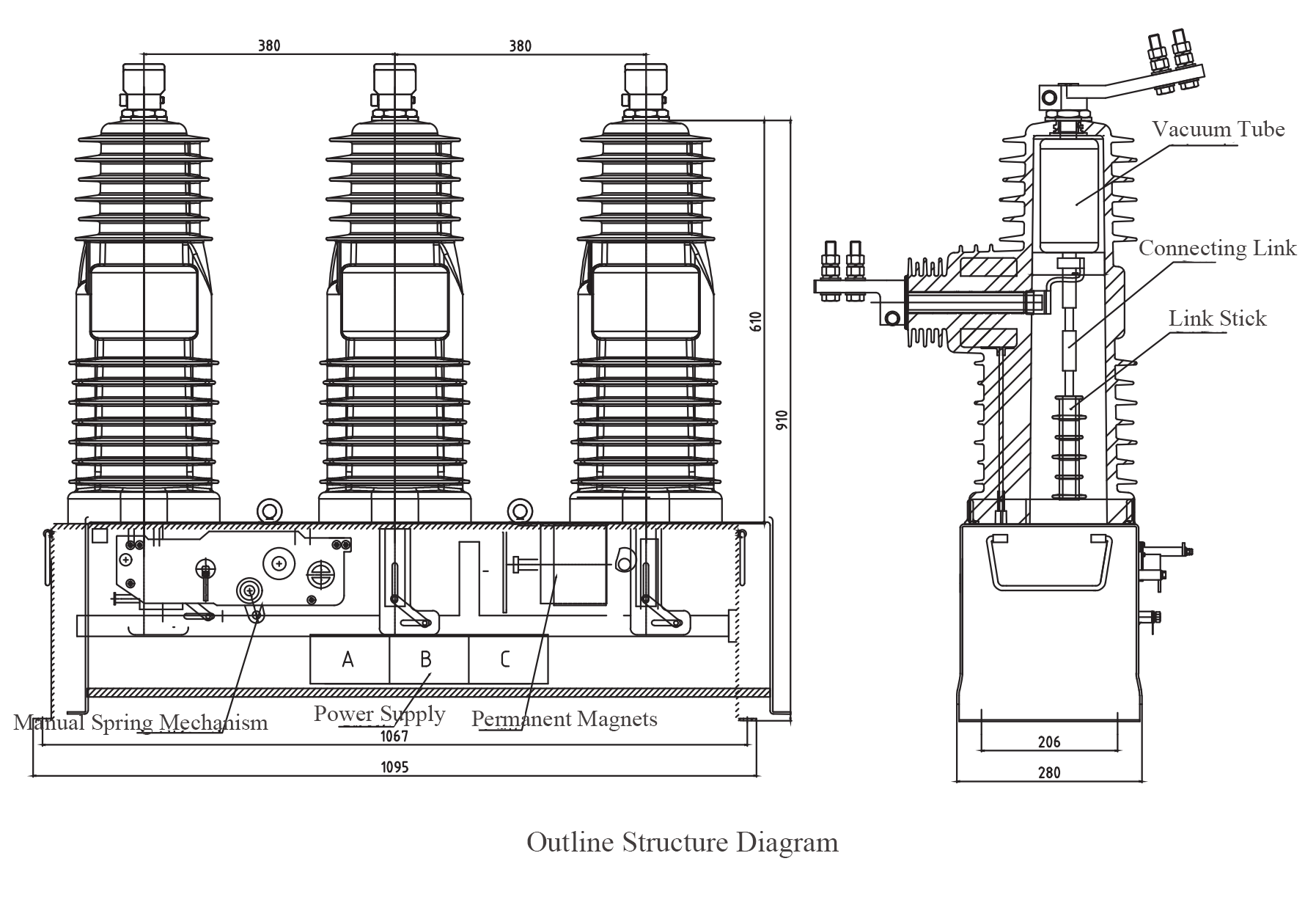

Drawing And Size

Product Usage

BZX32-24MT/630-60 series outdoor pole-mounted permanent magnet vacuum circuit breaker is a new generation circuit breaker adopting YCD series permanent magnet mechanism. It is an outdoor power distribution equipment with rated voltage 24KV and three-phase AC 60HZ. , to close the load current, overload current and short-circuit current in the power system, suitable for protection and control in urban and rural power grids, and more suitable for places with frequent operations.

The independently researched and developed BZX32-24MT/630-25 series outdoor pole-mounted permanent magnet vacuum circuit breakers meet the national standards GB1984-2003, GB3111-1997, GB11022-1999L-99 AC high circuit breakers and technical conditions and standards. Long service life, reliable breaking and maintenance-free, etc., used in conjunction with intelligent permanent magnet controllers,

As a ring network line segment, automatic detection, isolation and alarm of branch line faults, monitoring line operation with the function of automatically restoring non-fault power supply, switch configuration measurement, protection, control and communication function modules, to meet the requirements of distribution automation.

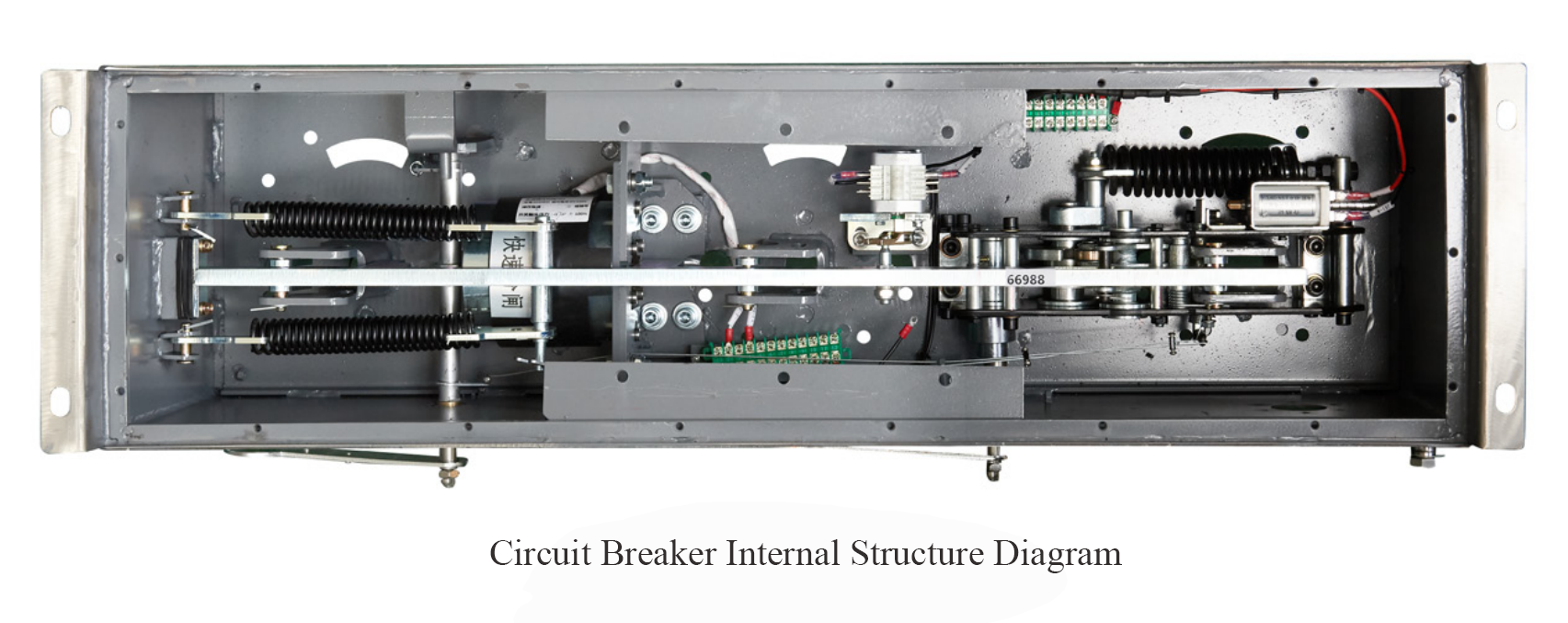

Structure And Working Principle:

BZX32-40.5M outdoor high-voltage permanent magnet vacuum circuit breaker is mainly composed of solid-sealed poles, current transformers, permanent magnet operating mechanisms and boxes. This type of circuit breaker is designed for miniaturization. At the same time, it is equipped with a manual emergency opening device. Current transformers can be selected according to user needs.

The control of BZX32.45.5M outdoor high-voltage permanent magnet vacuum circuit breaker is completed by the matching intelligent control unit. The opening and closing operation of the switch can be realized locally, and it can also be operated by remote control through the communication interface. Other information of the circuit breaker can also be transmitted to the control center, and the communication channel can choose cable, optical fiber, GPRS/CDMA, GSM, etc.

The intelligent control unit is installed close to the circuit breaker, and is connected with the circuit breaker through a control cable. The power supply of the intelligent control unit is divided into main and backup power supply, the main power supply is AC or DC 22OV, which is powered by capacitive type; the backup power supply is provided by the battery (installed in the intelligent control unit box). When the main power supply is working normally, the backup power is charged by the main power; when the main power is lost, the backup power supplies power, and the control of the circuit breaker and other operations in the control unit can still be completed. The backup power (at full load) can maintain the whole machine not less than 48 Love is work.

There is a manual emergency opening handle in the operating mechanism of the circuit breaker, which is used for emergency opening operation when the control system or power supply fails.

Working Principle And Process:

  • Arc extinguishing principle: BZX32-24M outdoor high-voltage permanent magnet vacuum circuit breaker adopts vacuum interrupter, uses vacuum as arc extinguishing and insulation medium, and has a very high degree of vacuum. When the dynamic and static contacts are charged and opened under the action of the operating mechanism, a vacuum arc will be generated between the contacts. At the same time, due to the special structure of the contacts, an appropriate longitudinal magnetic field will also be generated in the gap between the contacts. Promote the vacuum arc to maintain a diffusion type, and make the arc evenly distributed on the surface of the contact to burn, maintain a low arc voltage, and when the current naturally crosses zero, the residual ions, electrons and metal vapor can be eliminated within a time of microseconds. Composite or condensed on the surface of the contact and the shield, the dielectric strength of the arc extinguishing fracture is quickly restored, so that the arc is extinguished and completely broken. Due to the use of the longitudinal magnetic field to control the vacuum arc, the vacuum interrupter has a strong and stable breaking current capability.
  • Energy storage: BZX32-24M outdoor high-voltage permanent magnet vacuum circuit breaker’s opening and closing energy is stored in high-performance capacitors, and the capacitors are installed in the intelligent controller unit box. The energy is provided by the instantaneous discharge of the capacitor when opening and closing. The capacitor charging energy is provided by the main power supply or backup power supply of the control unit, the charging time is less than 10s, and the capacitor voltage error is ≤ 1V.
  • Closing operation: Locally press the closing button on the intelligent control unit, or remotely control the closing operation to excite the closing coil of the operating mechanism, so that the iron core drives the moving contact of the circuit breaker to close at a specified speed. When it is judged that the circuit breaker is in the closing position, the control circuit will automatically disconnect the power supply of the closing coil. At this time, the iron core is kept on the closing side due to the action of the permanent magnet. The reaction force of the contact spring of the circuit breaker, and also has the self-holding force of the platform gate, so that the circuit breaker can be reliably maintained at the closing position.
  • Separate operation: Press the opening button on the intelligent control unit locally, or through the remote control opening operation, to excite the opening coil of the operating mechanism, and to overcome the self-holding force of the permanent magnet on the closing side and at the same time make the opening spring Pull the iron core to drive the moving contact of the circuit breaker to open at the specified speed. When it is judged that the circuit breaker is in the open position, the control circuit will automatically disconnect the power supply of the opening line. At this time, the iron core is out of the opening spring hoop. The action of the force is kept on the opening side, so that the circuit analyzer can be reliably kept in the opening position.
  • Manual emergency opening operation: When the circuit breaker is in the closing position, use an insulating operating rod to hook the handle of the circuit breaker to manually break down the operating handle, and pull it downwards, and the circuit breaker can be opened after the circuit breaker is opened, and there is still a certain H. The opening speed can ensure that the circuit breaker can reliably break the rated load current.



Product Feature:

1.The circuit breaker adopts a new miniaturization design, adopts a fully enclosed structure, and has a unique packaging design for the arc extinguishing chamber, which has good sealing performance and helps to improve moisture-proof and anti-condensation performance, and is suitable for use in high-temperature and humid areas.

2.The breaking performance of the circuit breaker is stable and reliable, and has the characteristics of no combustion and explosion hazards, safety, maintenance-free, small size, light weight, and long service life.

3.The circuit breaker is equipped with an intelligent switch controller, equipped with three-stage current protection, zero-sequence protection, reclosing, quick-break protection and other protection functions. It supports multiple communication protocols and allows multiple communication methods to form a communication network. The switch can be operated locally manually or remotely, and can also be remotely controlled through the communication network.



One-piece Solid-sealed Pole:

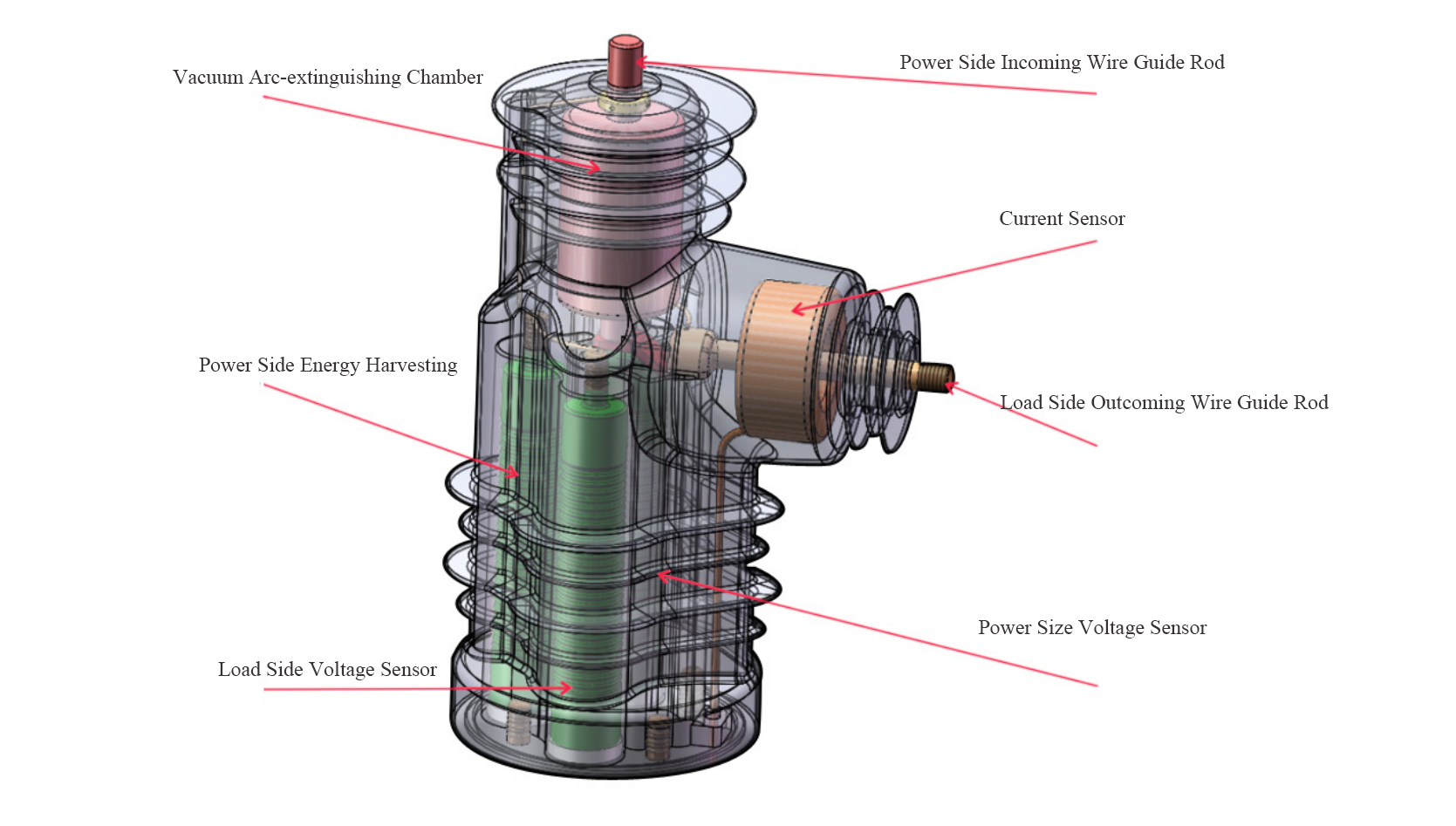

The one-piece solid-sealed pole is shown in the figure below. The pole has a built-in current sensor and a vacuum interrupter, which has an extremely low level of partial discharge. The solid-sealed pole current and voltage combined sensor is used for current and voltage sensors used in high-voltage distribution network lines and switches on the pole. The voltage level is (10-35)kv and the frequency is 60Hz.

The pole integrates the current sensor, voltage sensor, vacuum interrupter, and capacitor energy harvesting device, and adopts the APG process. The inner insulation is poured into a solid-sealed pole with epoxy resin, and the outer insulation is hung with liquid silicone, which fully realizes the high integration of primary and secondary, and meets the functional needs of power system metering, measurement and protection. Equipped with a digital module ADMU, it is extremely The column can output digital signals through the module, and the signal transmission to terminal equipment such as FTU is more stable and more accurate.

The circuit breaker equipment composed of this pole not only realizes the deep integration of primary and secondary equipment, but also realizes the miniaturization, integration and digitalization of primary equipment. The peripheral structure of the equipment is simplified, the safe operation level of the circuit breaker equipment is improved, and the operation and maintenance are more convenient.

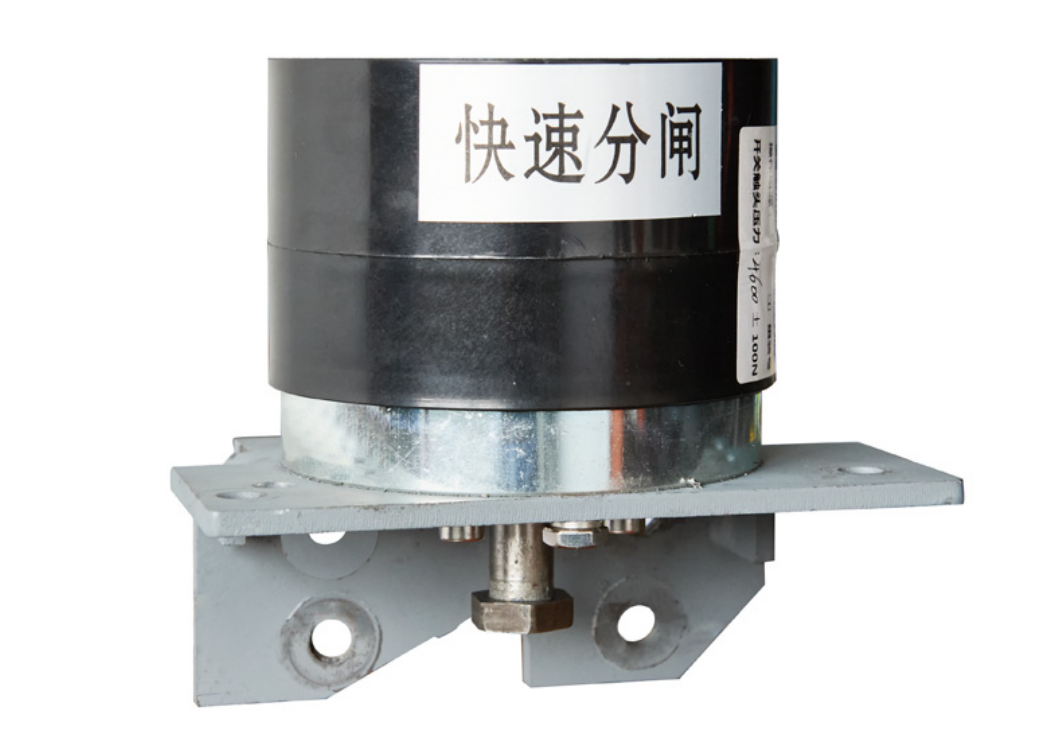

Structure And Principle Of Permanent Magnet Manipulator:

BZX32 type circuit breaker adopts a series of permanent magnet operating mechanism, which is an operating device operated by electromagnetic, held by permanent magnet and electronically controlled. Its unique feature is that the holding function of the terminal position of the mechanism is realized by the permanent magnet, which replaces the traditional mechanical tripping device. Compared with the traditional circuit breaker operating mechanism, the series permanent magnet mechanism adopts a brand-new working principle and structure, which has unique features unmatched by other technologies, and fundamentally overcomes the inherent disadvantages of other technologies: the main movement during work There is only one component, no mechanical tripping device is needed, and there are few fault sources, which has high reliability. At the same time, the permanent magnet mechanism can cooperate well with the load characteristics, improve the operation quality of the circuit breaker, and greatly improve the breaking performance of the circuit breaker. Since there are few moving parts and intermediate conversion and connection mechanisms, the dispersion and uncontrollability of the action time are greatly reduced, the reliability is high, and it can be operated frequently for a long time, and it is truly maintenance-free and less maintenance. By using an electronic or microcomputer system to monitor the opening and closing coils, the intelligent operation of the circuit breaker can be realized. At the same time, because the capacitor is used as the operating power supply, the influence of the fluctuation of the auxiliary power supply on the operating characteristics of the mechanism is avoided.

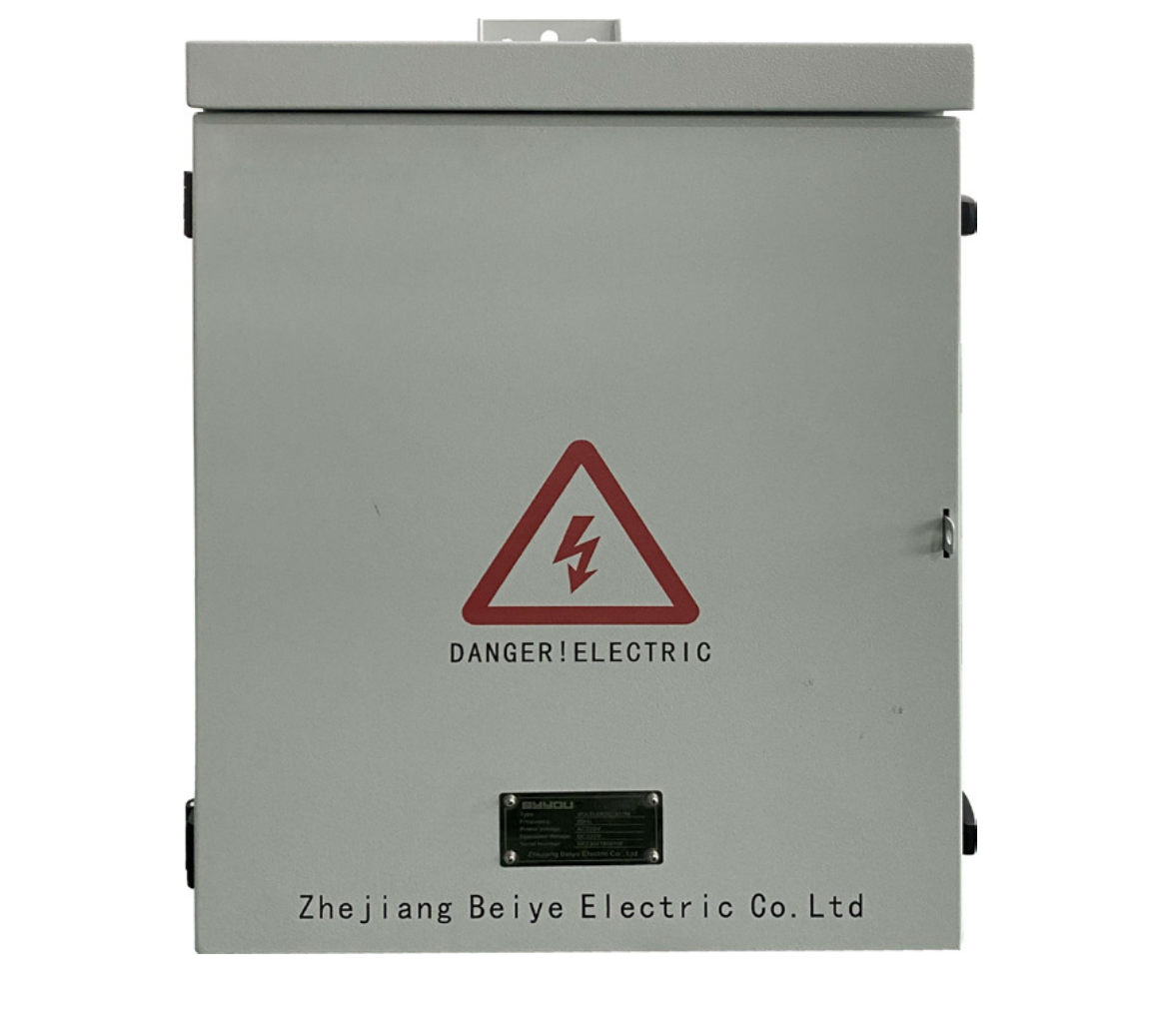

Intelligent Controller:

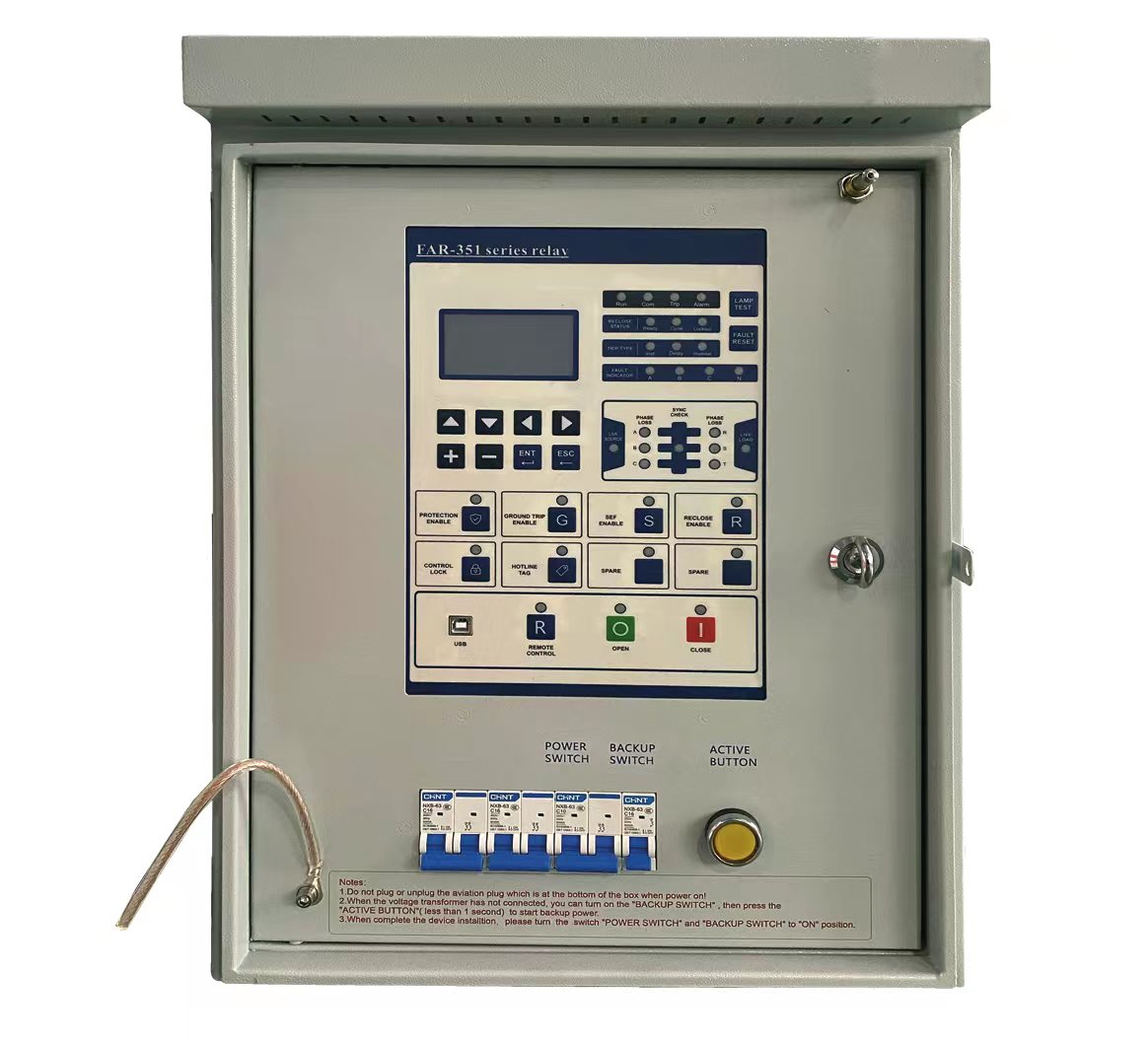

The recloser intelligent controller is a medium voltage overhead line grid monitoring device, which can be combined with a vacuum circuit breaker to realize automatic reclosure, measurement monitoring, fault analysis and event recording. It provides a safe grid for cutting off line faults, automatic restoration of operation and power automation.

The controller is suitable for use in outdoor switchgears up to and including 40.5kV, including: vacuum circuit breakers, oil circuit breakers and gas circuit breakers.

The controller is an outdoor automatic control device integrating line protection, control, measurement and monitoring of voltage and current signals.

The controller is an automatic management unit of 1-way 1-way/ring/dual power supply with all voltage, current signals and all functions.

Smart Controller Support :

Wireless (GSM/GPRS/CDMA), Ethernet, WIFI, optical fiber, power line carrier, RS232/485, RJ45 and other communication forms, and can be connected to other station equipment (such as TTU, FTU, DTU, etc.).

Main Technical Parameters:
